HHC71F Series miniature electromagnetic relays are high-current relays for power-interface switching. The series uses AC or DC coil options and silver-alloy contacts, with item selection based on one- or two-pole contact structure and 80A to 120A contact ratings.
Common Parameters
| Parameter | Specification |
|---|
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 2.0W; AC 10.0VA |
| Contact Material | Silver alloy |
| Contact Resistance | 100 milliohm or less |
| Insulation Resistance | 200Mohm or higher at 500VDC |

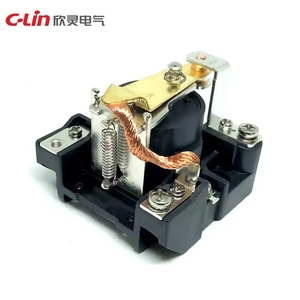

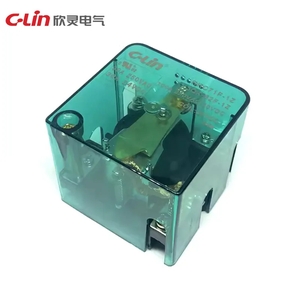

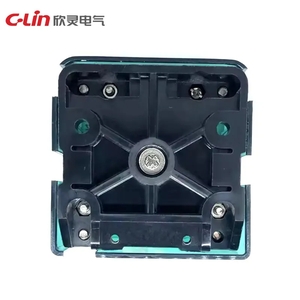

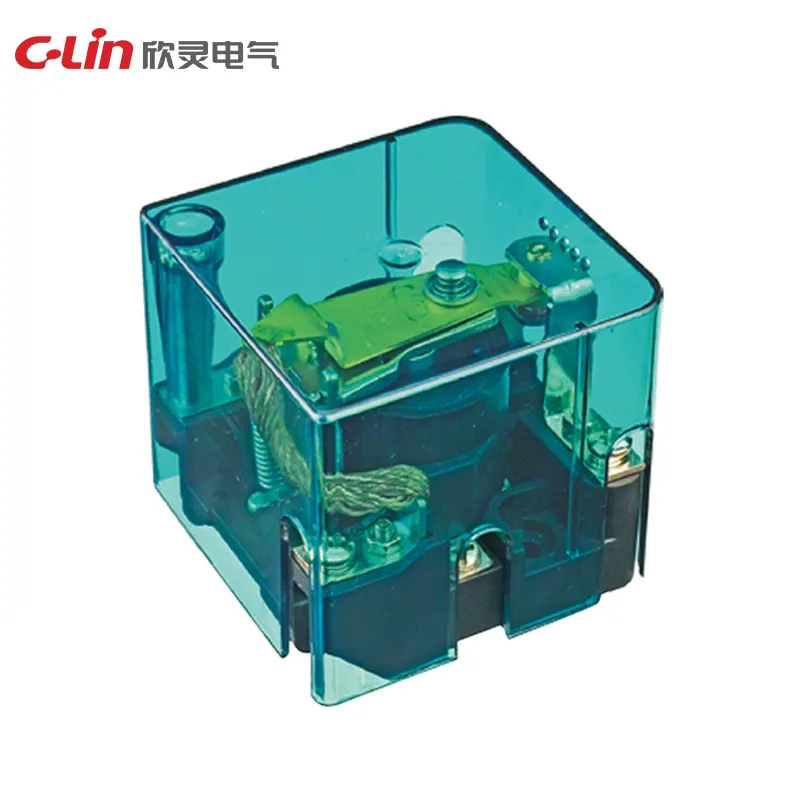

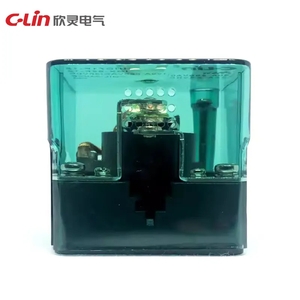

HHC71F-1Z
| Parameter | Specification |
|---|
| Contact Form | 1H, 1D or 1Z |
| Contact Load | 100A at 240VAC / 28VDC |
| Dimensions | 67 x 67 x 60.5 mm |

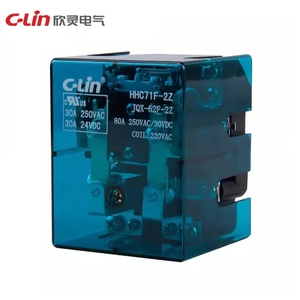

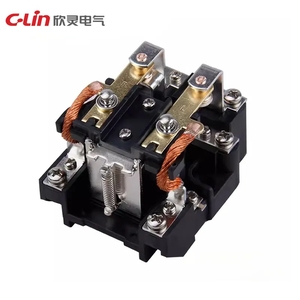

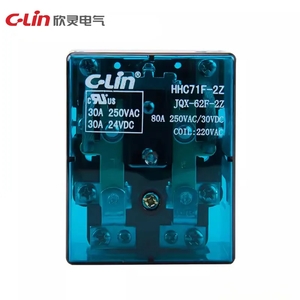

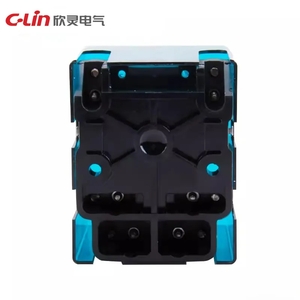

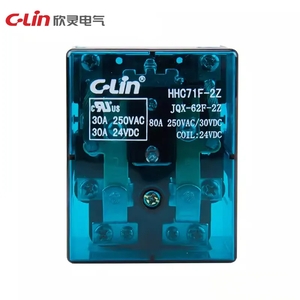

HHC71F-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z |
| Contact Load | 80A at 240VAC / 28VDC |
| Dimensions | 85 x 68 x 65 mm |

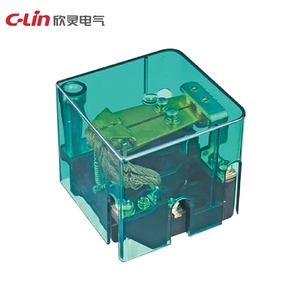

HHC71FS-1Z
| Parameter | Specification |
|---|
| Contact Form | 1H, 1D or 1Z |
| Contact Load | 120A at 240VAC / 28VDC |

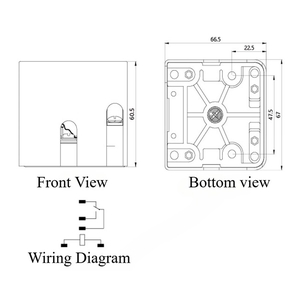

| Dimensions | 67 x 67 x 60.5 mm |
