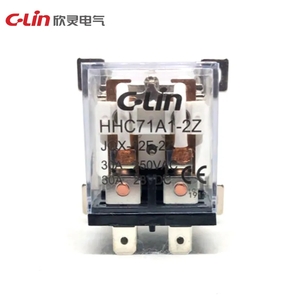

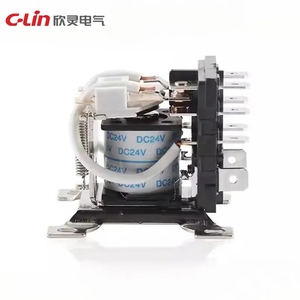

HHC71A Series miniature electromagnetic relays are higher-current plug-in relays for control and power-interface circuits. HHC71A1 and HHC71A share the coil, contact material and contact-load platform, with the main difference in relay body dimensions.
Common Parameters
| Parameter | Specification |
|---|
| Contact Form | 1H, 1D, 1Z, 2H, 2D or 2Z; 2Z provides two changeover contacts |
| Contact Load | 30A at 240VAC / 28VDC |
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 2.0W; AC 4.0VA |
| Contact Material | Silver alloy |
| Contact Resistance | 100 milliohm or less at 6VDC 1A |
| Insulation Resistance | 100Mohm or higher at 500VDC |

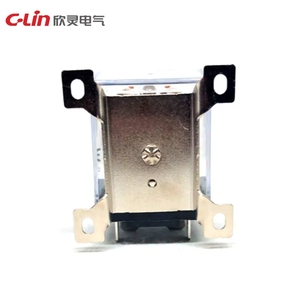

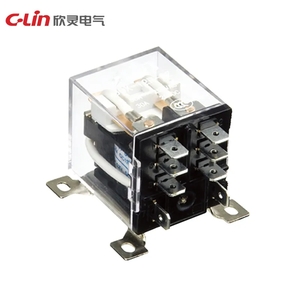

HHC71A1
| Parameter | Specification |
|---|
| Dimensions | 53 x 46 x 41.3 mm |

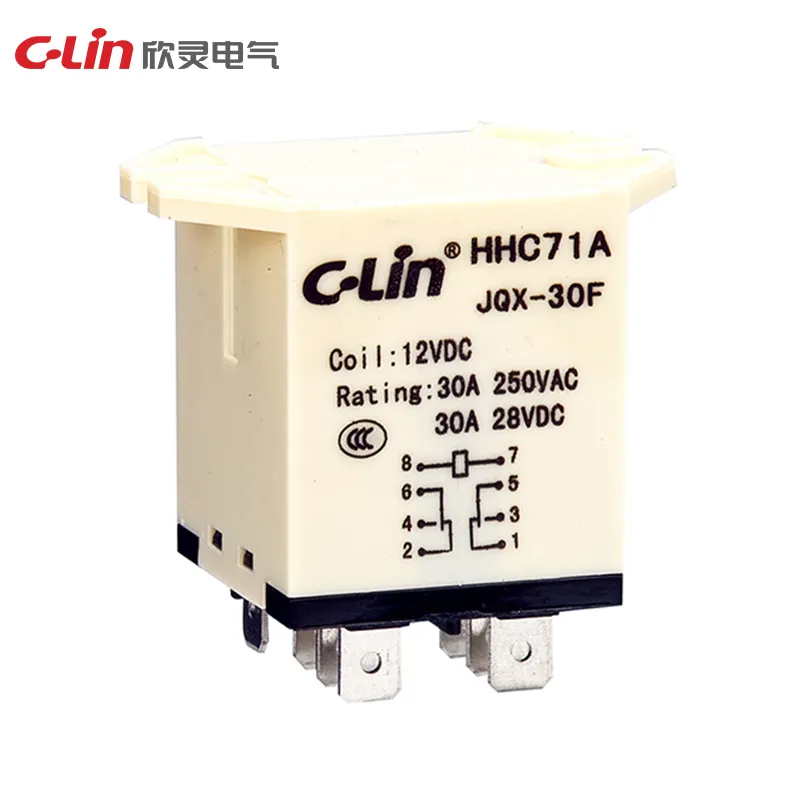

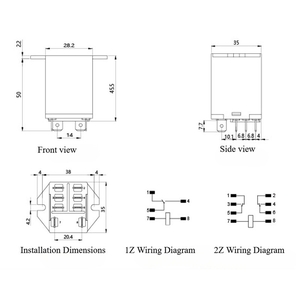

HHC71A
| Parameter | Specification |
|---|
| Dimensions | 51.5 x 35.6 x 42 mm |
