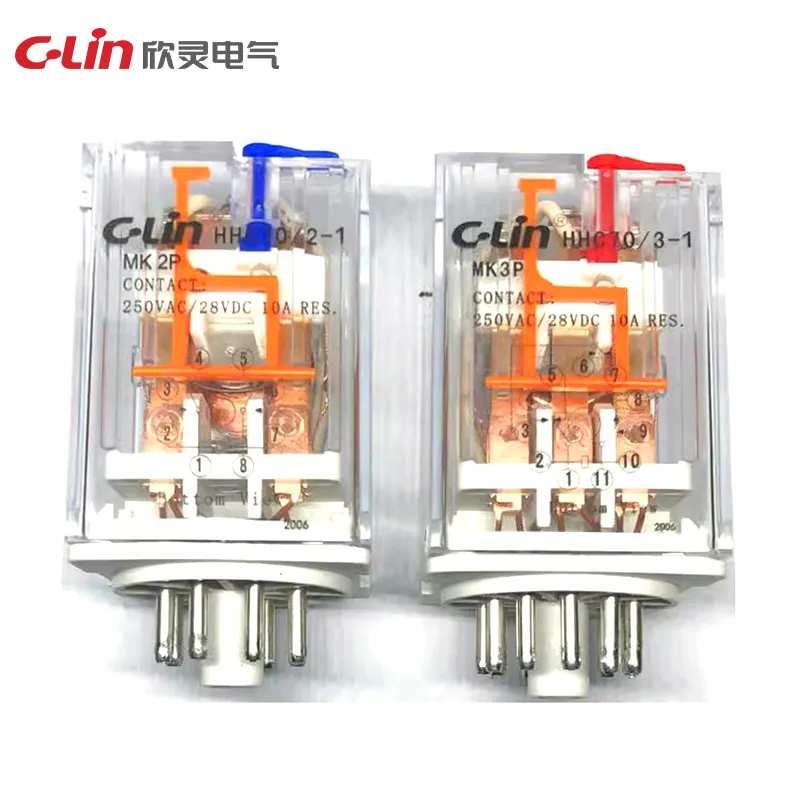

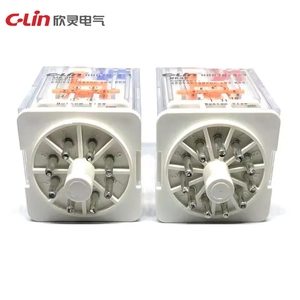

HHC70B (MK 2P) is a two-pole miniature electromagnetic relay for plug-in relay switching and interface circuits. It uses AC or DC coil options, silver-alloy contacts and a 35mm body format for control-panel installations.
| Parameter | Specification |
|---|---|
| Model | HHC70B (MK 2P) |
| Contact Form | 2H, 2D or 2Z; 2Z provides two changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC |

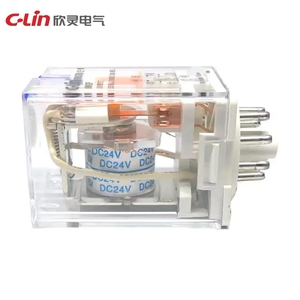

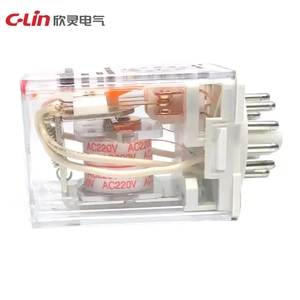

| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 1.5W or 1.8W listing; AC 2.7VA |
| Contact Resistance | 100 milliohm or less at 6VDC 1A |
| Contact Material | Silver alloy |
| Insulation Resistance | 100Mohm or higher at 500VDC |
| Dimensions | 35 x 35 x 53 mm |
