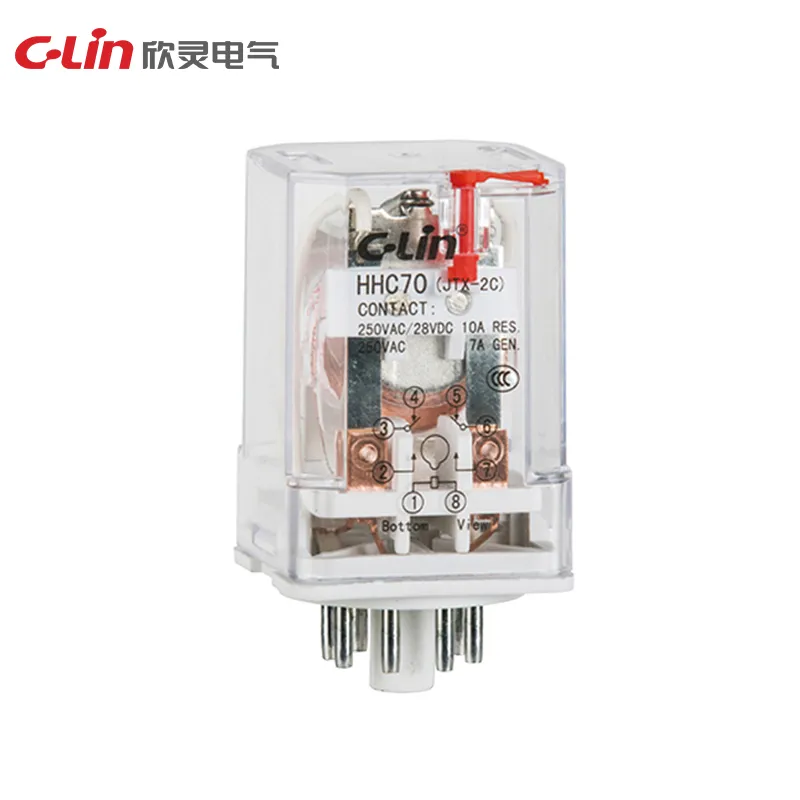

HHC70A Series miniature electromagnetic relays are plug-in control relays for switching and interface circuits that need 2-pole or 3-pole changeover contacts. The two models share the same contact rating, coil platform and body size, with the item choice based on contact count.
Common Parameters
| Parameter | Specification |
|---|
| Contact Load | 10A at 240VAC / 28VDC |
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 1.8W; AC 2.7VA |
| Contact Material | Silver alloy |
| Contact Resistance | 100 milliohm or less at 6VDC 1A |
| Insulation Resistance | 100Mohm or higher at 500VDC |

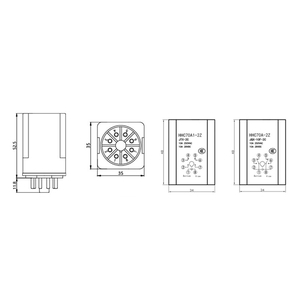

| Dimensions | 35 x 35 x 53 mm |
HHC70A-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z; 2Z provides two changeover contacts |
HHC70A-3Z
| Parameter | Specification |
|---|
| Contact Form | 3H, 3D or 3Z; 3Z provides three changeover contacts |
