HHC69K Series miniature electromagnetic relays are slim interface relays for compact control circuits. The series covers standard, higher-load and low-profile versions, with item differences mainly in contact count, contact rating, coil power and body size.
Common Parameters
| Parameter | Specification |
|---|
| Contact Material | Silver alloy |
| Contact Resistance | 100 milliohm or less |
| Insulation Resistance | 100Mohm or higher at 500VDC |
| Base Coil Voltage Range | DC5-110V or AC6-220V unless noted by item |

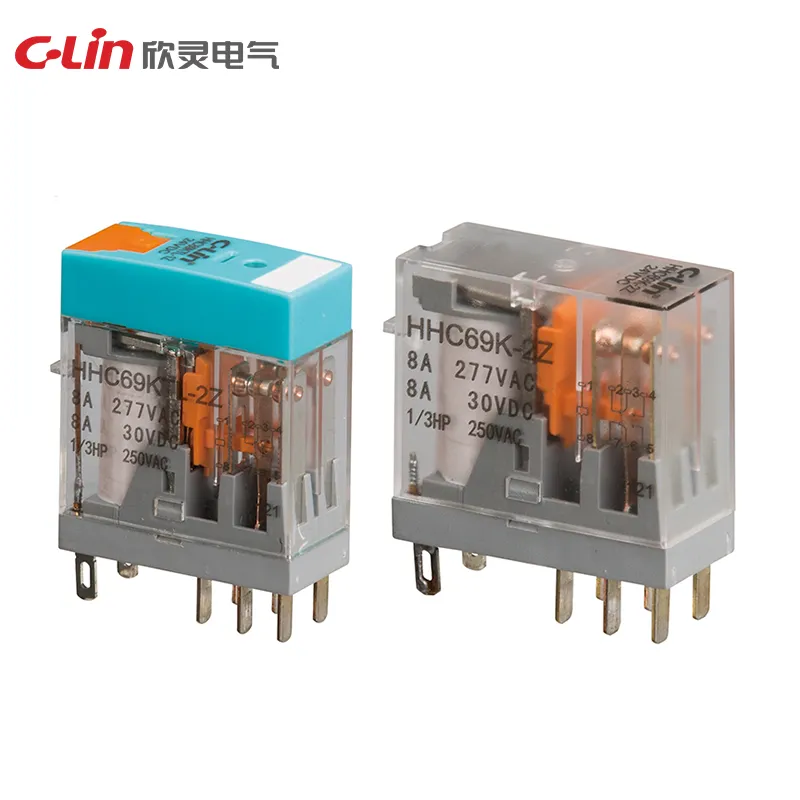

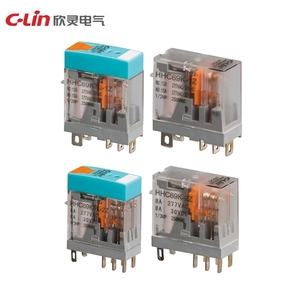

HHC69K-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z; 2Z provides two changeover contacts |
| Contact Load | 8A at 240VAC / 28VDC |
| Coil Power | DC 0.53W; AC 0.8-1.0VA |
| Dimensions | 34 x 12.7 x 28.8 mm standard; 27 x 12.7 x 28.8 mm low profile |

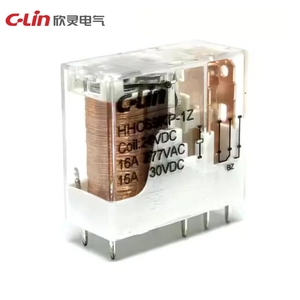

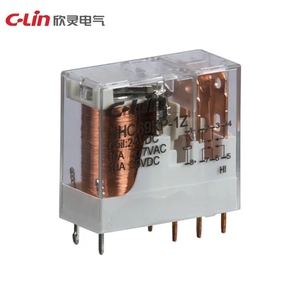

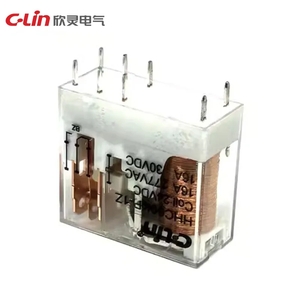

HHC69KP-1Z
| Parameter | Specification |
|---|
| Contact Form | 1H or 1Z |
| Contact Load | 16A at 277VAC / 30VDC |
| Coil Power | DC 0.53W; AC 1.4VA |
| Dimensions | 29 x 12.7 x 27.5 mm |

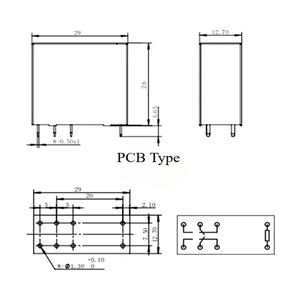

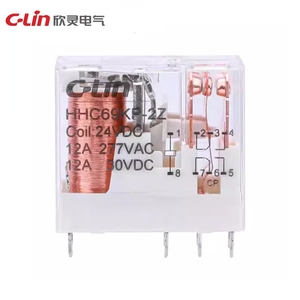

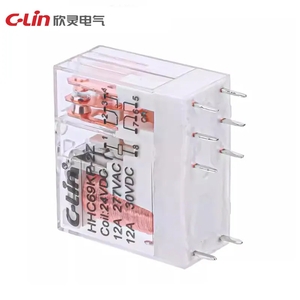

HHC69KP-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H or 2Z |
| Contact Load | NO 12A and NC 10A at 277VAC / 30VDC; 12A listing also provided |
| Coil Power | DC 0.53W; AC 1.4VA |
| Dimensions | 29 x 12.7 x 27.5 mm |

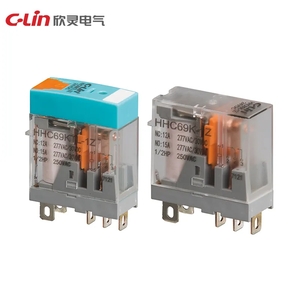

HHC69KTL-1Z
| Parameter | Specification |
|---|
| Contact Form | 1H, 1D or 1Z |
| Contact Load | NO 15A and NC 12A at 240VAC / 28VDC |
| Coil Voltage | DC5-110V or AC6-380V |
| Coil Power | DC 0.53W; AC 1.0VA |
| Dimensions | 34 x 12.7 x 28.8 mm standard; 27 x 12.7 x 28.8 mm low profile |
