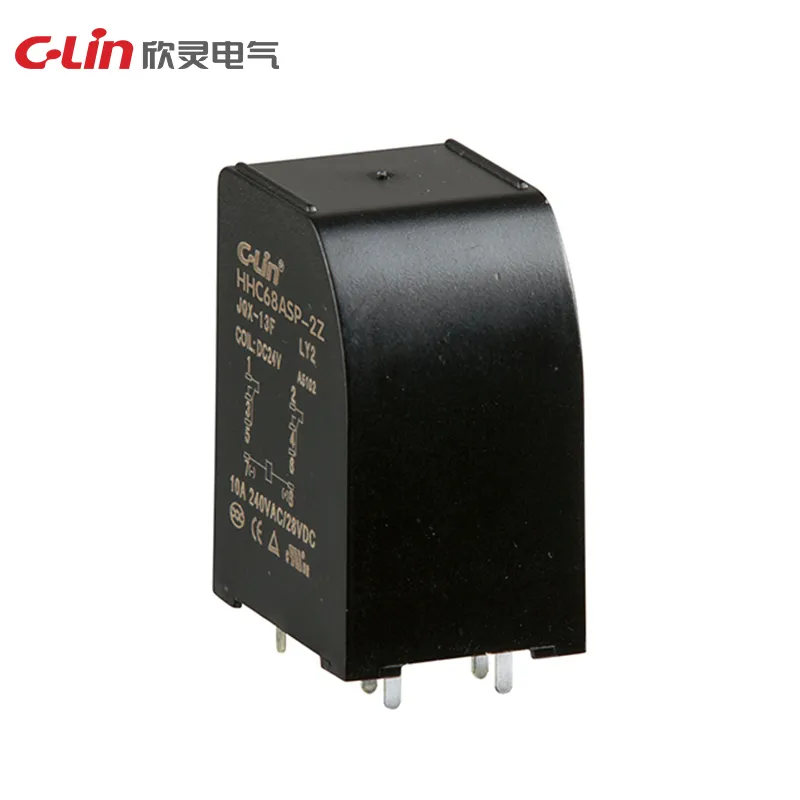

HHC68ASP is a miniature electromagnetic relay for compact two-pole switching and control-interface circuits. It supports AC or DC coil selections and silver-alloy contacts in a 27.8mm wide relay body.
| Parameter | Specification |
|---|---|
| Model | HHC68ASP |
| Contact Form | 2H, 2D or 2Z; 2Z provides two normally open/normally closed changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC; 12A contact-load listing also provided |
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 0.9W; AC 1.2VA |
| Contact Resistance | 100 milliohm or less at 6VDC 1A |
| Contact Material | Silver alloy |
| Insulation Resistance | 1000Mohm |
| Dimensions | 27.8 x 21.7 x 38.1 mm |
