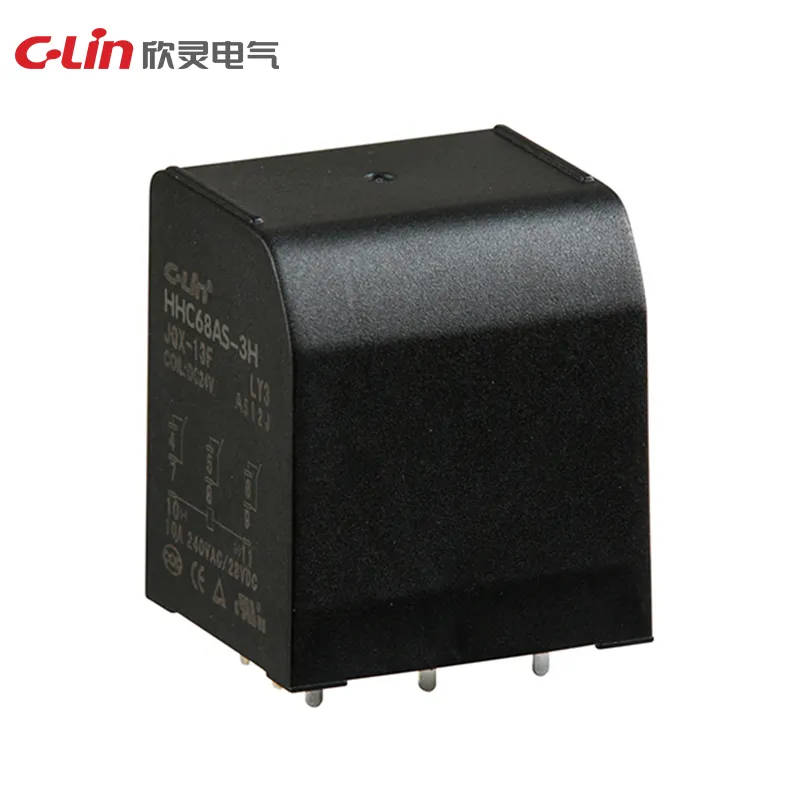

HHC68AS-3H is a miniature electromagnetic relay for relay-interface circuits that need three-pole contact configurations in a compact plug-in style body. It supports AC or DC coil selections and silver-alloy contacts for general control switching.
| Parameter | Specification |
|---|---|
| Model | HHC68AS-3H |
| Contact Form | 3H, 3D or 3Z; 3Z provides three normally open/normally closed changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC; 12A contact-load listing also provided |
| Coil Voltage | DC6-220V or AC6-380V |
| Coil Power | DC 0.9W; AC 1.2VA |
| Contact Resistance | 100 milliohm or less at 6VDC 1A |
| Contact Material | Silver alloy |
| Insulation Resistance | 1000Mohm |
| Dimensions | 31.8 x 28 x 36.8 mm |
