HHC68A Series miniature electromagnetic relays are plug-in relays for control-panel switching and interface circuits. The models share silver-alloy contacts and broad AC/DC coil voltage options, while the item selection is mainly based on contact-pole count, coil power and relay body width.
Common Parameters
| Parameter | Specification |
|---|
| Coil Voltage | DC6-220V or AC6-380V |
| Contact Material | Silver alloy |
| Contact Resistance | 100 milliohm or less |
| Insulation Resistance | 100Mohm or higher at 500VDC |

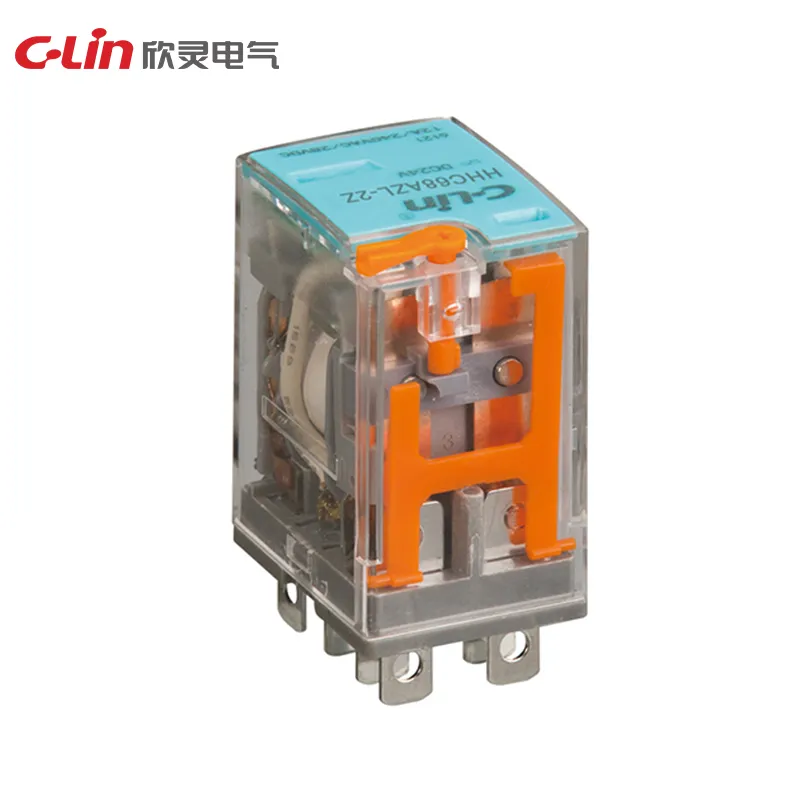

HH68AZL-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z; 2Z provides two changeover contacts |
| Contact Load | 12A at 240VAC / 28VDC listing |
| Coil Power | DC 0.9W; AC 1.2VA |

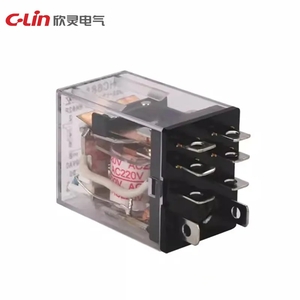

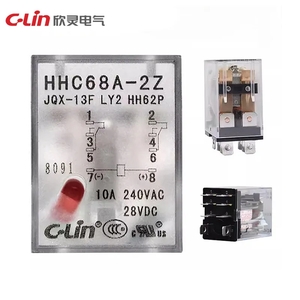

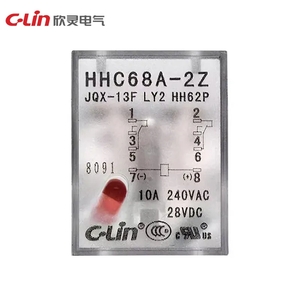

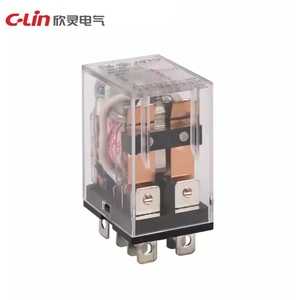

HHC68A-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z; 2Z provides two changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC |
| Coil Power | DC 0.9W; AC 1.2VA |
| Dimensions | 27.3 x 21 x 35 mm |

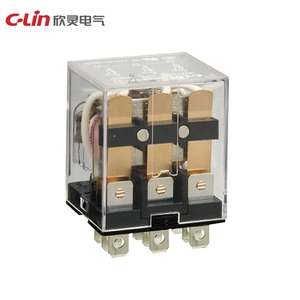

HHC68A-3Z
| Parameter | Specification |
|---|
| Contact Form | 3H, 3D or 3Z; 3Z provides three changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC |
| Coil Power | DC 1.5W; AC 2.5VA |
| Dimensions | 27.3 x 31 x 35 mm |

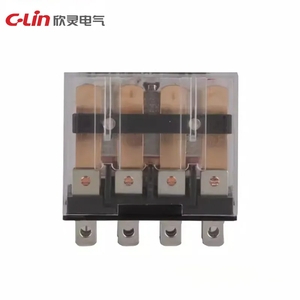

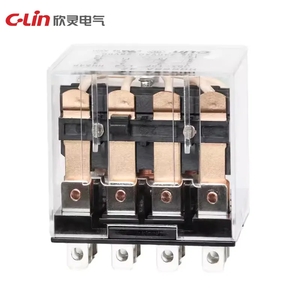

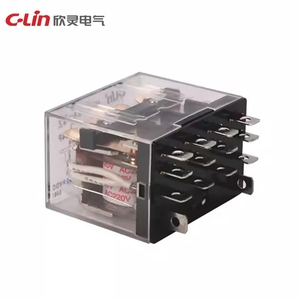

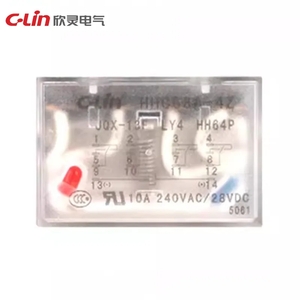

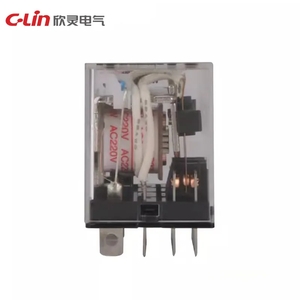

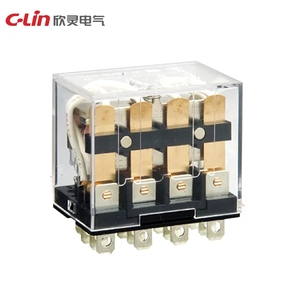

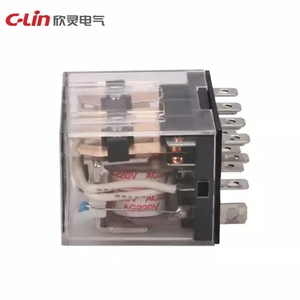

HHC68A-4Z
| Parameter | Specification |
|---|
| Contact Form | 4H, 4D or 4Z; 4Z provides four changeover contacts |
| Contact Load | 10A at 240VAC / 28VDC |
| Coil Power | DC 1.5W; AC 3.0VA |
| Dimensions | 27.3 x 41 x 35 mm |

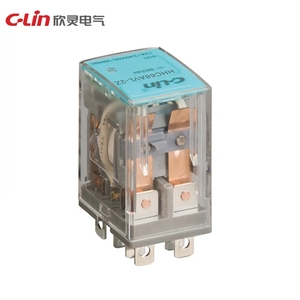

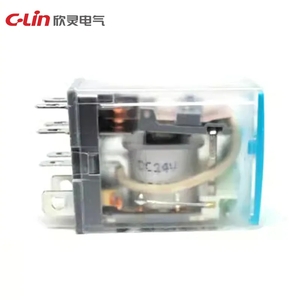

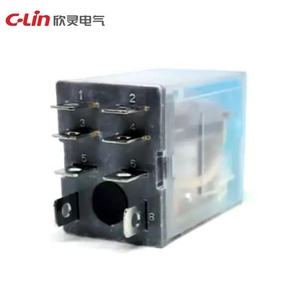

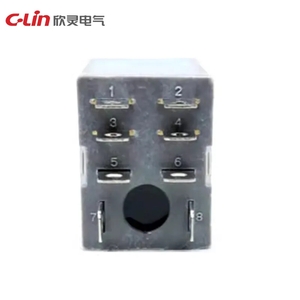

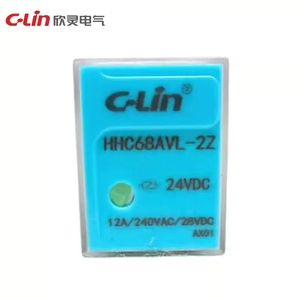

HHC68AVL-2Z
| Parameter | Specification |
|---|
| Contact Form | 2H, 2D or 2Z |
| Coil Power | DC 0.9W; AC 1.2VA |
| Dimensions | 27.3 x 21 x 36.5 mm |
