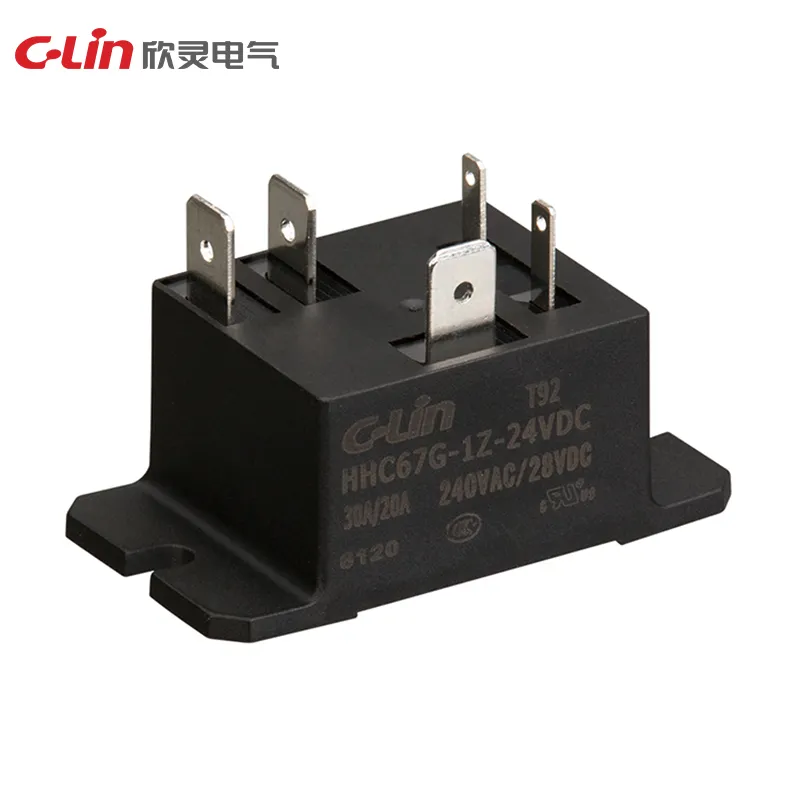

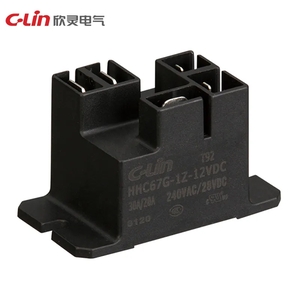

HHC67G is a miniature electromagnetic relay for higher-current control and power-interface circuits. It supports normally open, normally closed and changeover contact forms, with DC or AC coil selections and a compact body close to common T92/G8P/HF105F relay formats.
| Parameter | Specification |
|---|---|
| Model | HHC67G |
| Contact Form | 1H normally open, 1D normally closed, 1Z changeover |
| Contact Load | 30A or 40A at 240VAC / 28VDC by contact form |
| Coil Voltage | DC5-110V or AC6-220V |
| Coil Power | DC 0.93W; AC 1.5VA |
| Contact Resistance | 100 milliohm or less |
| Contact Material | Silver alloy |
| Common Compatible Formats | T92, G8P-T-F, HF105F-4 |
| Dimensions | 32.4 x 27.4 x 28.6 mm |
