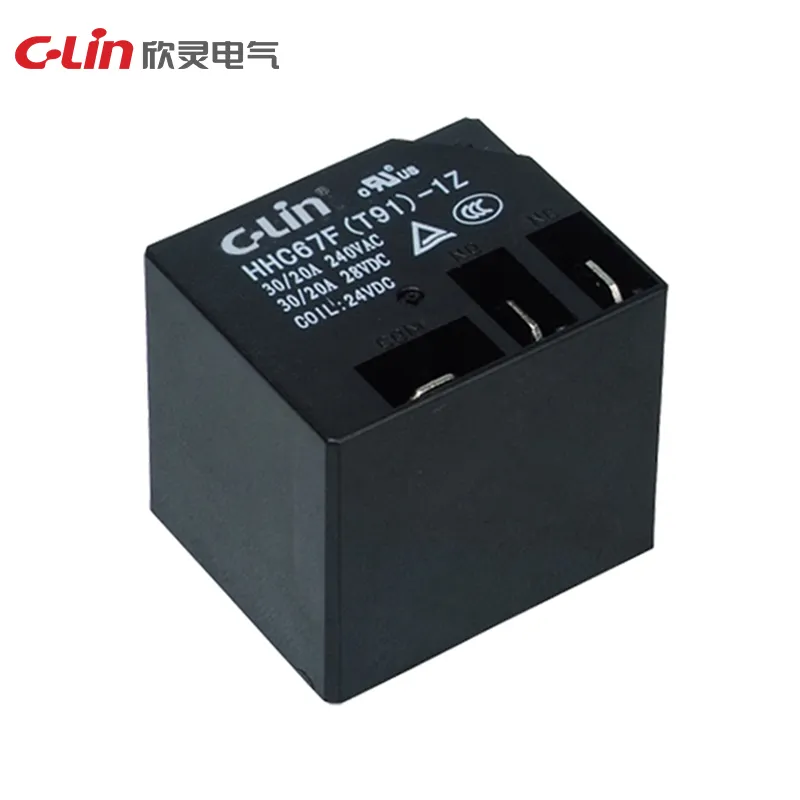

HHC67F is a miniature electromagnetic relay for higher-current switching interfaces where a compact 32mm body and AC or DC coil options are required. It supports normally open, normally closed and changeover contact forms.
| Parameter | Specification |
|---|---|
| Model | HHC67F |
| Contact Form | 1H normally open, 1D normally closed, 1Z changeover |
| Contact Load | 30A or 40A at 240VAC / 28VDC by contact form |
| Coil Voltage | DC5-110V or AC6-220V |
| Coil Power | DC 0.93W; AC 1.5VA |
| Contact Resistance | 100 milliohm or less |
| Contact Material | Silver alloy |
| Dimensions | 32 x 27 x 28.6 mm |
