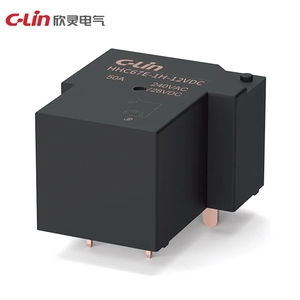

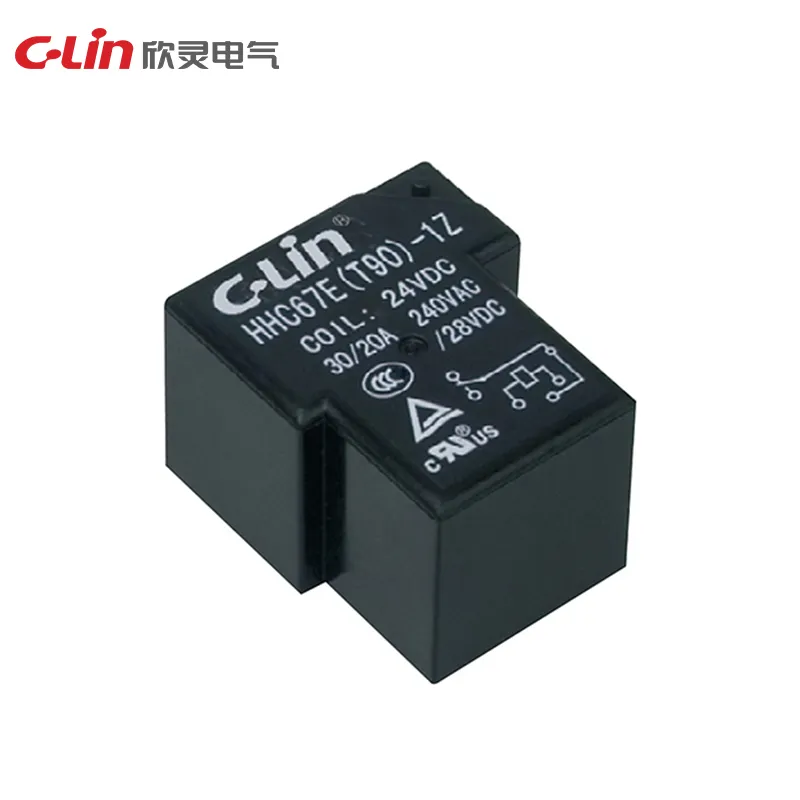

HHC67E is a high-current miniature electromagnetic relay for power-switching and interface circuits in photovoltaic, energy-storage, charging-pile and electric-vehicle equipment. It supports 1Z, 1H and 1D contact forms and contact ratings up to 50A.
| Parameter | Specification |
|---|---|
| Model | HHC67E |
| Contact Form | 1Z changeover, 1H normally open, 1D normally closed |
| Load Voltage | 250VAC / 30VDC |
| Contact Load | 30A, 40A or 50A at 240VAC / 28VDC |
| Rated Current | 50A maximum listing |
| Minimum Load | 6V / 1A |
| Contact Resistance | 100 milliohm or less |
| Contact Material | Silver copper alloy or silver alloy |
| Coil Voltage | DC5-110V, AC6-220V; DC12V and DC24V options listed |
| Action Time | 15ms or less |
| Release Time | 10ms or less |
| Switching Life | 10,000 operations at 50A / 250V |
