HHC41 Series miniature electromagnetic relays are slim interface relays for compact control circuits. The HHC41-6 1Z and HHC41-10 1Z versions share the same body size and DC coil platform, with the main difference in contact load rating.
Common Parameters
| Parameter | Specification |
|---|
| Contact Form | 1Z, one normally open/normally closed changeover contact; 1H normally open option also listed |
| Coil Voltage | Standard type DC3-24V; high-power type DC3-60V |
| Coil Power | 0.17W / 0.4W |
| Insulation Class | Class F |
| Dimensions | 28 x 5 x 18.6 mm |

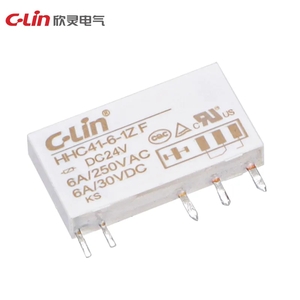

HHC41-6 1Z
| Parameter | Specification |
|---|
| Contact Load | 6A, 277VAC / 24VDC |

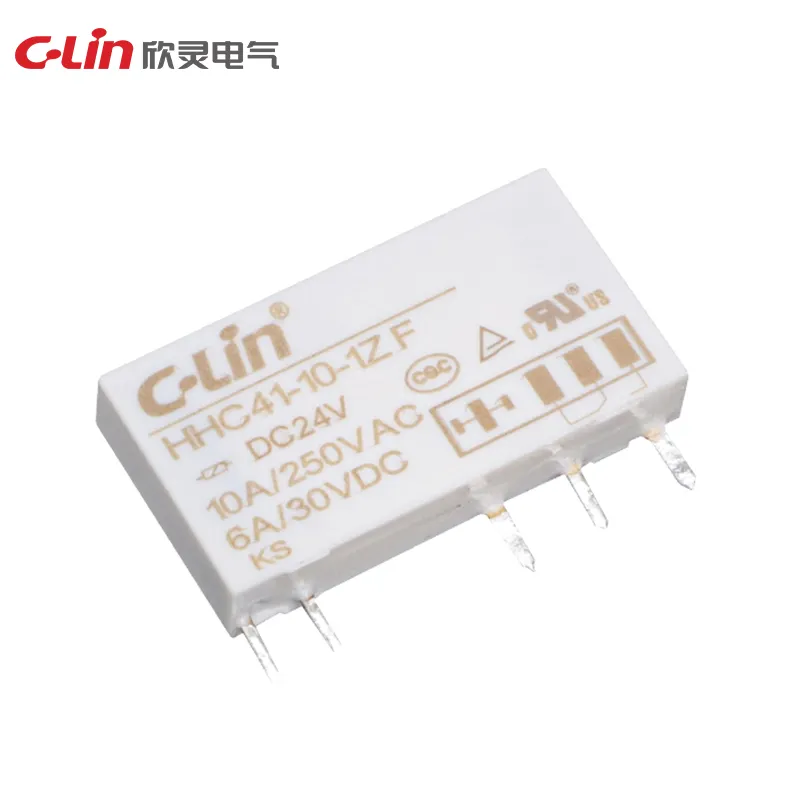

HHC41-10 1Z
| Parameter | Specification |
|---|
| Contact Load | 10A, 277VAC / 24VDC |
