XLDM7 Series miniature circuit breakers serve higher-current modular protection needs in AC230V/400V distribution panels. XLDM7-100 provides standard overcurrent protection, while XLDM7LE-100 adds residual current protection for leakage-sensitive circuits.
Common Parameters
| Rated Working Voltage | AC230V/400V |
|---|
| Rated Frequency | 50Hz |
|---|
| Rated Operating Current | 63A, 80A, 100A |
|---|
| Rated Short-Circuit Breaking Capacity | 10kA |
|---|
| Installation Method | 35mm standard rail mounting |
|---|
| Protection Type | Distribution protection, motor protection |
|---|
| Product Standard | GB/T 14048.2 |
|---|
| Dimensions | Refer to the user manual or selection guide |
|---|
XLDM7LE-100
| Poles | 1P+N, 2P, 3P, 3P+N, 4P |
|---|
| Rated Residual Operating Current | 30mA, 50mA, 100mA |
|---|

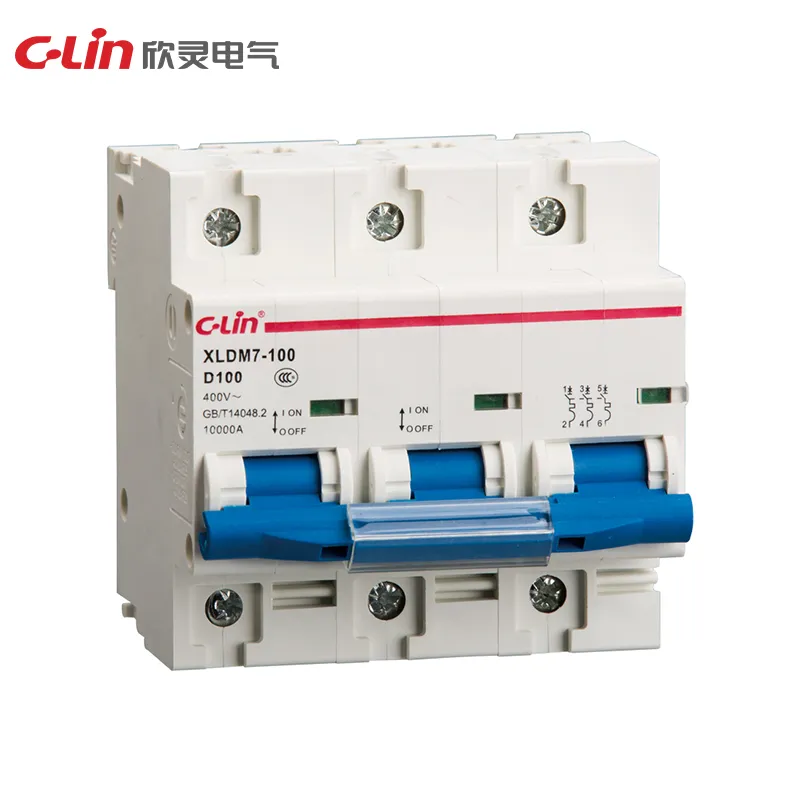

XLDM7-100
| Poles | 1P, 2P, 3P, 4P |
|---|
| Residual Current Protection | Not included |
|---|
