The LXW-AZ Series is a micro switch range for mechanical limit, position and interlock circuits. The models share the same contact-rating and environmental platform, while the actuator variant is selected by application geometry.

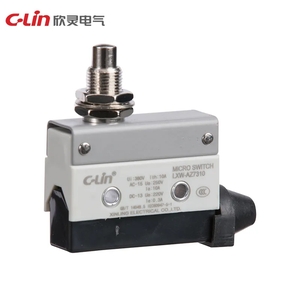

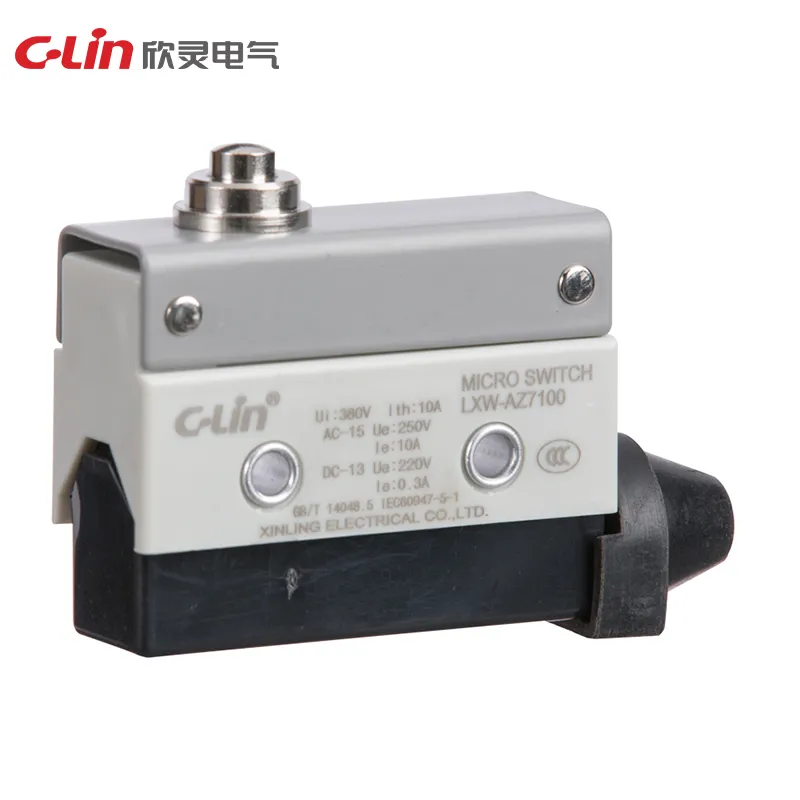

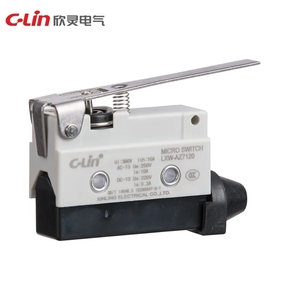

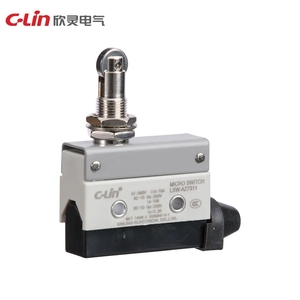

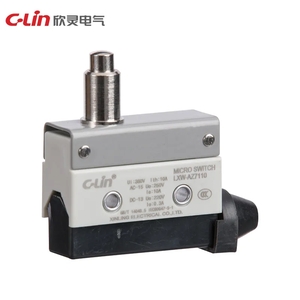

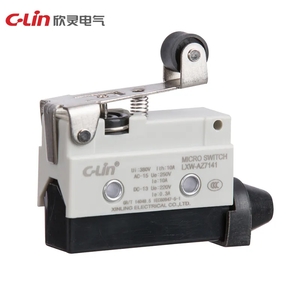

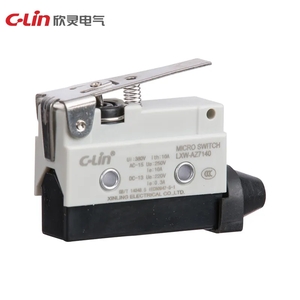

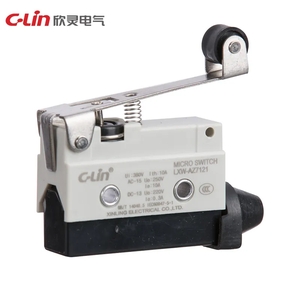

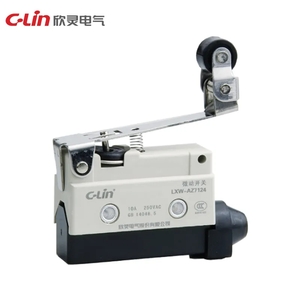

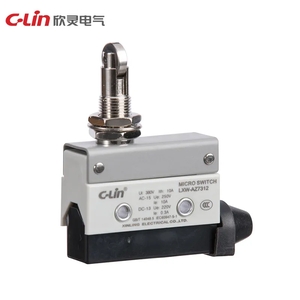

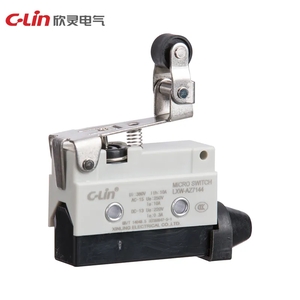

| Models | LXW-AZ7100, LXW-AZ7110, LXW-AZ7120, LXW-AZ7121, LXW-AZ7124, LXW-AZ7140, LXW-AZ7141, LXW-AZ7144, LXW-AZ7310, LXW-AZ7311, LXW-AZ7312 |
|---|---|
| Operation speed | 0.5mm-0.5m/s |
| Action frequency | Mechanical: 120 operations/min; electrical: 20 operations/min |
| Contact resistance | ≤50mΩ initial value |
| Insulation resistance | ≥100MΩ at DC500V or below |
| Heating current | Ith 10A |
| Electrical parameters | AC380V, AC220V / 1A; DC220V / 0.3A |
| Withstand voltage | 1890V between non-connected terminals; 2500V between terminals and non-charged metal; 2500V between terminals and ground, 50/60Hz for 1 minute |
| Vibration resistance | 10Hz-55Hz, 1.5mm double amplitude for malfunction durability |
| Impact resistance | Mechanical durability 1000m/s²; malfunction durability 300m/s² |
| Operating environment | -10°C to 80°C, no freezing; humidity <90%RH |
| Protection level | IP63 |
