The LXW-5 Series is a micro switch range for limit, position and interlock circuits where different actuator styles are needed around the same electrical rating. It includes LXW-511 and LXW-515 variants plus a matching protective case option.

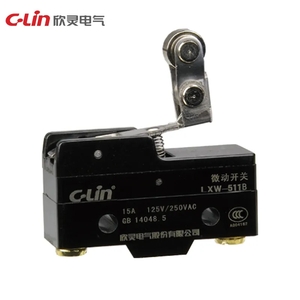

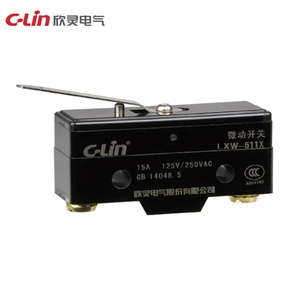

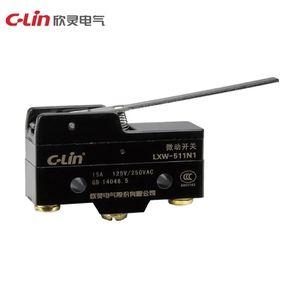

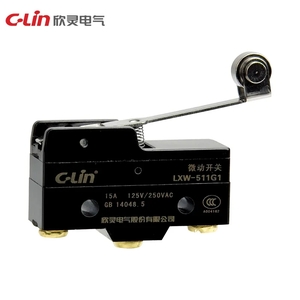

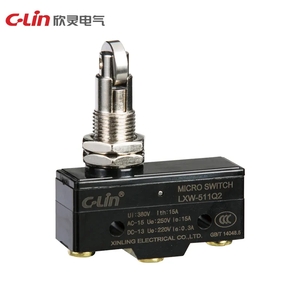

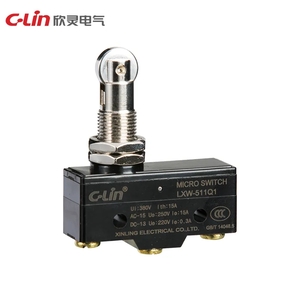

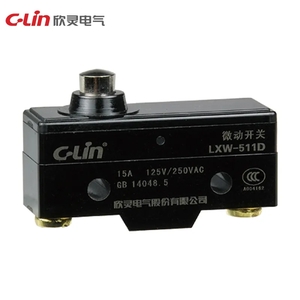

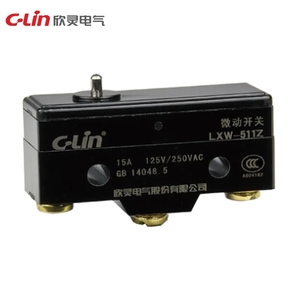

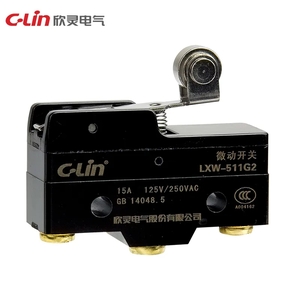

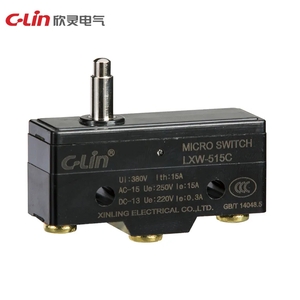

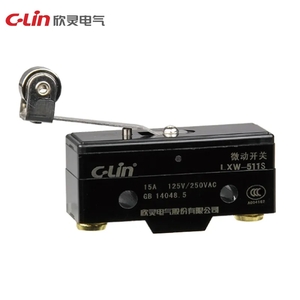

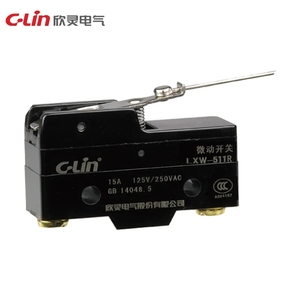

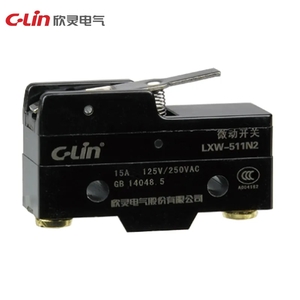

| Switch models | LXW-511D, LXW-511G1, LXW-511G2, LXW-511N1, LXW-511N2, LXW-511Q1, LXW-511Q2, LXW-511Z, LXW-515B, LXW-515C, LXW-515R, LXW-515S, LXW-515X |
|---|---|

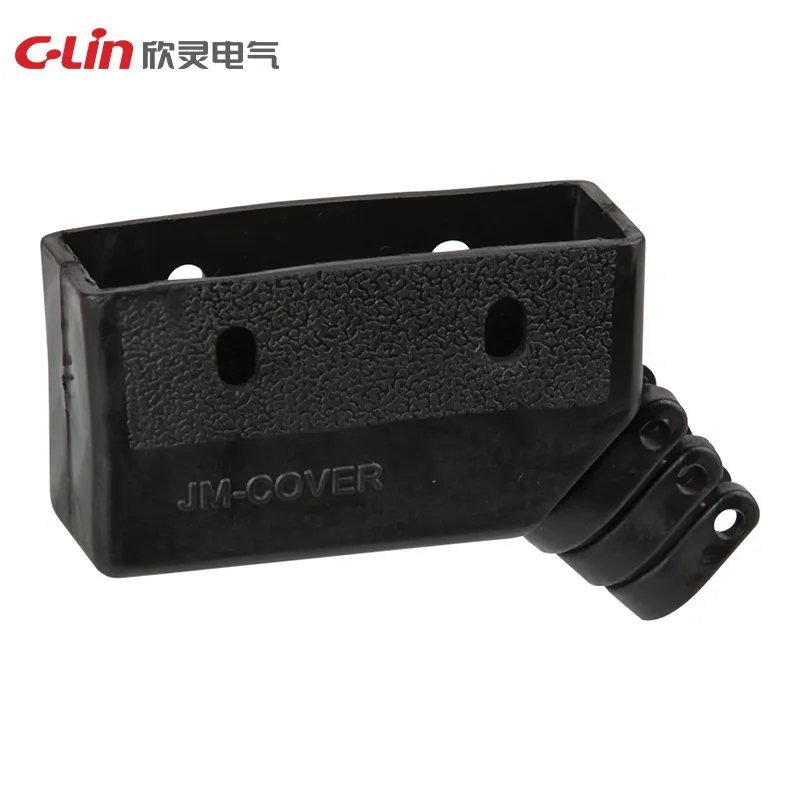

| Accessory option | LXW-5 protective case |
| Operation speed | 0.01mm-1m/s |
| Action frequency | Mechanical: 240 operations/min; electrical: 20 operations/min |
| Contact resistance | ≤15mΩ initial value |
| Insulation resistance | ≥100MΩ at DC500V |
| Heating current | Ith 15A |
| Electrical parameters | AC380V, AC220V / 1.5A; DC220V / 0.3A |
| Withstand voltage | 1890V between non-connected terminals; 2500V between terminals and non-charged metal; 2500V between terminals and ground, 50/60Hz for 1 minute |
| Vibration resistance | 10Hz-55Hz, 1.5mm double amplitude for malfunction durability |
| Impact resistance | Mechanical durability 1000m/s²; malfunction durability 300m/s² |
| Operating environment | -10°C to 80°C, no freezing; humidity <90%RH |
