Metal Toggle Switch

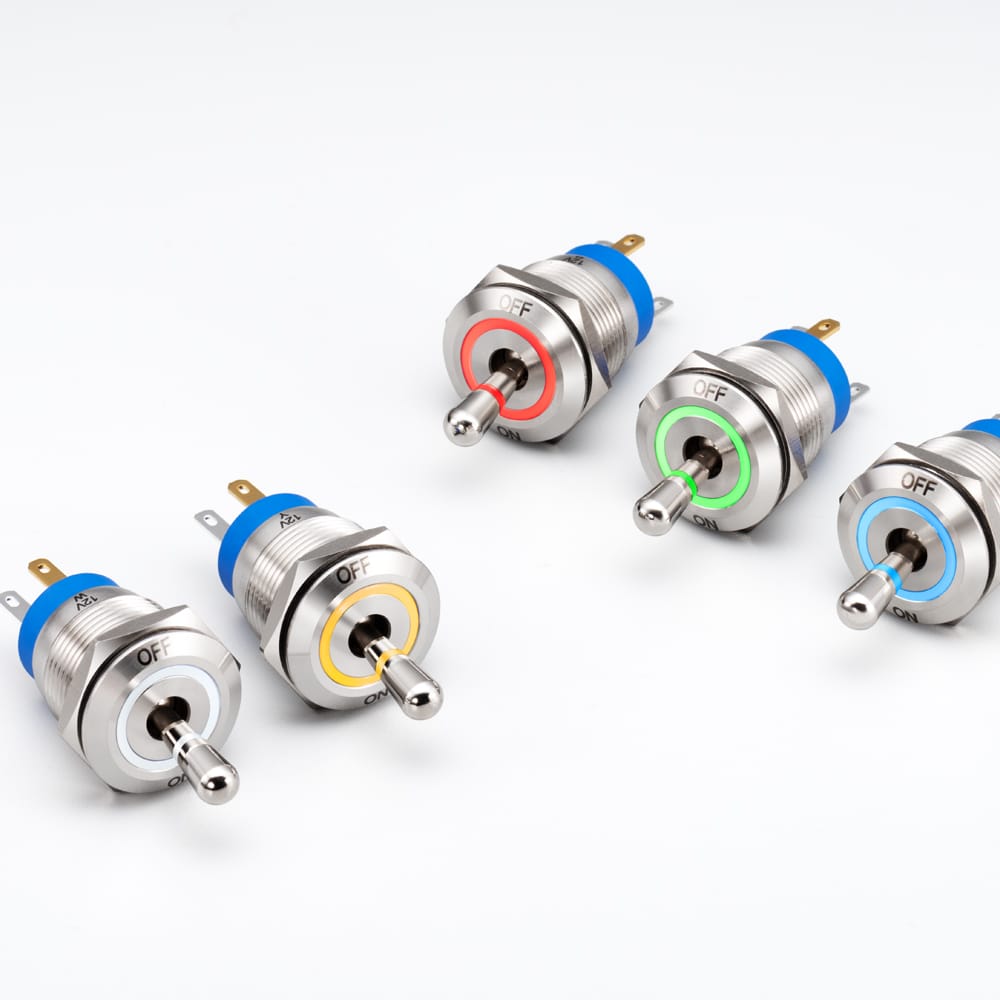

Anti Vandal Toggle Switch

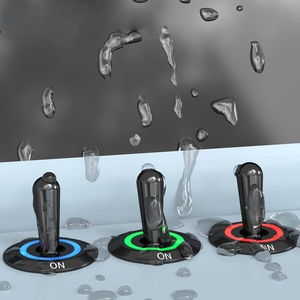

Anti Vandal Toggle Switch (Anodized)

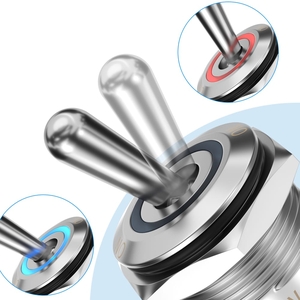

Anti Vandal Toggle Switch (Stainless Steel)

Series Part Number

Part Number: LT19 1 2 0 S R W 12V
Explanation:

Series

LT19 - 19mm
LT22 - 22mm

Terminal

1 - 2.8x0.8mm Tabs
W - Wire Leads 500mm long

Function

2 - 1 Pole Off-On
3 - 1 Pole Off-(On)
Middle-End
C - 1 Pole On-Off-On
D - 1 Pole On-Off-(On)
J - 1 Pole (On)-Off-(On)

Actuator Type

0 - Standard Bat or request

Material Options

S - Stainless Steel
A - Black anodized or request

Illumination Style Options

NONE - Non-Illuminated
R - Ring Illumination

LED-Color Options

NONE - Non-Illuminated
W - White
R - Red
O - Orange
G - Green
B - Blue
Y - Yellow

Illumination Voltage Options

NONE - Base Voltage*
3.3V
6V
12V
24V

Description

Langir’s toggle switches are robust manual switching devices designed for durability and reliability in automotive, marine, and industrial applications. These mechanical switches make or break electrical connections through a protruding actuator that is manually toggled between positions. They are known for their straightforward operation and are available with various LED options, including ring illumination, to enhance visibility and aesthetics.

Key Features

  • High Durability: Constructed from premium nylon and metal materials to withstand diverse environmental conditions.
  • Environmental Protection: IP67-rated sealed units provide advanced protection against moisture and dust, ideal for harsh and demanding environments.
  • Versatile Design: Features anti-vandal construction with multiple actuator styles, including options for pre-soldered wire leads (up to 500mm).
  • Functional Range: Supports simple on-off to complex multi-position configurations such as DPDT, with optional safety covers to prevent accidental activation.

Technical Specifications

Electrical Rating 10A 250VAC
Mechanical Life 200,000 Cycles
Electrical Life 6,000 Cycles
Contact Resistance ≤50mΩ Max.
Insulation Resistance ≥100MΩ Max.
Dielectric Strength 2,000VAC
Operating Temperature -20°C to 55°C
Moisture Protection IP67
Actuation Force 4N

Notes: LED base voltages are 1.8V @ 20mA for Red/Yellow/Orange and 2.8V @ 20mA for Blue/Green/White. Parentheses ( ) in the order code denote momentary function.
