Metal Pneumatic Contacts for 8mm and 10mm OD Tubes

8mm OD Male Pneumatic Contact
8mm OD Male Contact Tube Connection
8mm OD Male Contact Mating End
8mm OD Female Pneumatic Contact
8mm OD Female Contact Tube Connection
8mm OD Female Contact Mating End
10mm OD Male Pneumatic Contact
10mm OD Female Pneumatic Contact
10mm OD Female Contact Tube Connection
Pneumatic Contact Pair
Mated Pneumatic Contacts

Description

These metal pneumatic contacts connect larger air tubes through a modular connector assembly. Select the tube outside diameter, mating side and contact length for the required connection.

Model selection

ModelTube ODMating arrangementLengthBody diameter
SO-PCM-OD8.08mmMale51.3mm15mm
SO-PCFS-OD8.08mmFemale with shut-off50.2mm15mm
SO-PCM-OD10.010mmMale55.8mm15mm
SO-PCFS-OD10.010mmFemale with shut-off54.7mm15mm

Construction and operating limits

PropertySpecification
Pneumatic passages per contact1
Body constructionMetal
Tube connectionQuick connection sized by tube OD
Temperature range-40°C to +85°C
Mechanical life≥500 mating cycles

8mm contact and carrier arrangement

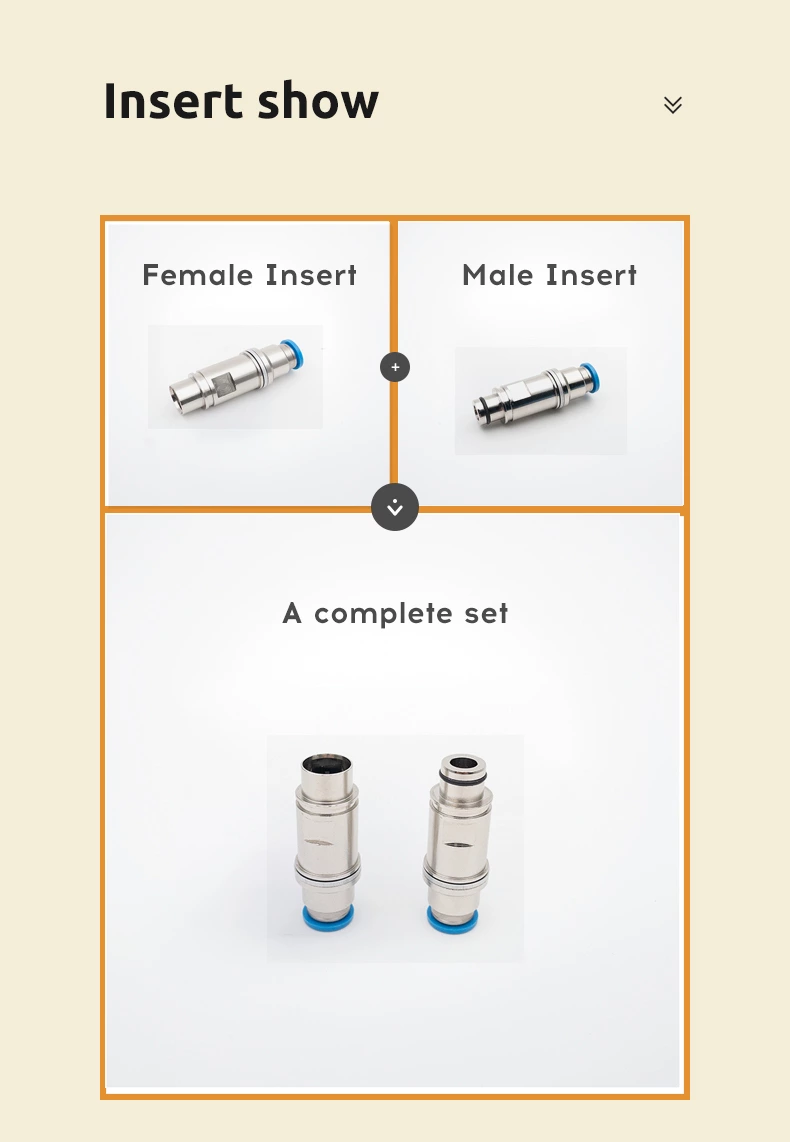

8mm OD male and female pneumatic contacts
Male and female contact forms for the 8mm OD tube connection.

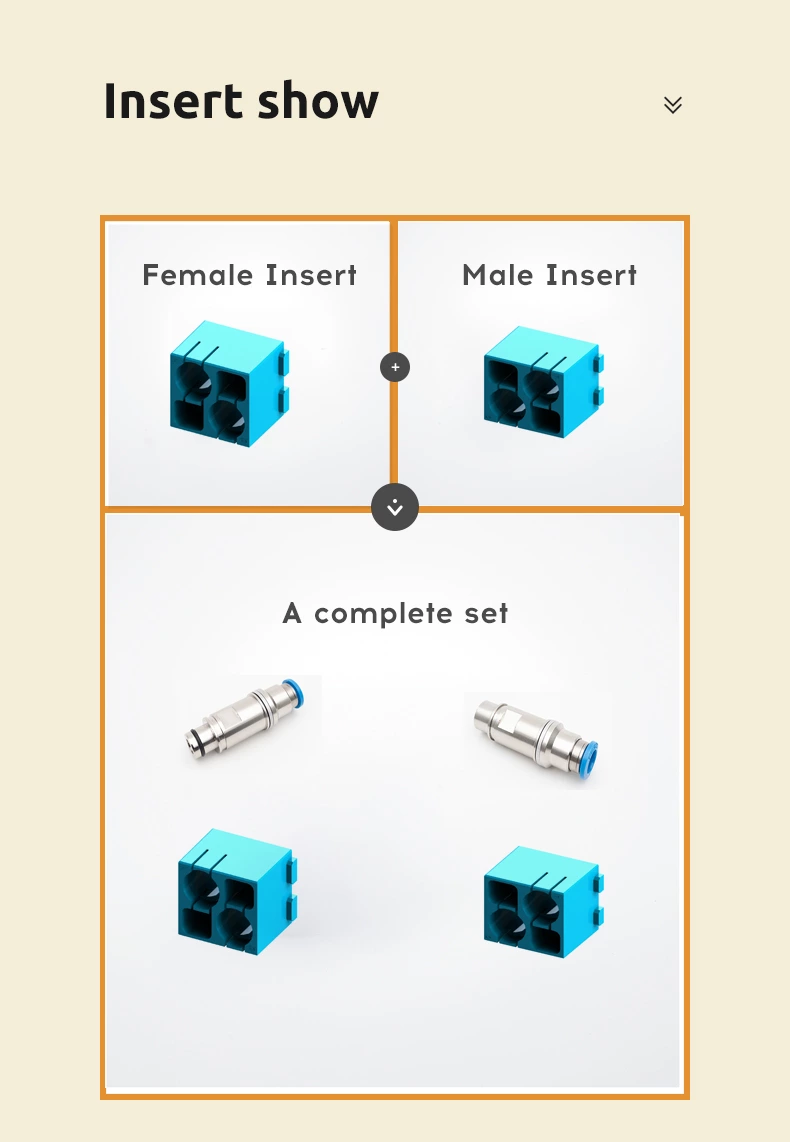

8mm pneumatic contacts and two-position module carriers
The metal air contacts fit into separate insulating module carriers.

10mm contact and carrier arrangement

10mm OD pneumatic contacts shown separately and mated
The 10mm OD male and female contacts form a continuous air connection when mated.
10mm pneumatic contacts and module carriers
Contact and carrier components for a modular 10mm OD air connection.

Check the retaining features and space around the tube connection against the corresponding outline drawing when selecting the carrier and contact combination.
