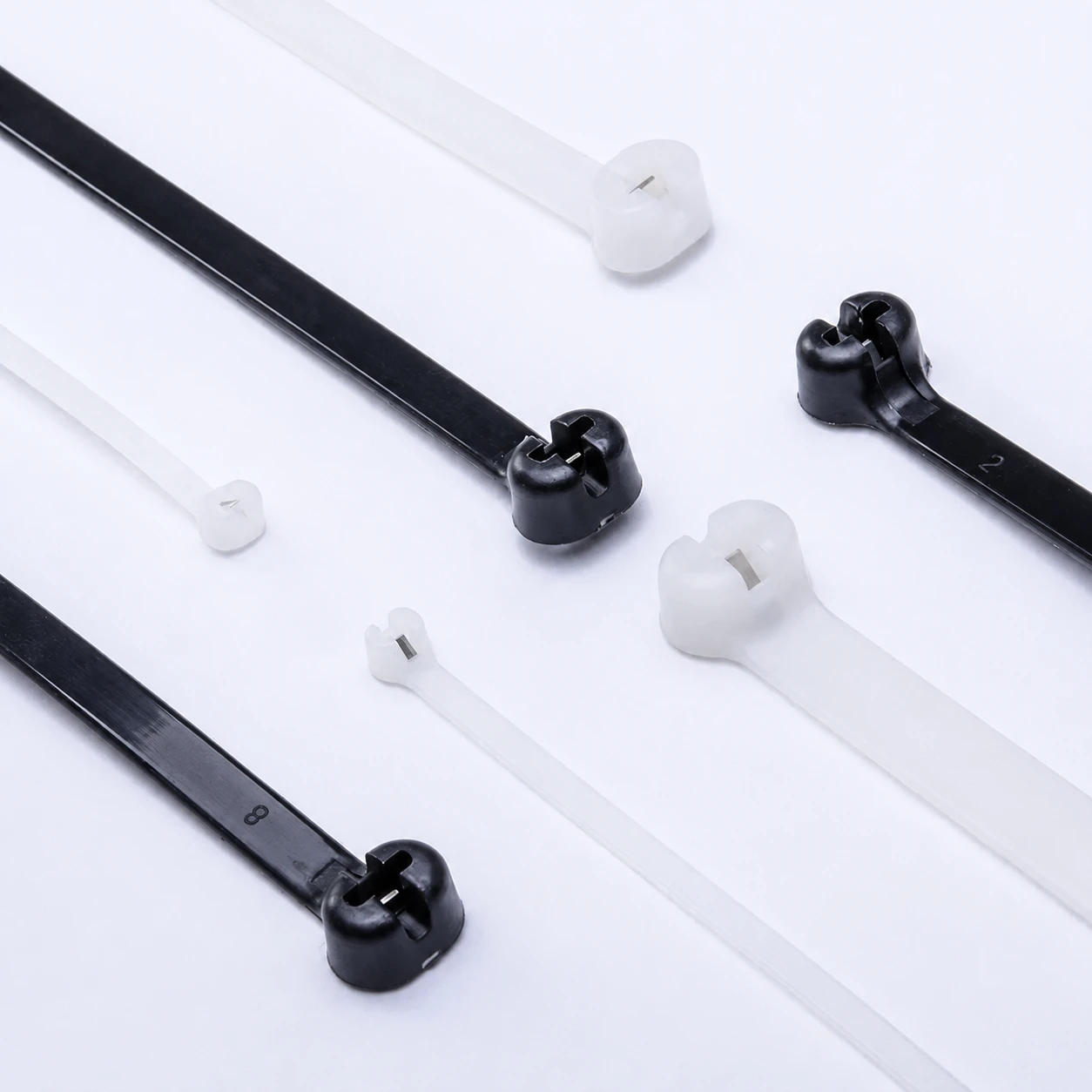

TSL ties use a stainless steel locking insert inside a PA66 nylon head. They fasten cables, hoses and pipes in electrical wiring, machinery, automotive assemblies and power equipment. Black and natural configurations are shown.
All models below use a PA66 body and are packed in bags of 100 pieces. Confirm any dimension or rating marked for order confirmation before choosing the tie.
| Model | Width | Length | Maximum bundle diameter | Minimum tensile strength |
|---|---|---|---|---|
| TSL-2.4-102 | 2.4mm | 102mm | 23mm | 80N |
| TSL-2.4-201 | 2.4mm | 201mm | 51mm | 80N |
| TSL-3-100 | 3.0mm | 100mm | 22mm | 80N |
| TSL-3.6-155 | 3.6mm | 155mm | 35mm | 180N |
| TSL-3.6-284 | 3.6mm | 284mm | 80mm | 180N |
| TSL-3.6-368 | 3.6mm | 368mm | 104mm | 180N |
| TSL-3.8-200 | Confirm for order | Confirm for order | 50mm | 180N |
| TSL-4.8-186 | 4.8mm | 186mm | 45mm | 220N |
| TSL-4.8-250 | 4.8mm | 250mm | 65mm | 220N |
| TSL-4.8-295 | 4.8mm | 295mm | 79mm | 220N |
| TSL-4.8-361 | 4.8mm | 361mm | 100mm | 220N |
| TSL-4.8-376 | 4.8mm | 376mm | 107mm | 220N |
| TSL-6-200 | 6.0mm | Confirm for order | 50mm | Confirm for order |
| TSL-7-221 | 7mm | 221mm | Confirm for order | 498N |
| TSL-7-300 | 7mm | 300mm | Confirm for order | 498N |
| TSL-7-378 | 7mm | 378mm | Confirm for order | 498N |
| TSL-7-460 | 7mm | 460mm | Confirm for order | 498N |
| TSL-7-538 | 7mm | 538mm | Confirm for order | 498N |
| TSL-7-699 | 7mm | 699mm | Confirm for order | 498N |
| TSL-8-240 | 8mm | 240mm | Confirm for order | 498N |
| TSL-8-300 | 8mm | 300mm | Confirm for order | 498N |
| TSL-8-350 | 8mm | 350mm | Confirm for order | 498N |
| TSL-8-400 | 8mm | 400mm | Confirm for order | 498N |
| TSL-10-300 | 10mm | 300mm | Confirm for order | 550N |
| TSL-10-350 | 10mm | 350mm | Confirm for order | 550N |
| TSL-10-400 | 10mm | 400mm | Confirm for order | 550N |
| TSL-10-450 | 10mm | 450mm | Confirm for order | 550N |
Use maximum bundle diameter as the capacity reference where specified, and match the individual model tensile rating to the fastening requirement. Overall strap length does not describe the diameter of the finished loop.
