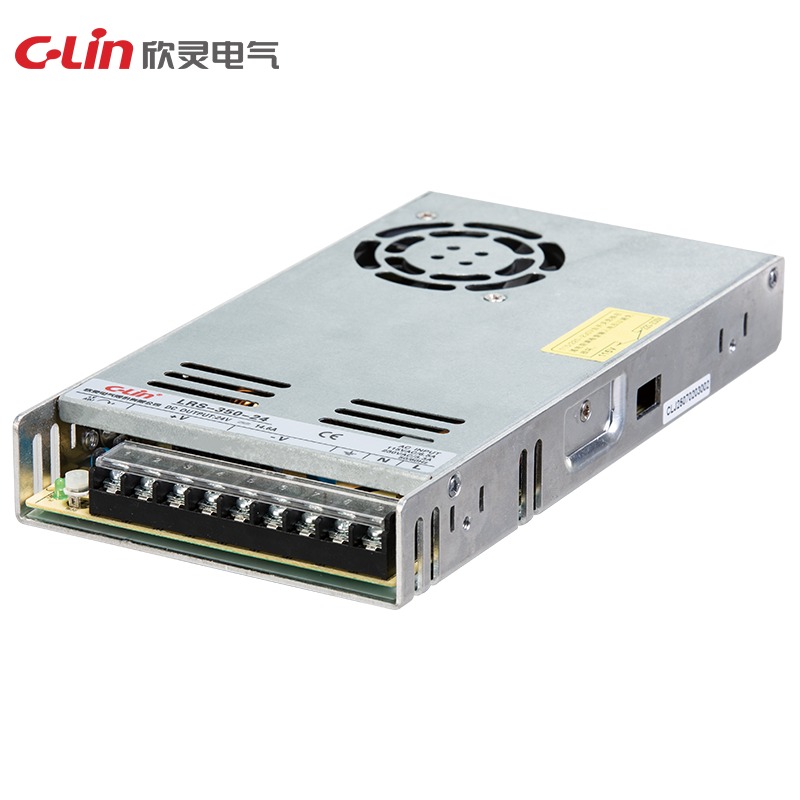

LRS Series switching power supplies provide compact DC power for control cabinets, automation equipment and electrical panels. The listed 350W and 400W versions share the same low-profile enclosure and selectable AC input, with output voltage/current chosen by model.
| Parameter | Specification |
|---|---|
| Model Range | LRS 350W-400W |
| Input Voltage | 115/230VAC switch-selectable, 50/60Hz; 250-370VDC |
| 350W Output Options | 12V 29A, 24V 14.6A, 36V 9.7A, 48V 7.3A |
| 400W Output Options | 12V 33A, 24V 16.5A, 36V 11.1A, 48V 8.3A |
| Protection Functions | Short-circuit and overload/overcurrent protection |
| Dimensions | 215 x 115 x 30 mm |
