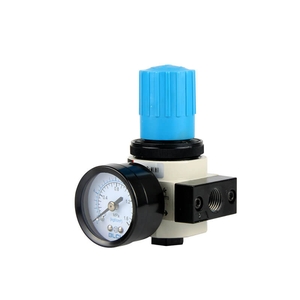

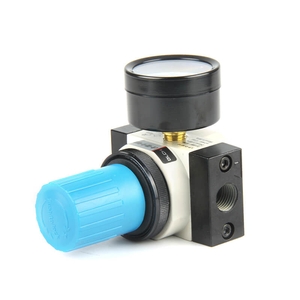

LR-MINI and LR-MIDI Air Pressure Regulators

Series Part Number

Part Number: LR - MINI - 01
Explanation:

Series

LR - Air pressure regulator series

Body Size

MINI - Compact body; port codes 01, 02 or 03
MIDI - Larger body; port codes 02, 03 or 04

Port Size

01 - 1/8in; MINI only
02 - 1/4in; MINI or MIDI
03 - 3/8in; MINI or MIDI
04 - 1/2in; MIDI only

Description

LR-MINI and LR-MIDI air regulators provide manual pressure adjustment over 0.15-1.2MPa. The two body sizes cover six connection options, from 1/8″ to 1/2″, with maximum flows of 1000-4000L/min (ANR). Select the body size and port together to match the required air flow and installation space.

Model selection and flow

ModelPortMaximum flow (ANR)
LR-MINI-011/8″1000L/min
LR-MINI-021/4″1600L/min
LR-MINI-033/8″1800L/min
LR-MIDI-021/4″2200L/min
LR-MIDI-033/8″3300L/min
LR-MIDI-041/2″4000L/min

Operating conditions

ParameterLR-MINI and LR-MIDI
Working pressure0.15-1.2MPa
Ambient temperature5-60°C

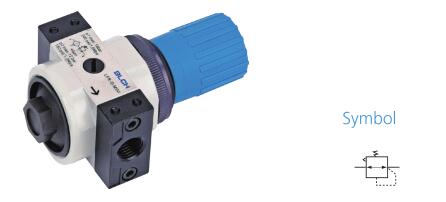

LR air regulator body and pressure regulator circuit symbol

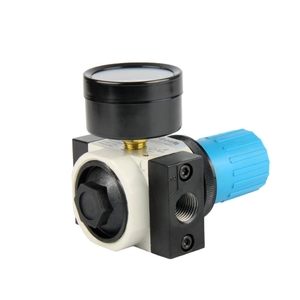

LR regulator connection arrangement and pneumatic symbol.

Installation dimensions

ModelsWidth AHeight BDepth C
LR-MINI-01/02/0364mm96mm40mm
LR-MIDI-02/03/0485mm128mm55mm

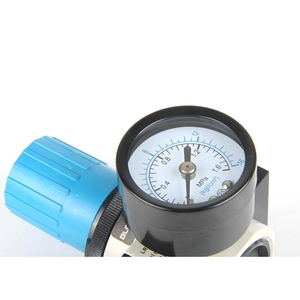

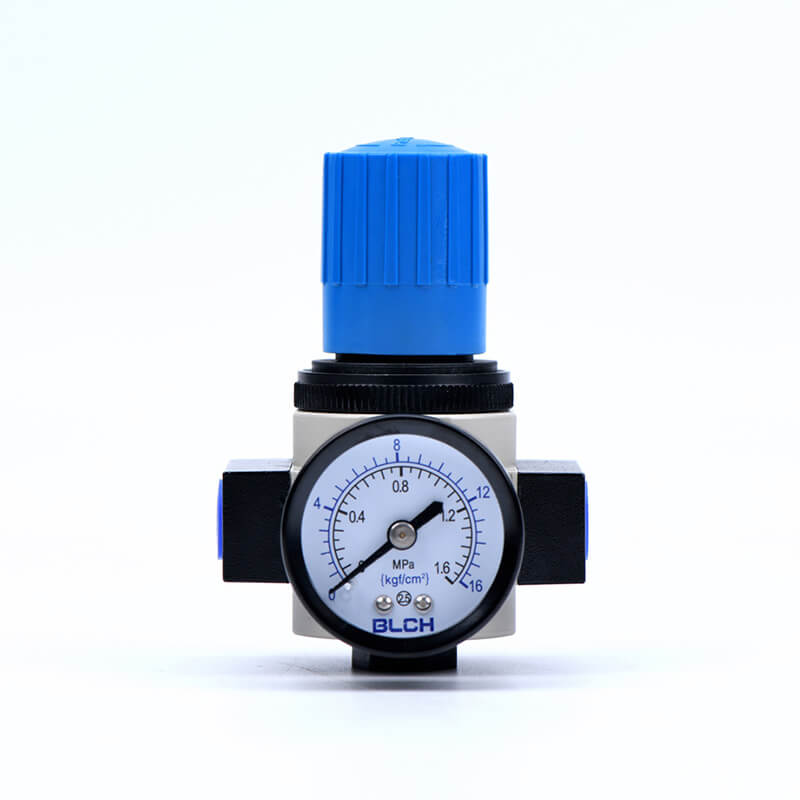

The gauge is shown mounted on the regulator body. Refer to the LR installation drawings in the attached Pneumatic Components Catalogue when planning the mounting space and connection direction.
