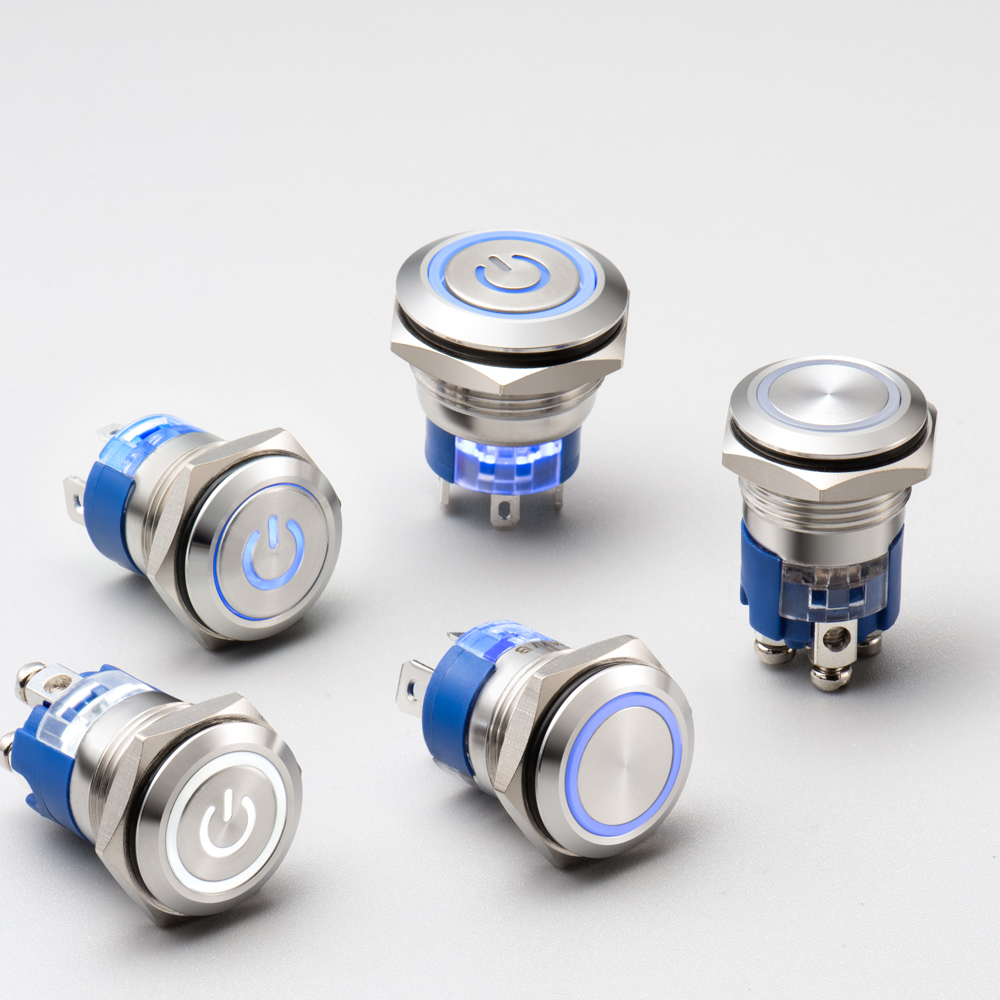

Low Profile High Current Metal Switch

Low Profile High Current Anti-Vandal Switch

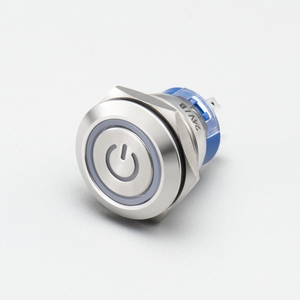

16mm Low Profile High Current Anti-Vandal Switch (Screw Terminal, Ring Illumination)

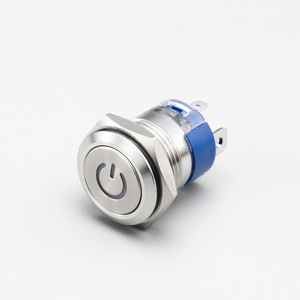

16mm Low Profile High Current Anti-Vandal Switch (Screw Terminal, Symbol Illumination)

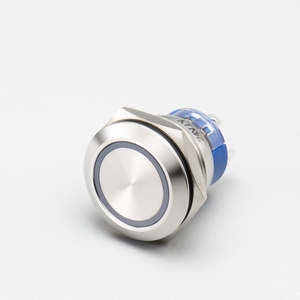

19mm Low Profile High Current Anti-Vandal Switch (Pin Terminal, Ring Illumination)

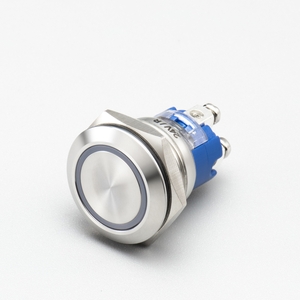

19mm Low Profile High Current Anti-Vandal Switch (Screw Terminal, Ring Illumination)

Series Part Number

Part Number: L16D F S M S R W 12V LE
Explanation:

Series

L16D - 16mm
L19D - 19mm

Actuator

F - Flat

Terminal

NONE - Solder-lug (2.8x0.5)
S - Screw
C - Wire-leads 300mm long
P - Plug connector

Function

M - Momentary 1-1NO
Z - Latching 1-1NO

Material

S - Stainless steel

Illumination Style

NONE - Non-illuminated
R - Ring illumination
PS - Power backlit symbol
PY - Ring illum. & Power backlit symbol

LED-Color

NONE - Non-illuminated
W - White
R - Red
O - Orange
G - Green
B - Blue
Y - Yellow

Illumination Voltage

NONE - Non-illuminated
1 - Base Voltage**
3.3V
6V
12V
24V
36V
110V
220V

Graphic

NONE - Non-illuminated
LE - Laser etched

Description

The L16D and L19D series are high-capacity anti-vandal switches designed for applications requiring both a low-profile aesthetic and high electrical current handling. Capable of switching up to 20A, these switches are perfect for marine, automation, and industrial machinery where heavy-duty performance and rugged protection are required.

Key Features

  • High Current Capacity: Rated for up to 20A, making it suitable for high-power circuits.
  • Rugged Protection: IP67 rated for complete dust and moisture protection, with IK09 impact resistance.
  • Compact Design: Low-profile actuator available in 16mm or 19mm diameter panel cutouts.
  • Illumination & Customization: Options for ring or power symbol illumination and custom engraving.
  • Versatile Wiring: Available with both pin and screw terminal options, plus optional 300mm pre-soldered wire leads.

Technical Specifications

Electrical Rating 16A 250VAC / 20A 24VDC
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Contact Resistance 50mΩ Max.
Insulation Resistance 1500 MΩ / 500VDC
Operating Temp. -20°C to 55°C
Travel 3.50mm
Actuation Force 4N

Order Configuration

Low Profile High Current Order Code

Notes: LED base voltages are 1.8V @ 20mA for Red/Yellow/Orange and 2.8V @ 20mA for Blue/Green/White.
