LOE-MINI and LOE-MIDI Air Lubricators

Series Part Number

Part Number: LOE - MINI - 01
Explanation:

Series

LOE - Air lubricator series

Body Size

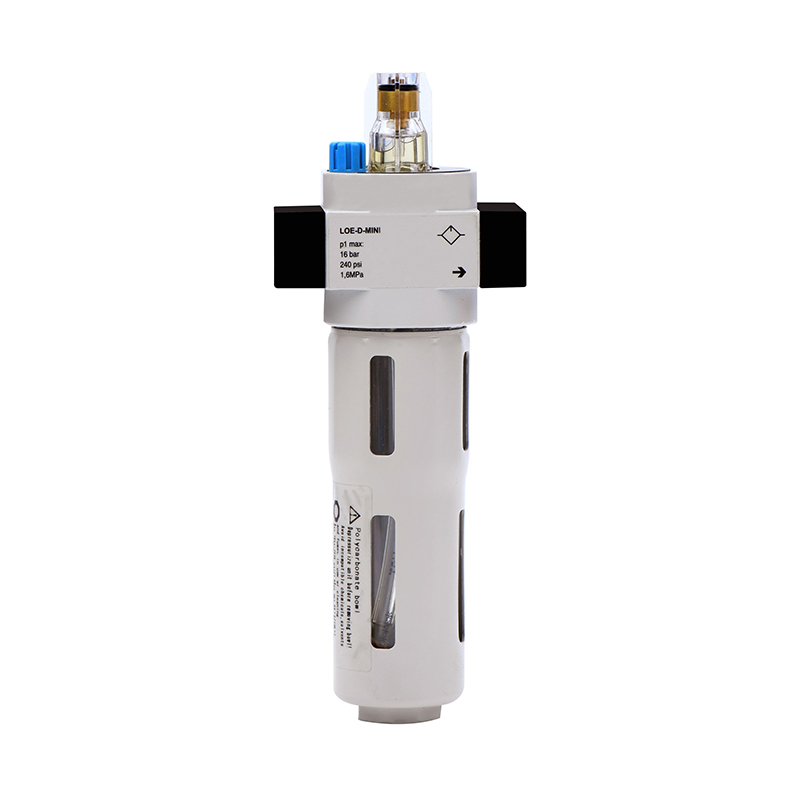

MINI - Compact body; port codes 01, 02 or 03

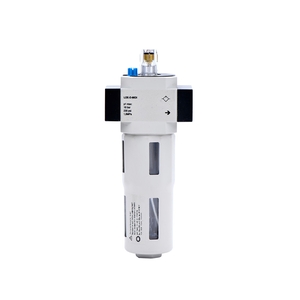

MIDI - Larger body; port codes 02, 03 or 04

Port Size

01 - 1/8in; MINI only
02 - 1/4in; MINI or MIDI
03 - 3/8in; MINI or MIDI
04 - 1/2in; MIDI only

Description

LOE-MINI and LOE-MIDI air lubricators introduce an oil mist into the compressed-air stream for pneumatic components that require lubrication. Six port and body-size combinations cover maximum flows of 1300-6100L/min (ANR). Select the lubricator by both maximum flow and the minimum flow required to produce an oil mist.

Model and flow selection

ModelPortMaximum flow (ANR)Minimum misting flow
LOE-MINI-011/8″1300L/min3L/min
LOE-MINI-021/4″2300L/min
LOE-MINI-033/8″2700L/min
LOE-MIDI-021/4″2800L/min8L/min
LOE-MIDI-033/8″5500L/min
LOE-MIDI-041/2″6100L/min

Operating conditions

ParameterSpecification
Working pressure0.15-1.2MPa
Ambient temperature5-60°C
Recommended oilISO VG32 turbine oil

Installation dimensions

ModelsWidth AHeight BDepth C
LOE-MIDI-02/03/0485mm208mm55mm
LOE-MINI-01/02/0364mm169mm40mm

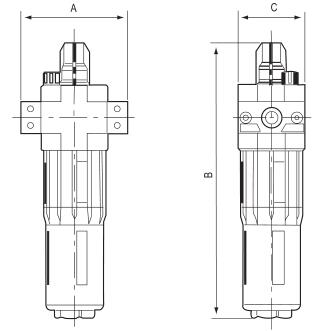

LOE lubricator front and side installation outline with A, B and C dimensions
LOE air lubricator installation outline; dimensions correspond to the selected MINI or MIDI body.

Follow the flow-direction arrow on the lubricator body. The attached Pneumatic Components Catalogue includes the LOE model table and mounting dimensions.
