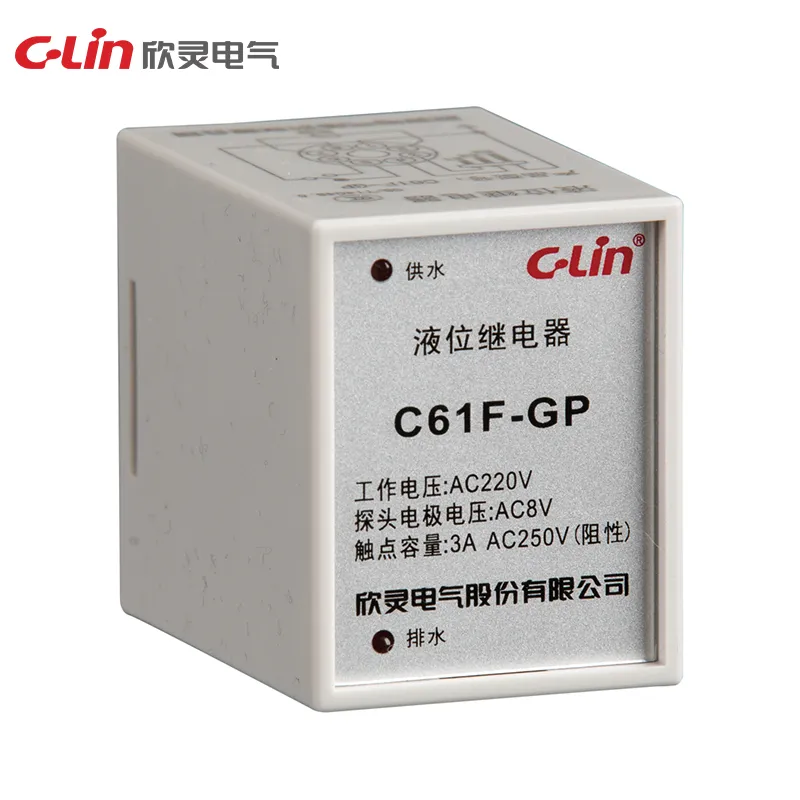

C61F Series liquid level relays monitor conductive liquid level for water supply and drainage control. C61F-GP provides relay output for pump or control-circuit switching and can be installed by socket accessories for panel, device or rail mounting.
| Model | C61F-GP |
|---|---|
| Working Power Supply | AC380V, AC220V, AC110V, AC36V, AC24V 50Hz; DC24V |
| Allowable Voltage Fluctuation | 85% to 110% of Ue |
| Working Mode | Water supply and drainage |
| Water Control Distance | ≤100m |
| Contact Form | One set of NO and NC contacts |
| Contact Capacity | 3A AC250V resistive load; AC-15 Ue AC250V, Ie 3A |
| Conventional Thermal Current Ith | 3A |
| Rated Insulation Voltage Ui | 380V |
| Rated Impulse Withstand Voltage Uimp | 4kV |
| Dimensions | 40 × 55 × 79mm |
| Installation Method | Device, panel or 35mm rail mounting with matching sockets and accessories |
