The LX19 Series is a mechanical limit switch range for travel, position and interlock detection. The variants use the same contact-rating platform, with model selection based on the mechanical actuator and installation requirement.

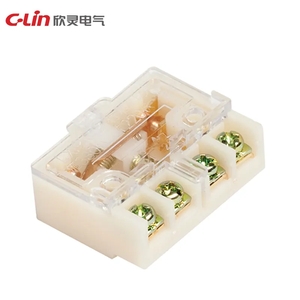

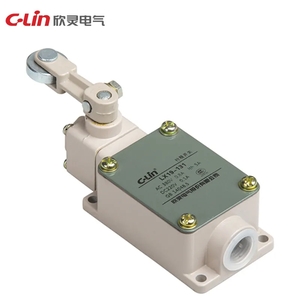

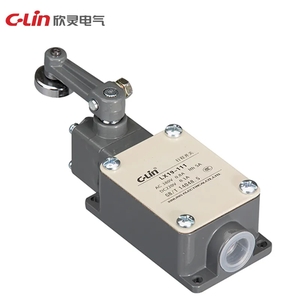

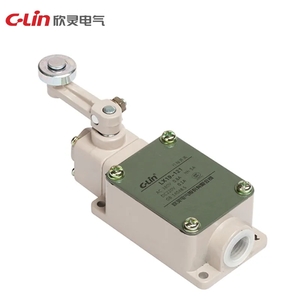

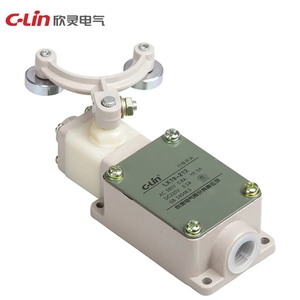

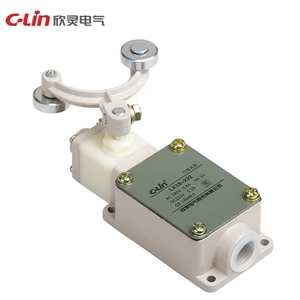

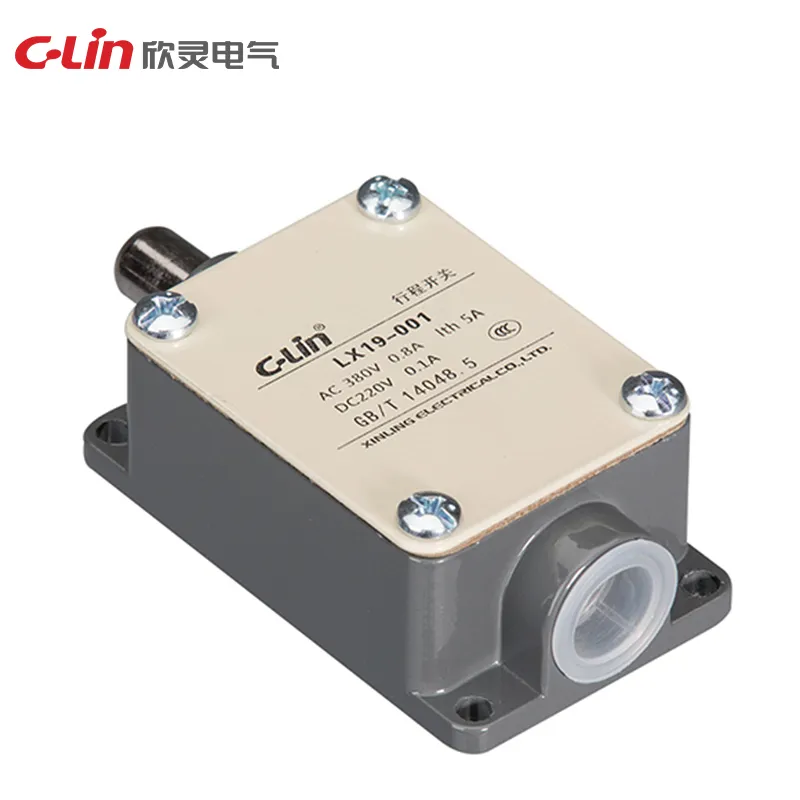

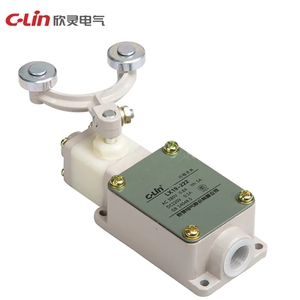

| Models | LX19-001, LX19-111, LX19-121, LX19-131, LX19-212, LX19-222, LX19-232, LX19-K |
|---|---|
| Operating force OF | 20N maximum |
| Operating travel PT | 40° maximum |
| Overtravel OT | 15° minimum |
| Conventional thermal current | 5A |
| Rated voltage | AC380V, DC220V |
| Rated control current | AC 0.8A; DC 0.1A |
| Operating frequency | 20 operations/min |
| Withstand voltage | 1890V between terminals of the same pole; 2500V between live parts and earth; 2500V between terminals and non-live metal parts |
| Ambient temperature | -5°C to 40°C |
| Relative humidity | ≤90% at 20°C |
| Altitude | ≤2000m |
| Protection class | IP52 |
