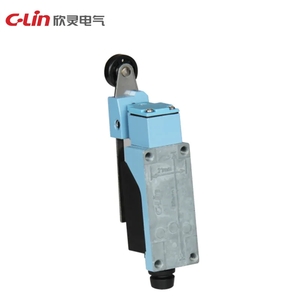

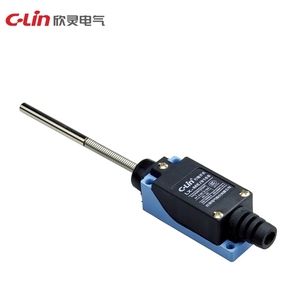

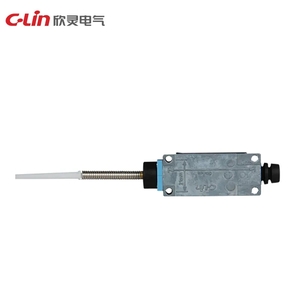

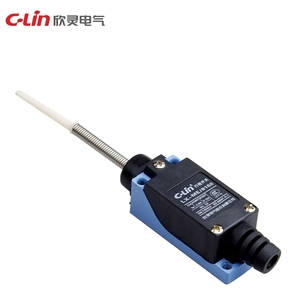

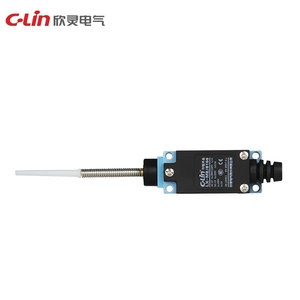

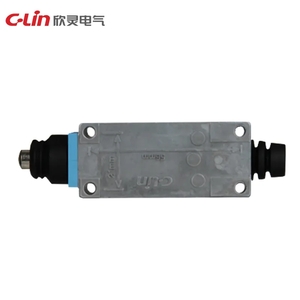

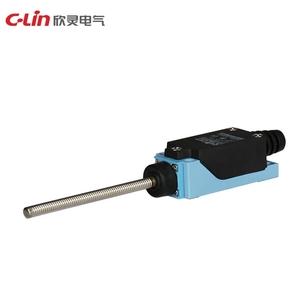

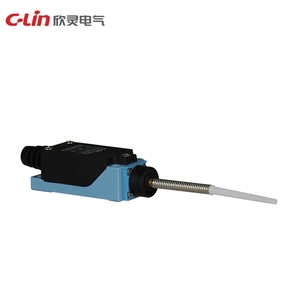

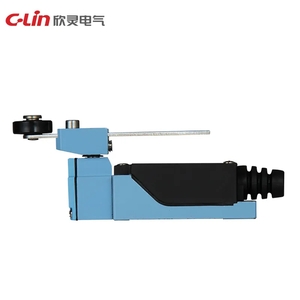

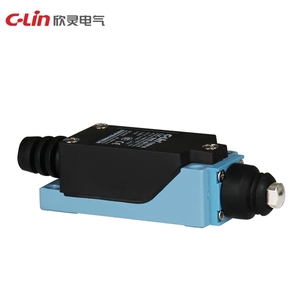

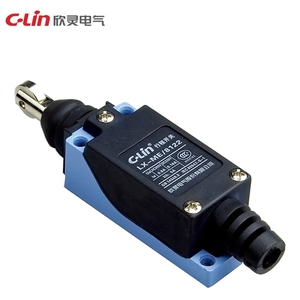

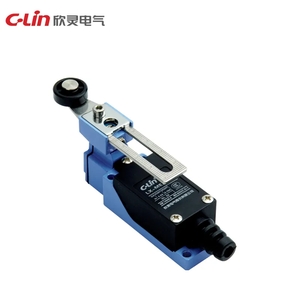

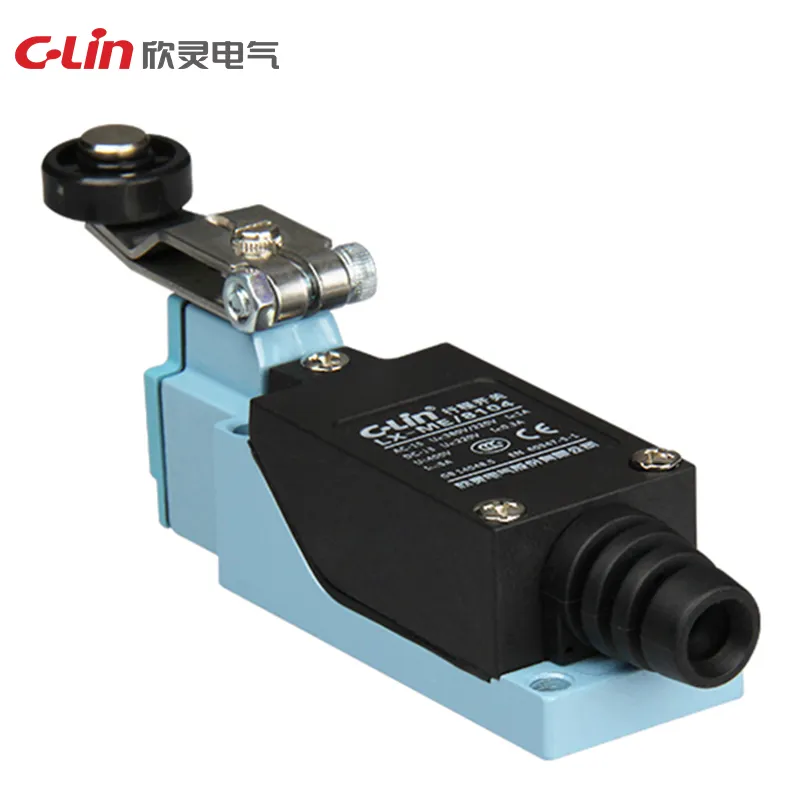

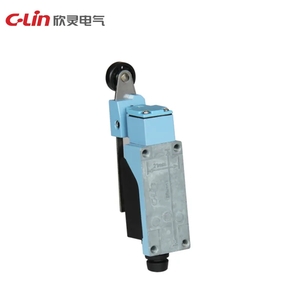

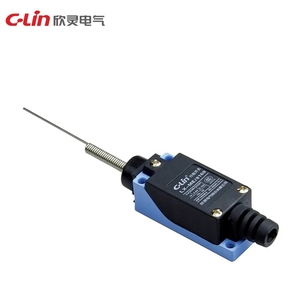

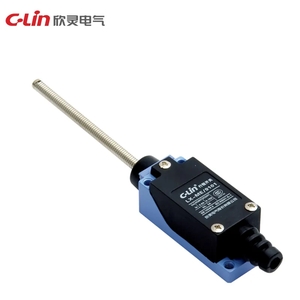

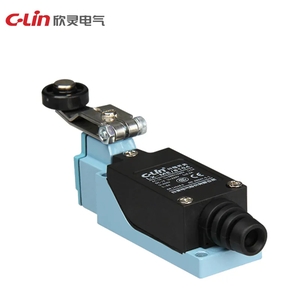

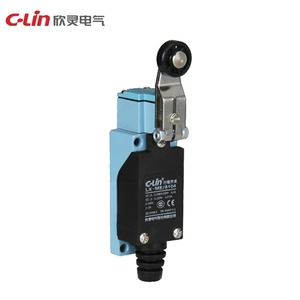

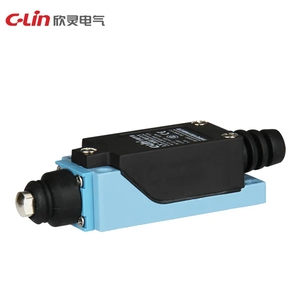

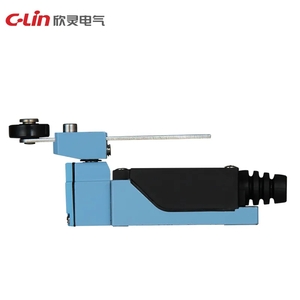

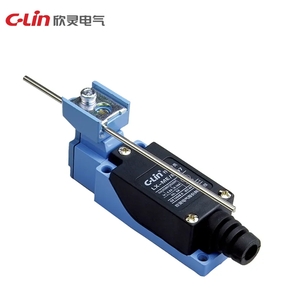

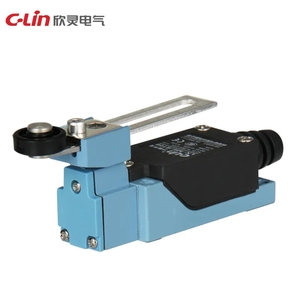

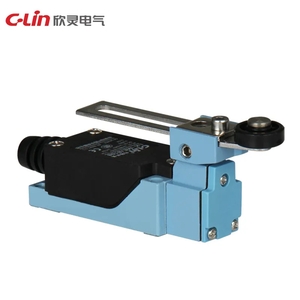

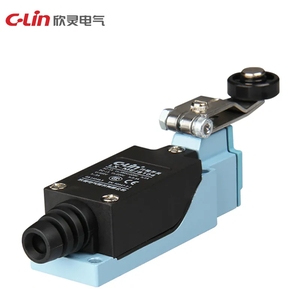

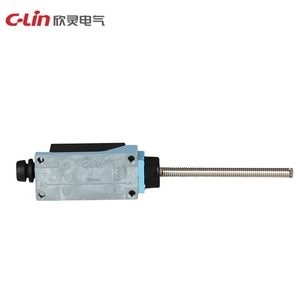

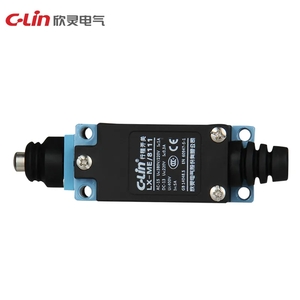

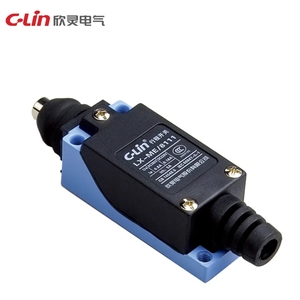

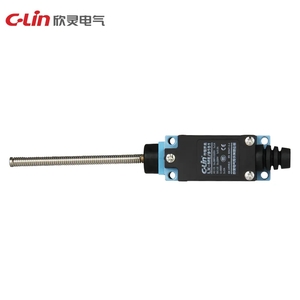

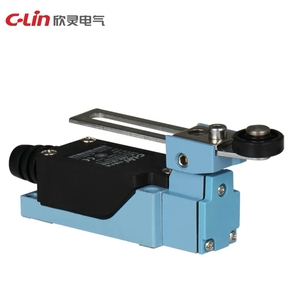

The LX-ME8000 Series is a mechanical limit switch range for position detection and travel-limit control. The variants share the same electrical and environmental platform, while the model code identifies the actuator head or operating style needed for the machine layout.
| Models | LX-ME(8104), LX-ME(8107), LX-ME(8111), LX-ME(8112), LX-ME(8122), LX-ME(8166), LX-ME(8168), LX-ME(8169), LX-ME(8180), LX-ME(9101) |
|---|---|
| Operating force OF | 7.4N maximum |
| Reset force RF | 0.1N minimum |
| Pretravel PT | 20° maximum |
| Overtravel OT | 50° minimum |
| Differential travel MD | 12° maximum |
| Operating speed | 0.5mm-50cm/s |
| Operating frequency | Mechanical: 120 operations/min; electrical: 30 operations/min |
| Contact resistance | ≤25mΩ initial value |
| Insulation resistance | ≥100MΩ at DC500V or below |
| Withstand voltage | 1000VAC between non-connected terminals; 1500VAC between current-carrying and non-current-carrying parts; 1500VAC between terminals and ground, 50/60Hz for 1 minute |
| Vibration resistance | 10Hz-55Hz, 1.5mm double amplitude for misoperation endurance |
| Shock resistance | Mechanical endurance 1000m/s²; misoperation endurance 300m/s² |
| Operating environment | -5°C to 65°C; humidity <95%RH |
| Protection class | IP65 |
