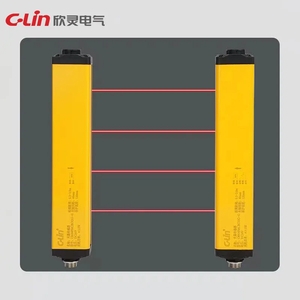

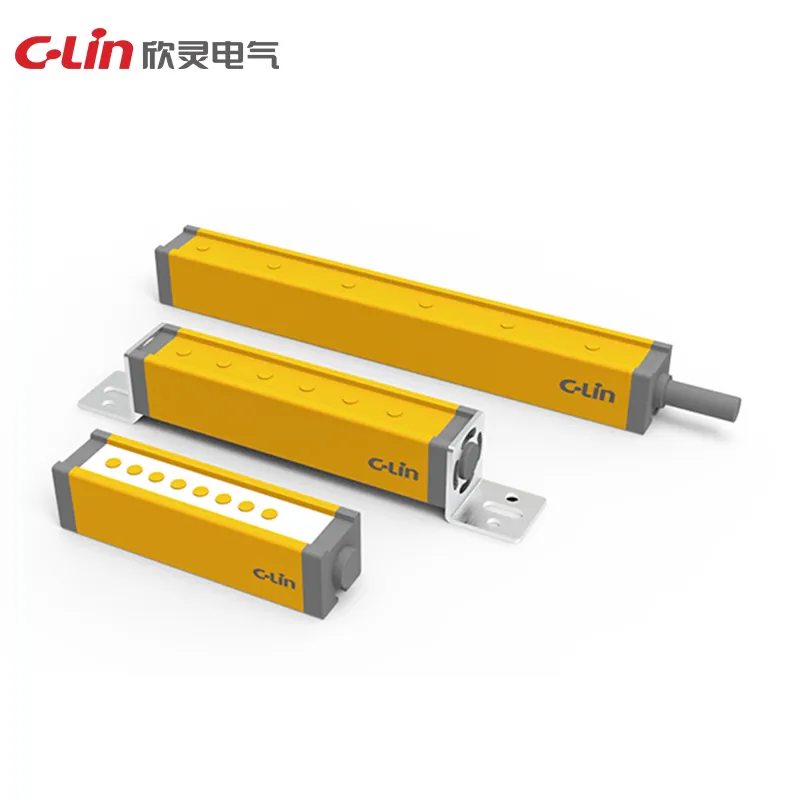

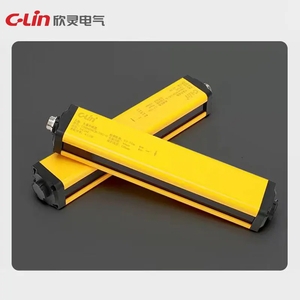

The C8 Series is a through-beam light curtain sensor for area detection across machine openings and automation zones. It uses an aluminum profile body with configurable optical axes, signal-output options and synchronization methods for different installation layouts.
| Model / specification | C8 |
|---|---|
| Light curtain type | Through-beam type |
| Optical axis spacing | 20mm |
| Number of optical axes | 4, 6, 8 or 24 |

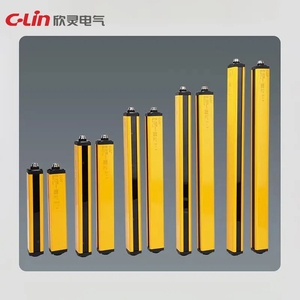

| Protective height | 70-2994mm |
| Detection distance | 0.1-5m |
| Sensitivity adjustment | Non-adjustable |
| Signal output | NPN, PNP or relay |
| Synchronization type | Line synchronization or optical synchronization |
| Response time | 10-34ms maximum |
| Reset time | Output reset time <200ms |
| Supply voltage | 24VDC ±10%, ripple ±20% P-P maximum |
| Current consumption | 30mA |
| Residual voltage | ≤1V |
| Protection circuit | Polarity protection and instantaneous reverse-polarity protection |

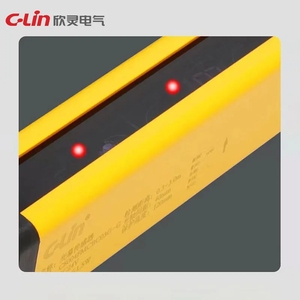

| Indicator | Digital tube indicator |
| Ambient illuminance | Incandescent light under 3000Lx; sunlight under 10000Lx at incidence angle ≥5° |
| Operating temperature | -5°C to 55°C, no icing or condensation |
| Storage temperature | -30°C to 80°C, no icing or condensation |
| Humidity | 25-85%, no condensation |

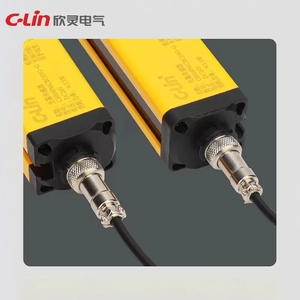

| Connection method | Cable inserts |
| Material | Aluminum alloy body with reinforced nylon top and bottom covers |
| Installation | Slotted installation |
