LFR-MINI and LFR-MIDI combine air filtration and pressure adjustment in one unit. The two body sizes cover six port-and-flow combinations, allowing selection by connection size and air demand. Both offer standard manual drainage and an automatic-drain option.
| Model family | Port Rc(G) | Maximum flow, L/min (ANR) |
|---|---|---|
| LFR-MINI | 1/8″ | 750 |
| 1/4″ | 1400 | |
| 3/8″ | 1600 | |
| LFR-MIDI | 1/4″ | 2000 |
| 3/8″ | 3100 | |
| 1/2″ | 3400 |
A 1/4″ or 3/8″ port is available in either body size. Select the family as well as the port size, since the flow rating differs between MINI and MIDI.
| Parameter | Specification |
|---|---|
| Working pressure | 0.15-1.2MPa |
| Standard filtration | 40μm |
| Optional filtration | 5μm |
| Standard drainage | Manual drain |
| Optional drainage | Automatic drain |
| Ambient temperature | 5-60°C |

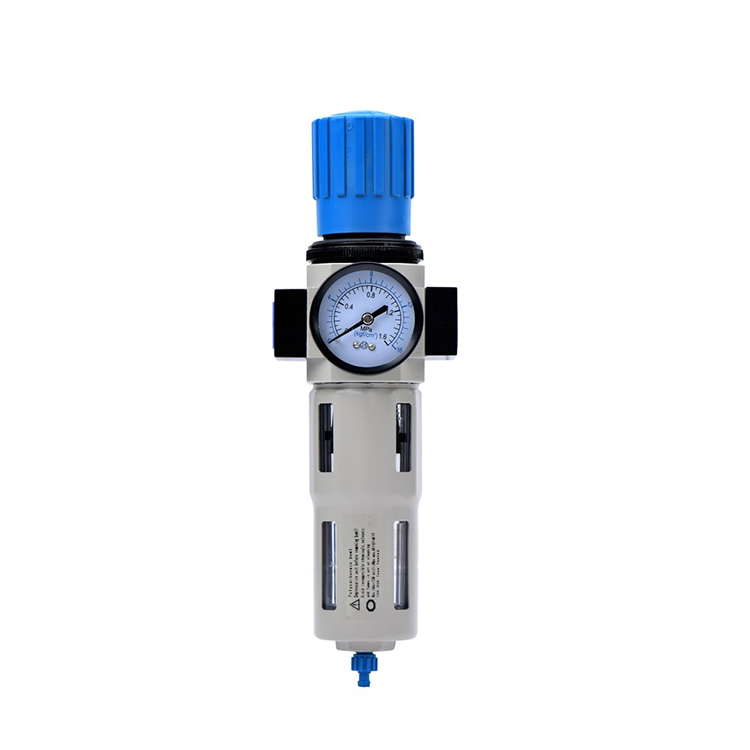

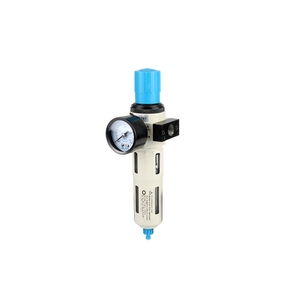

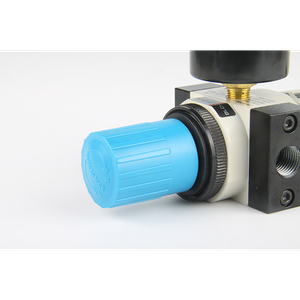

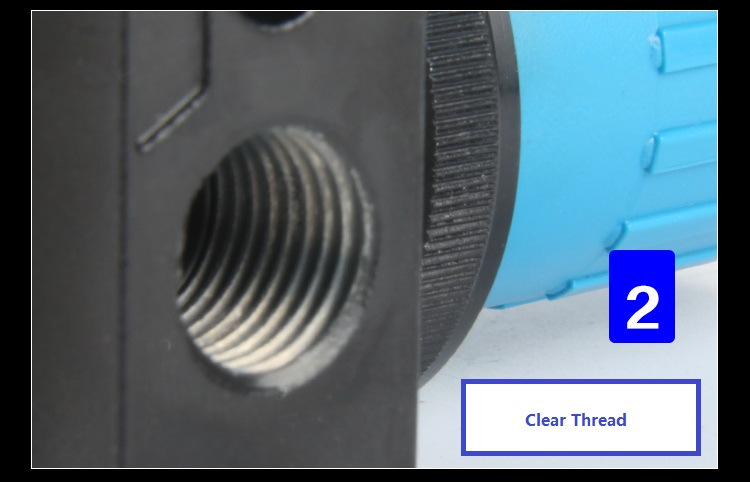

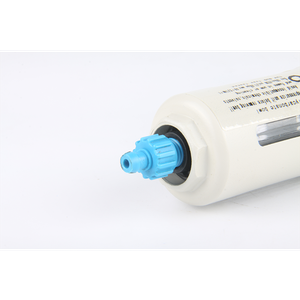

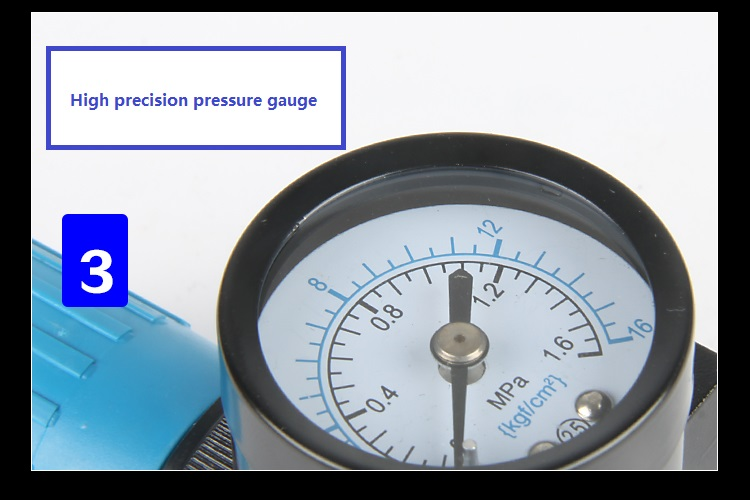

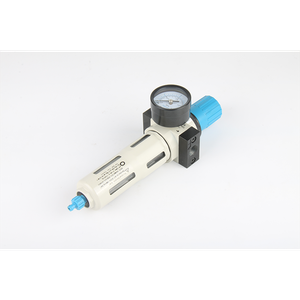

The illustrated filter-regulator has a top adjustment knob, side threaded connections, a pressure gauge and a bowl guard with viewing slots. A drain is positioned at the bottom of the bowl.
The attached Pneumatic Components Catalogue includes the LFR range and other pneumatic components.
