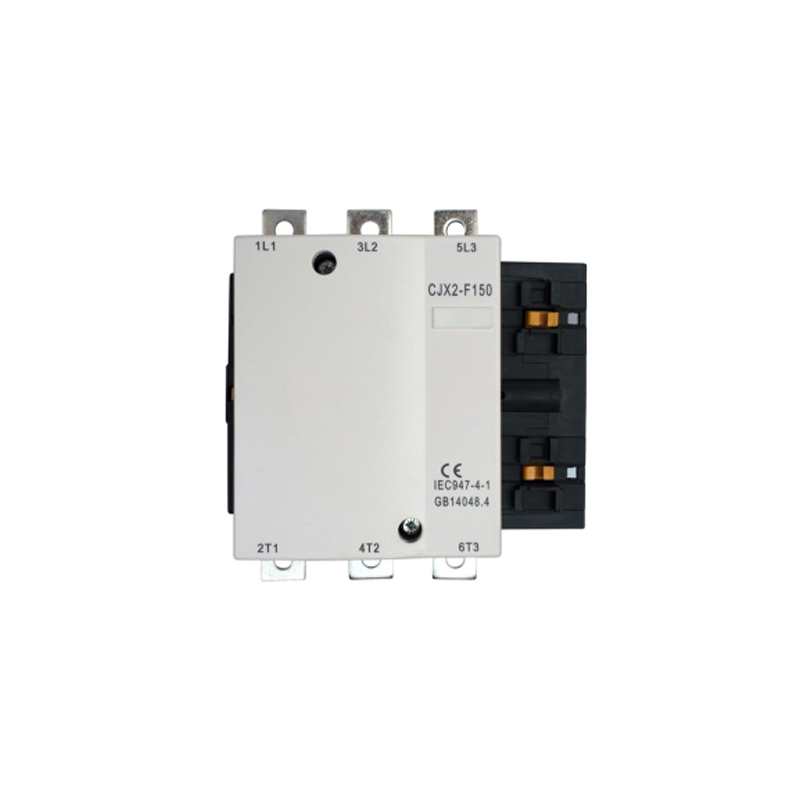

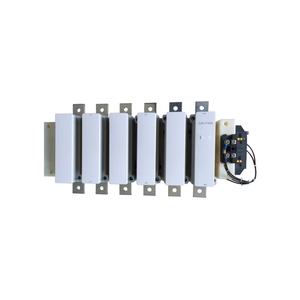

LC1-F CJX2-F AC Contactor Product Series and Specifications

Description

LC1-F CJX2-F AC Contactor is used in AC 50Hz circuits up to 380V for long-distance circuit breaking and frequent motor starting or motor control.

The series is also suitable for controlling distribution circuits with rated current from 200A to 1500A. It conforms to IEC60947-4-1.

Model	AC-3 current	220/230V motor power	380/400V motor power	500V motor power	660/690V motor power	Operating frequency	Electrical life	Mechanical life
LC1-F115 / LC1-F1154	115A	30kW	55kW	75kW	80kW	1200 times/hour	120 x 10⁴	1000 x 10⁴
LC1-F150 / LC1-F1504	150A	40kW	75kW	90kW	100kW	1200 times/hour	120 x 10⁴	1000 x 10⁴
LC1-F185 / LC1-F1854	185A	55kW	90kW	110kW	110kW	600 times/hour	100 x 10⁴	600 x 10⁴
LC1-F225 / LC1-F2254	225A	63kW	110kW	130kW	129kW	600 times/hour	100 x 10⁴	600 x 10⁴
LC1-F265 / LC1-F2654	265A	75kW	132kW	160kW	160kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-F330 / LC1-F3304	330A	100kW	160kW	220kW	220kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-F400 / LC1-F4004	400A	110kW	200kW	280kW	280kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-F500 / LC1-F5004	500A	147kW	250kW	335kW	335kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-F630 / LC1-F6304	630A	200kW	335kW	450kW	450kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-F780 / LC1-F7804	780A	220kW	400kW	475kW	475kW	600 times/hour	80 x 10⁴	600 x 10⁴
LC1-800	800A	250kW	450kW	470kW	470kW	600 times/hour	80 x 10⁴	600 x 10⁴
