LAMTEC BT300 Burner Management System
LAMTEC UI300 Display and Operating Unit

Description

LAMTEC BT300 burner management modules and UI300 display units are control-panel components for burner sequencing, supervision, operation, and diagnostics. The BT300 modules cover BT320, BT330, and BT340 article references, while UI300 provides a compact monochrome operating interface connected through LSB.

BT300 Burner Management Modules

Type Article No. Power supply Maximum backup fuse Power consumption Dimensions (H x W x D) Weight
BT320 241 22 207 230 V +10/-15%, 47-63 Hz; 120 V +10/-15%, 47-63 Hz on request 10 A slow-blow Max. 30 VA 200 x 115 x 61 mm / 7.87 x 4.53 x 2.4 in 1.0 kg / 2.20 lb
BT330 241 22 210
BT340 241 22 213

UI300 Display and Operating Unit

Type Article No. Display Power supply voltage Power consumption Dimensions (H x W x D) Weight
UI300 241 22 205 128 x 64 pixel monochrome display with dimmable white backlight Via LSB 1 W 64 x 112 x 26 mm / 2.52 x 4.41 x 0.94 in 149 g

Product Detail Images

LAMTEC BT300 Burner Management System

LAMTEC BT300 control application

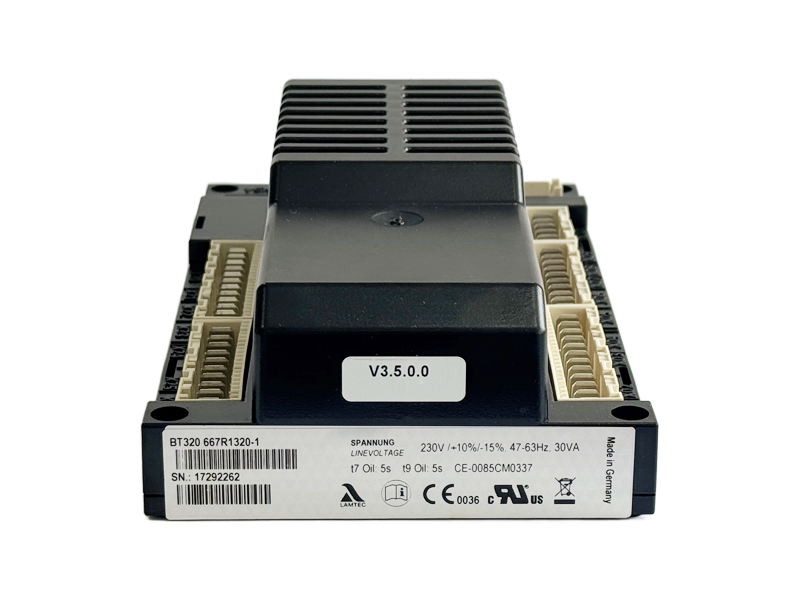

BT300 control housing and terminal rows.
LAMTEC BT300 combustion optimization

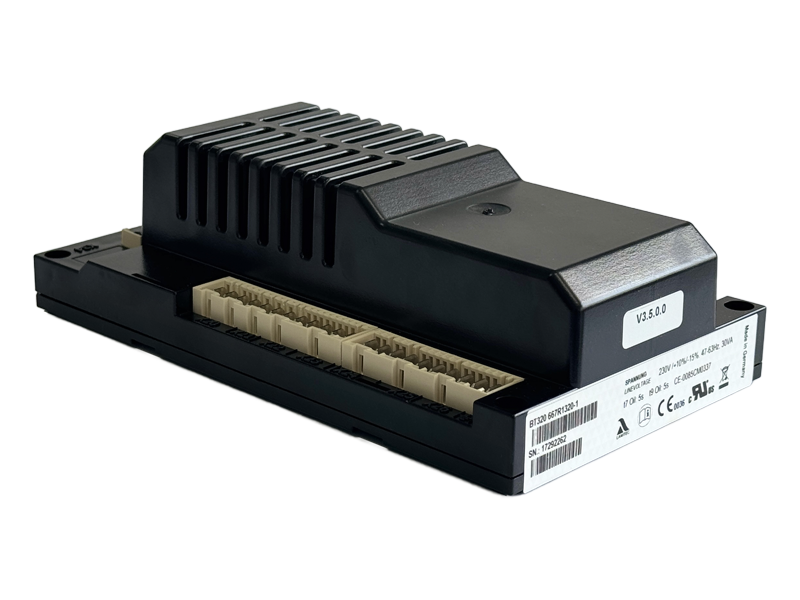

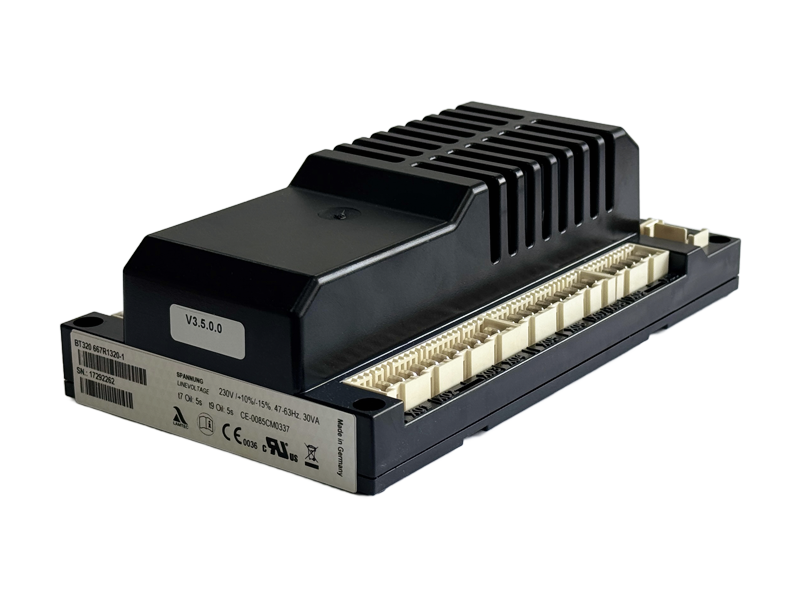

BT300 angled view showing the housing and connector arrangement.
LAMTEC BT300 temperature and monitoring view
BT300 connection layout viewed from the opposite side.
LAMTEC BT300 fuel regulation view
BT300 underside and terminal identification layout.
LAMTEC BT300 monitoring view
BT300 housing profile and connection rows.

LAMTEC UI300 Display and Operating Unit

LAMTEC UI300 control application

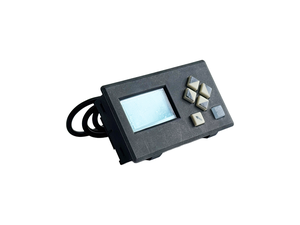

UI300 display face with navigation buttons.
LAMTEC UI300 combustion optimization

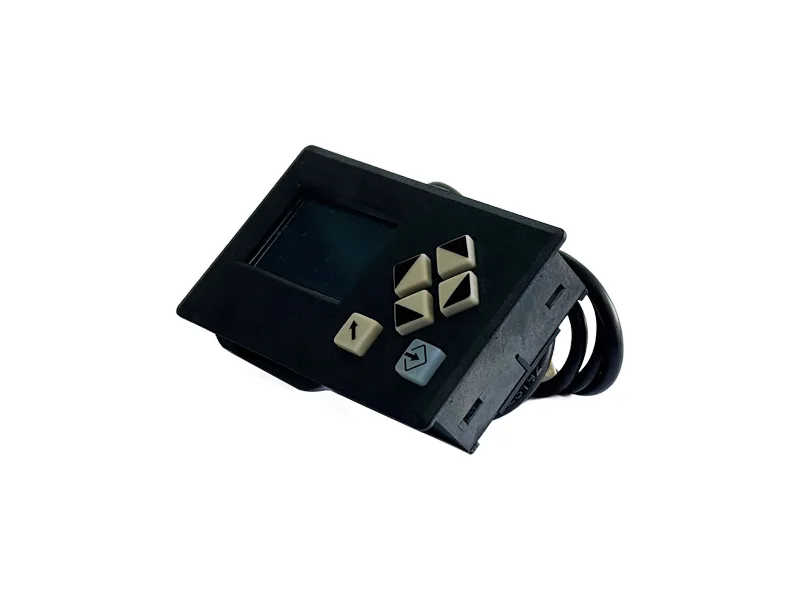

UI300 angled display view and connection cable.
LAMTEC UI300 temperature and monitoring view
UI300 rear housing and identification label.
LAMTEC UI300 fuel regulation view

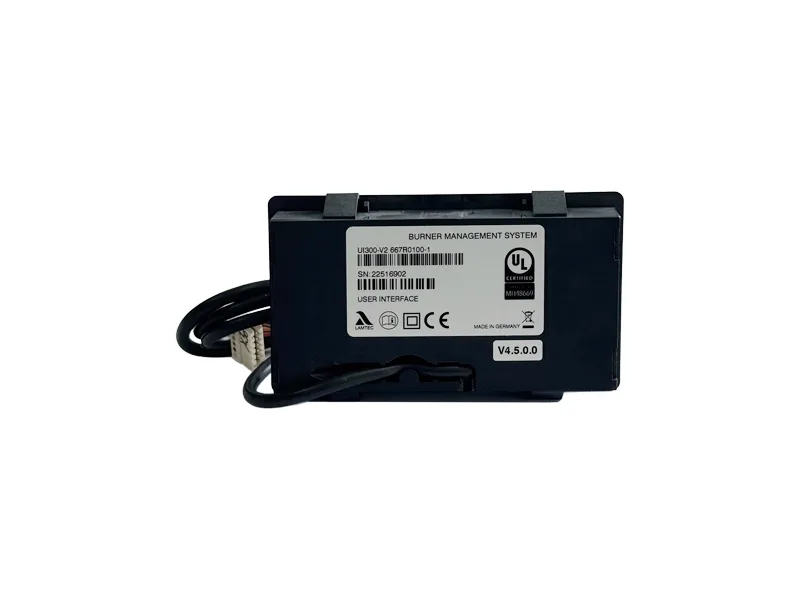

UI300 rear panel and connection cable.
LAMTEC UI300 monitoring view

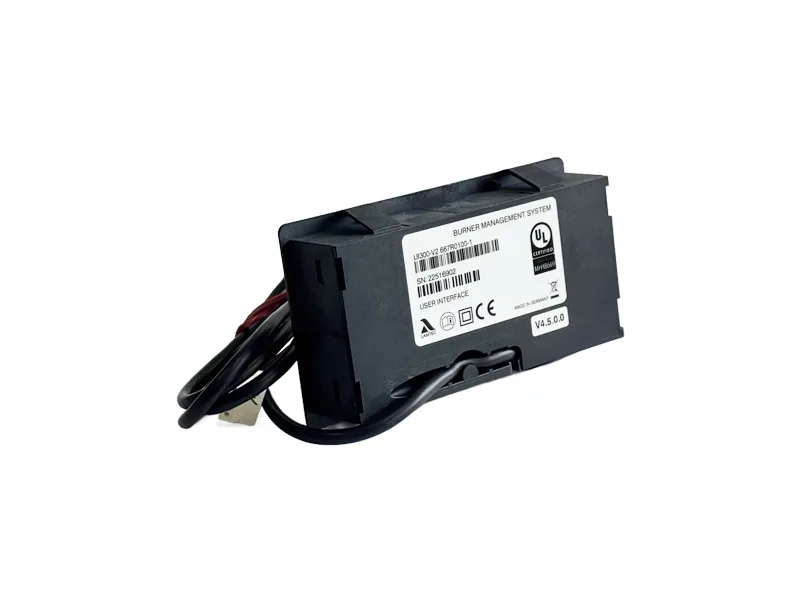

UI300 rear housing viewed from the side.
