L22O Rear Mounting Anti-Vandal Switches | Flush Design

Series Part Number

Part Number:	L22O	F	N	M	S	D	W	12V	LE
Explanation:	Series L22O - Rear mounting for flush version	Actuator F - Flat	Terminal NONE - Solder-lug (2.8x0.5) N - Screw	Function M - Momentary 1-1NO	Material S - Stainless steel	Illumination Style D - Dot illum. R - Ring illum. NONE - non-illum.	LED-Color W - White Y - Yellow B - Blue G - Green R - Red	Illumination Voltage NONE - Base voltage* 3.3V 6V 12V 24V 36V	Graphic NONE - Non-marking LE - Laser etched

Description

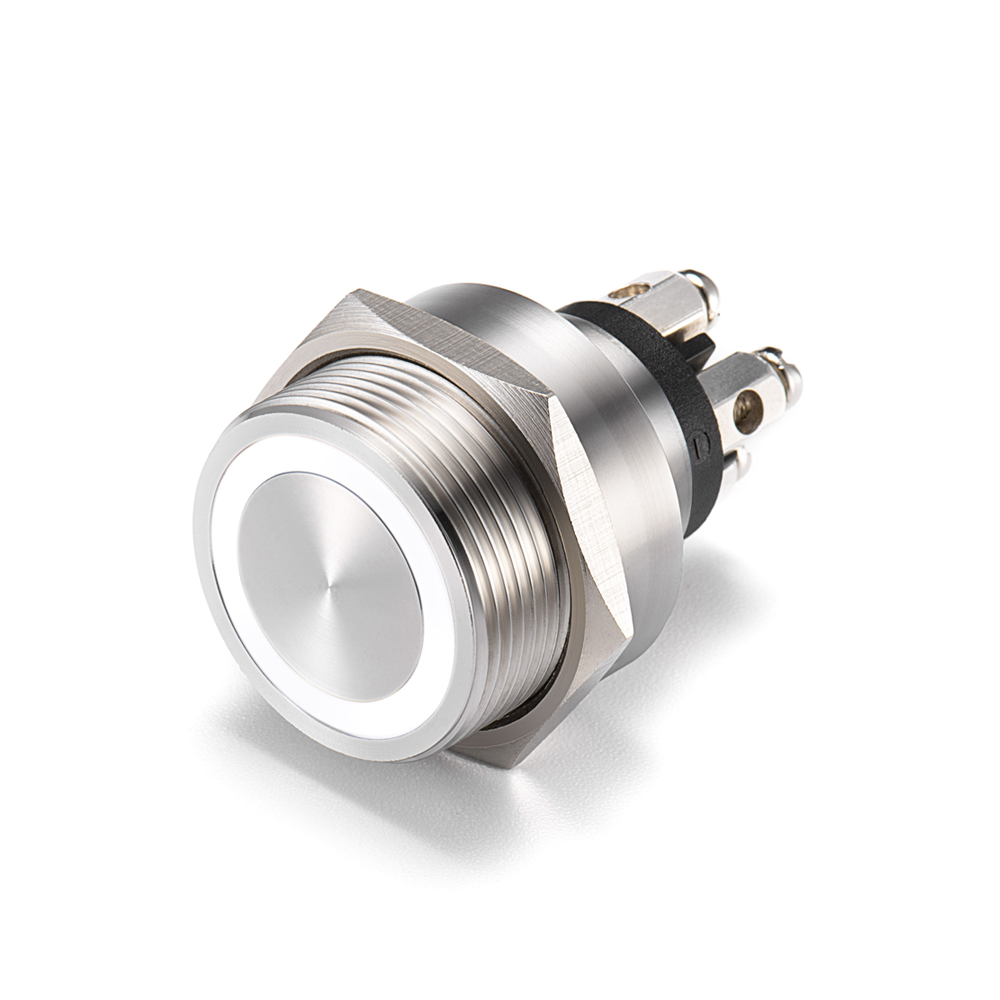

The L22O Rear Mounting Anti Vandal Switch offers a unique aesthetic for 22mm panel installations through its rear-mounting design. This configuration provides a clean, flush appearance while maintaining high durability. It features a robust stainless steel housing and various illumination options, making it ideal for high-end industrial and architectural applications where both form and function are critical.

Key Features

Unique Aesthetic: Rear-mounting design for a clean, professional panel finish.
High Protection: IP65 rated for dust/moisture protection and IK09 impact resistance.

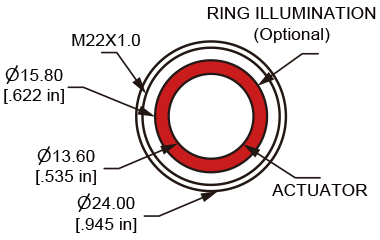

Versatile Illumination: Available in ring or dot illumination with multiple LED color options.
Durable Construction: Long mechanical life of up to 1,000,000 cycles.
Configurable Integration: Options for laser welding, welding ear etching, and pre-wired leads.

Technical Data

Max. Switch Rating	50mA 24VDC
Mechanical Life	1,000,000 Cycles
Electrical Life	50,000 Cycles
Contact Resistance	≤100mΩ
Insulation Resistance	≥1000mΩ
Dielectric Strength	2000VAC
Operating Temp.	-20°C to +55°C
Protection Level	IP65 / IK09
