L19T Metal Switch

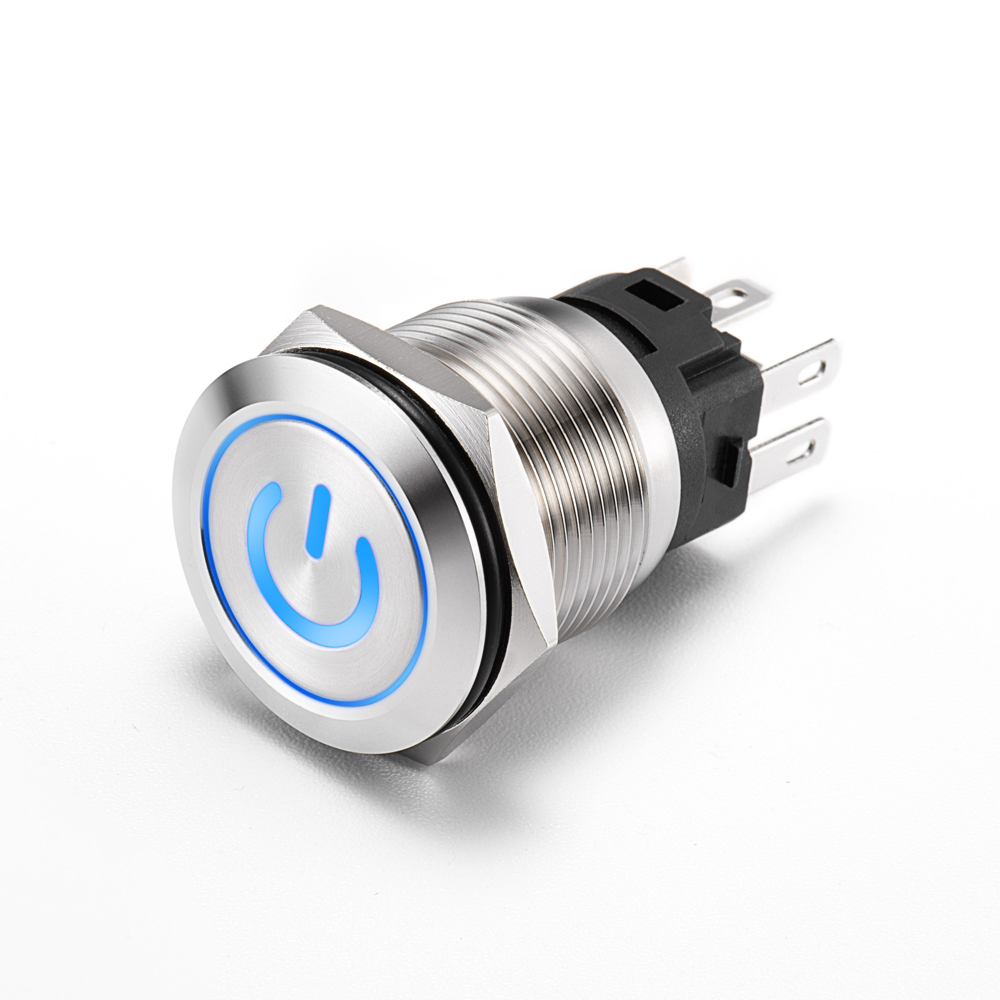

L19T Anti Vandal Switch

Series Part Number

Part Number: L19T F P M S D W 12V LE
Explanation:

Series

L19T - 19mm metal push button switch series

Actuator

F - Flat

Terminal

NONE - Solder-lug (2.8x0.5)
C - Wire-leads 300mm long
P - Plug connector

Function

M - Momentary 1-1NO1NC
Z - Alternated 1-1NO1NC

Material

S - Stainless steel
A - Anodized aluminum

Illumination Style

D - Dot illum.
R - Ring illum.
NONE - non-illum.
PS - Power backlit symbol
PY - Ring illum. & Power backlit symbol

LED-Color

W - White
Y - Yellow
B - Blue
G - Green
R - Red
3A - *Red/ Green/ Blue
+ - Common Anode
NONE - Common Cathode

Illumination Voltage

NONE - Base Voltage*
3.3V - 3.3V illumination voltage
6V - 6V illumination voltage
12V - 12V illumination voltage
24V - 24V illumination voltage
36V - 36V illumination voltage
110V - 110V illumination voltage
220V - 220V illumination voltage

Graphic

NONE - Non-marking
LE - Laser etched

Description

The L19T anti-vandal waterproof switch is designed to endure harsh environmental conditions and resist tampering. This 19mm rugged switch is ideal for access control applications, including elevators, emergency systems, parking management, and high-traffic vending machines. Its durable construction and multiple style options offer a high-quality solution for various industrial control panel requirements.

Key Features

  • Harsh Condition Durability: Rugged design resistant to dust, moisture, and tampering.
  • Advanced Illumination: Supports dot, ring, symbol, or backlit illumination, including RGB LED options.
  • High Reliability: Long life cycle suitable for critical infrastructure and public-facing systems.
  • Superior Protection: IP65 rated for dust and moisture protection, with IK09 impact resistance.

Technical Data

Max. Switch Rating 3A 250VAC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000MΩ
Dielectric Strength 2000VAC
Operating Temp. -20°C to +55°C
Mechanical Life 500,000 Cycles
Electrical Life 30,000 Cycles
Protection Level IP65 / IK09

Function & Layout

L19T Functions
L19T contact and illumination circuit arrangements, including RGB illumination.

Order Configuration

L19T Order Code
L19T ordering-code segments and available switch and illumination options.

Terminals & Actuators

L19T Terminals
L19T terminal identification for switch contacts and illumination.
L19T Actuator Options
Flat and raised actuator profiles with their height dimensions.

Illumination & Installation

L19T Illumination Options
L19T symbol, dot and ring illumination layouts with lens dimensions.

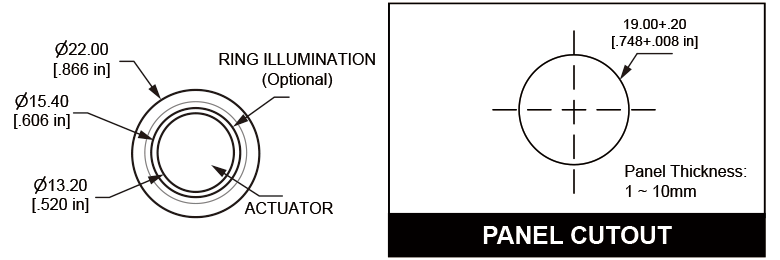

L19T Panel Cutout
L19T actuator outline, panel cutout and panel thickness range.

Dimensions

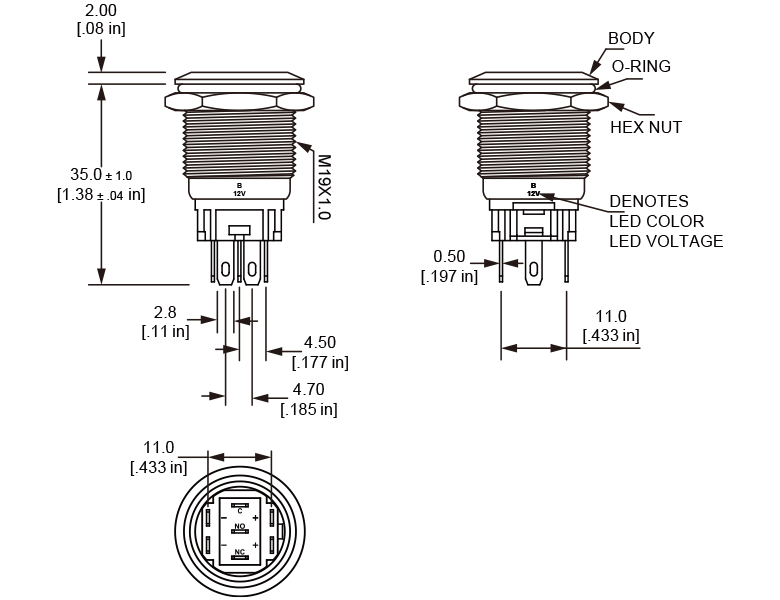

L19T Dimensions
L19T body, mounting thread and terminal dimensions.
