L16T 16mm Anti-Vandal Push Button Switches for Panels

Series Part Number

Part Number:	L16T	F	P	M	S	D	W	12V	LE
Explanation:	Series L16T - 16mm metal push button switch series	Actuator F - Flat H - Raised	Terminal NONE - Solder-lug (2.8x0.5) C - Wire-leads 300mm long P - Plug connector	Function M - Momentary 1- 1NO1NC Z - Latching 1- 1NO1NC	Material S - Stainless steel N - Nickel plated brass A - Anodized aluminum	Illumination Style D - Dot illum. R - Ring illum. NONE - non-illum. PS - Power backlit symbol PY - Ring illum. & Power backlit symbol	Led-Color W - White Y - Yellow B - Blue G - Green R - Red 3A - Red/ Green/ Blue (+ -: Common Anode* NONE: Common Cathode)	Illumination Voltage NONE - Base Voltage* 3.3V - 3.3V illumination voltage 6V - 6V illumination voltage 12V - 12V illumination voltage 24V - 24V illumination voltage 36V - 36V illumination voltage 110V - 110V illumination voltage 220V - 220V illumination voltage	Graphic NONE - Non-marking LE - Laser etched

Description

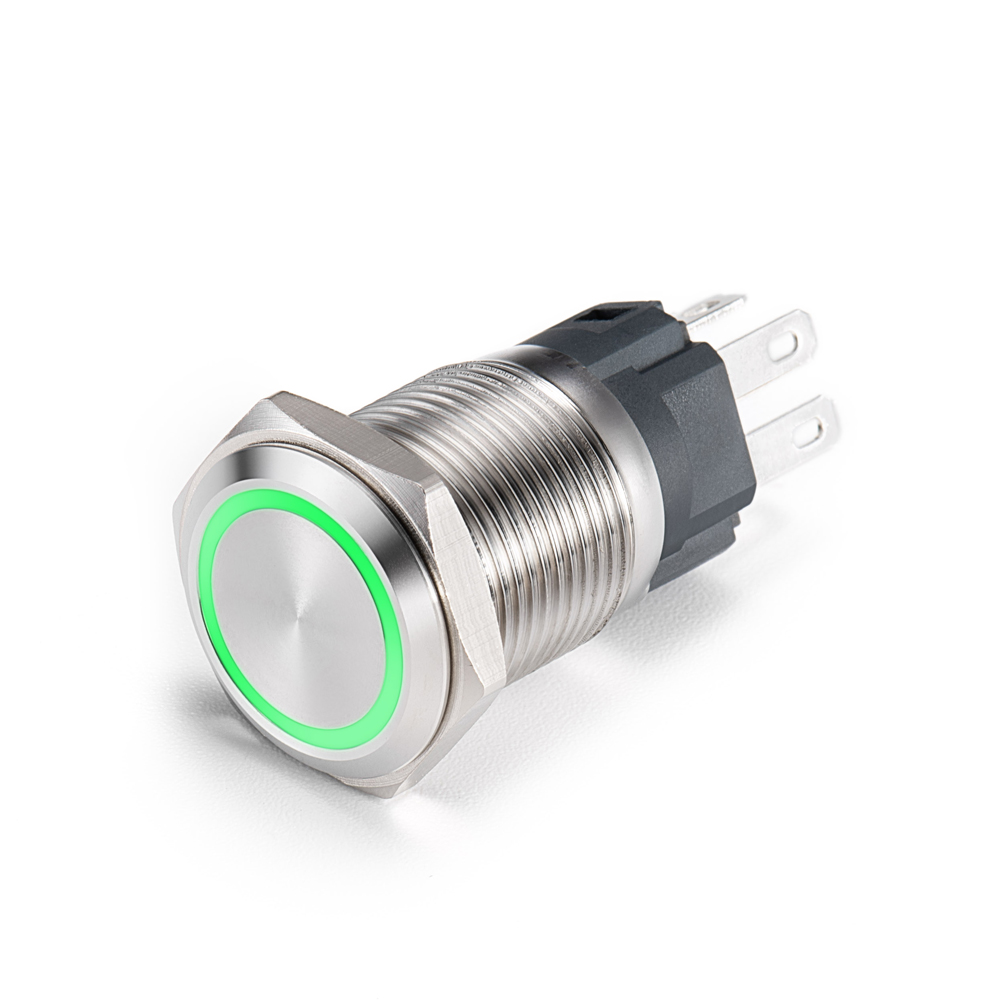

The L16T series is a rugged 16mm anti-vandal push button switch engineered to withstand harsh environments and resist malicious damage. Its durable design and high flexibility make it an ideal high-quality solution for control panels in various industrial applications, including access control, elevators, parking management systems, and vending machines.

Key Features

High Reliability: Designed for long operational life in demanding conditions.

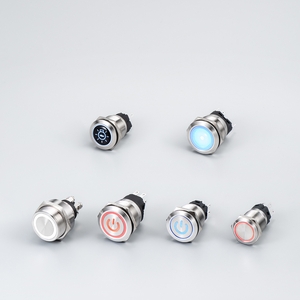

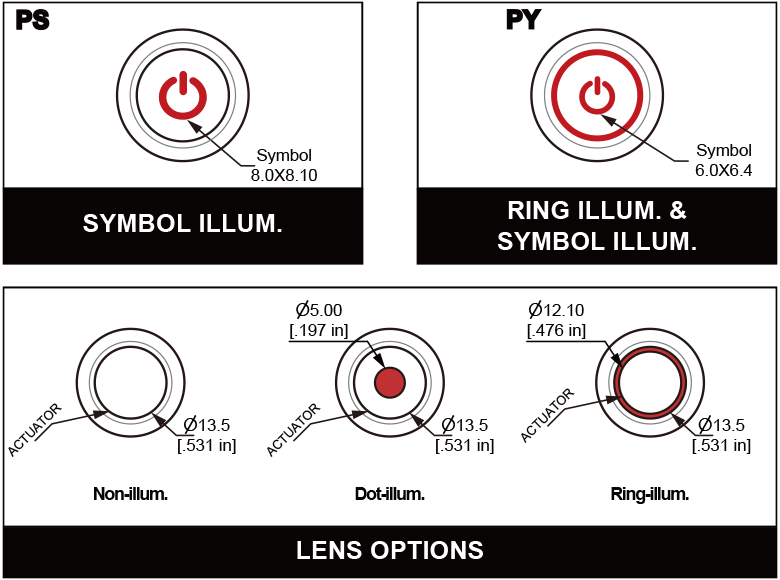

Advanced Illumination: Options for dot, ring, symbol, or backlit illumination, including RGB LED variants.
Superior Protection: IP65 rated for dust and moisture resistance, with IK09 impact resistance.
Flexible Configuration: Multiple function options and actuator styles (Stainless Steel or Anodized Aluminum).

Technical Data

Max. Switch Rating	3A 250VAC
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	2000VAC
Operating Temp.	-20°C to +55°C
Mechanical Life	500,000 Cycles
Electrical Life	30,000 Cycles
Protection Level	IP65 / IK09
