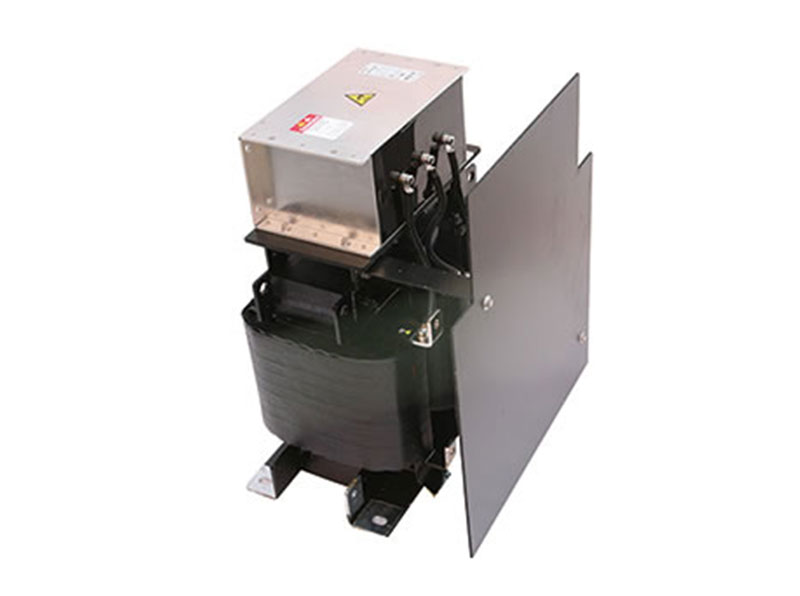

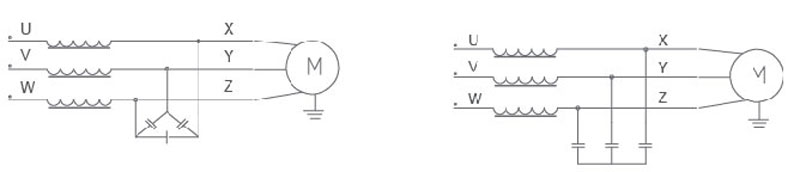

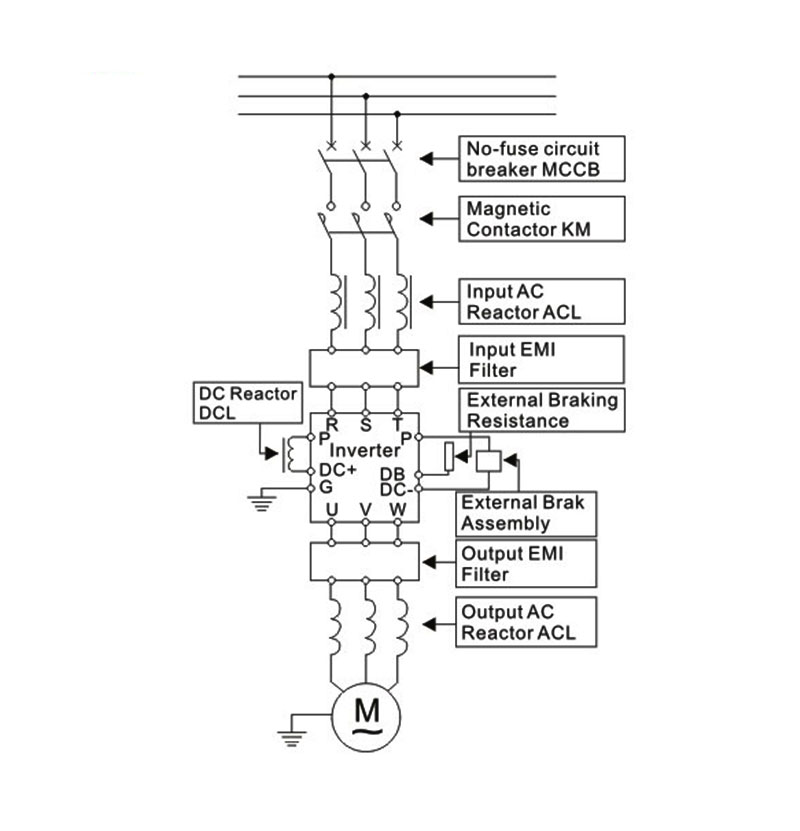

The sine-wave filter installs at the inverter output and converts PWM voltage into a smoother motor waveform. It reduces dv/dt, motor overvoltage, cable-related capacitance and resonance, eddy-current loss and audible motor noise.
The captured design uses foil windings, copper-bar terminals, F-class or higher insulation and vacuum pressure impregnation. Select a 380V model by motor power, rated current, dimensions and cable/application conditions.

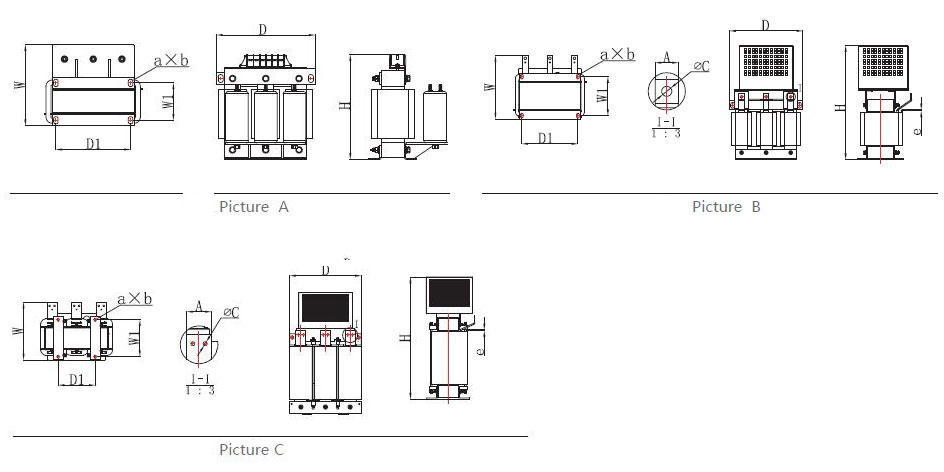

| Type | Power (kW) | Rated Current (A) | Picture | Dimension (±0.5mm) | Gross weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|
| D*H*W(mm) | D1*W1 (mm) | a*b (mm) | ∮c c(mm) | A*e (mm) | |||||
| OSF-0015-EISA-E4M0 | 5.5 | 15A | A | 250*270*200 | 182*91 | 11*18 | / | / | 18 |
| OSF-0020-EISA-E3M0 | 7.5 | 20A | 250*280*220 | 182*100 | 11*18 | / | / | 22 | |
| OSF-0030-EISA-E2M0 | 11 | 30A | 250*270*230 | 182*106 | 11*18 | / | / | 22 | |
| OSF-0040-EISA-E1M4 | 15 | 40A | 250*280*240 | 182*121 | 11*18 | / | / | 26 | |
| OSF-0050-EISA-E1M2 | 18.5 | 50A | 290*290*230 | 214*110 | 11*18 | / | / | 26 | |
| OSF-0060-EISA-E1M0 | 22 | 60A | 290*290*300 | 214*120 | 11*18 | / | / | 31 | |
| OSF-0080-EISA-EM80 | 30 | 80A | 320*320*320 | 243*142 | 12*20 | / | / | 45 | |
| OSF-0090-EISA-EM65 | 37 | 90A | B | 320*500*270 | 243*159 | 12*20 | Φ11 | 25*5 | 59 |
| OSF-0120-EISA-EM52 | 45 | 120A | 320*510*300 | 243*169 | 12*20 | Φ11 | 25*5 | 62 | |
| OSF-0150-EISA-EM45 | 55 | 150A | 395*590*295 | 225*175 | 15*25 | Φ11 | 25*5 | 77 | |
| OSF-0200-EISA-EM35 | 75 | 200A | 400*620*320 | 225*200 | 15*25 | Φ11 | 30*5 | 94 | |
| OSF-0250-EISA-EM30 | 110 | 250A | 400*680*345 | 225*225 | 15*25 | Φ11 | 30*5 | 110 | |
| OSF-0300-EISA-EM24 | 132 | 300A | 405*720*360 | 225*225 | 15*25 | Φ11 | 30*6 | 121 | |
| OSF-0360-EISA-EM20 | 160 | 360A | 430*720*390 | 245*250 | 15*25 | Φ13 | 40*5 | 158 | |
| OSF-0450-EISA-EM15 | 200 | 450A | 430*720*400 | 250*250 | 15*25 | Φ14 | 40*5 | 169 | |
| OSF-0500-EISA-EM15 | 250 | 500A | 460*800*390 | 270*250 | 15*25 | Φ14 | 50*5 | 197 | |
| OSF-0600-EISA-EM12 | 280 | 600A | 480*860*400 | 275*250 | 15*25 | Φ14 | 50*5 | 243 | |
| OSF-0660-EISA-EM10 | 315 | 660A | 470*780*440 | 300*250 | 15*25 | Φ14 | 50*5 | 257 | |
| OSF-0750-EISA-EM09 | 355 | 750A | 550*900*440 | 275*300 | 15*25 | Φ14 | 50*10 | 284 | |
| OSF-0900-EISA-E75U | 400 | 900A | C | 550*940*470 | 275*300 | 15*25 | Φ13 | 60*10 | 317 |
| OSF-1000-EISA-E60U | 450 | 1000A | 550*945*470 | 275*300 | 15*25 | Φ13 | 60*10 | 274 | |
| OSF-1200-EISA-E65U | 500 | 1200A | 600*1010*490 | 300*300 | 15*25 | Φ13 | 80*8 | 412 | |
