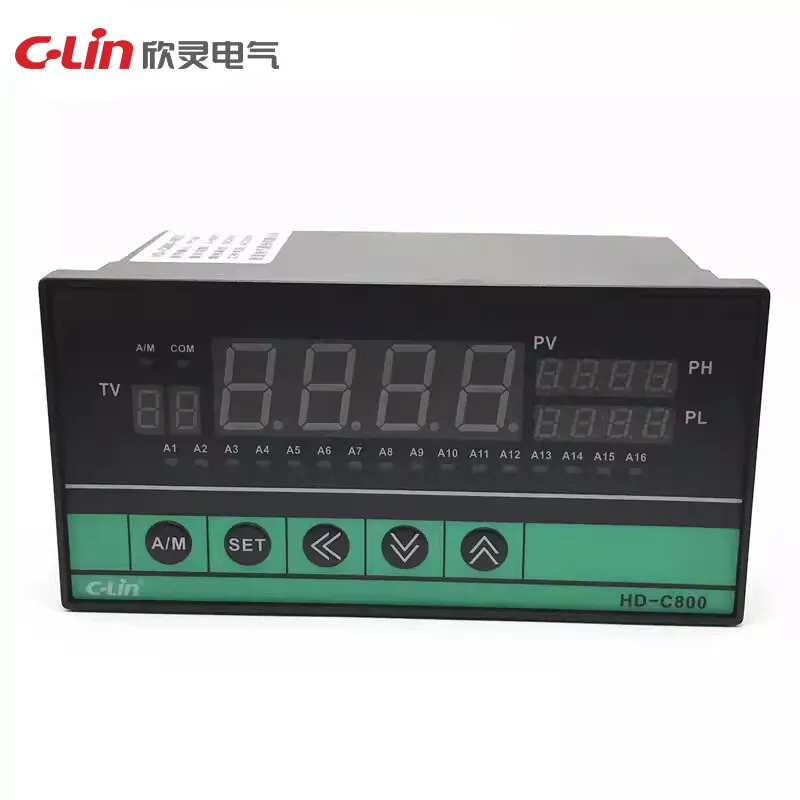

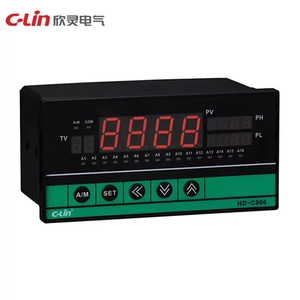

HD-C800 is a multi-point temperature itinerant detector for equipment panels that need one instrument to monitor several temperature channels. It supports automatic or manual channel scanning, upper and lower alarm outputs, and optional RS485 communication for remote monitoring.
| Parameter | Specification |
|---|---|
| Model | HD-C800 |
| Measurement Signal | Thermocouple K, E; RTD Pt100, Cu50 |
| Inspection Points | 1-8 temperature display channels |
| Inspection Mode | Automatic inspection and manual inspection |
| Inspection Time | Automatic inspection time settable from 0 to 100s |
| Alarm Mode | Upper-limit alarm and lower-limit alarm |
| Alarm Output | Two relay alarm outputs; control hysteresis adjustable |
| Contact Capacity | Passive AC220V 3A resistive load |
| Communication Interface | RS485 optional |
| Power Supply | AC220V |
| Dimensions | 160 x 80 x 103.5 mm |
| Panel Cutout | 152 x 76 mm |
| Installation Method | Panel mounting |
| Typical Use | Multi-point temperature monitoring for grain depots, switchgear assemblies, motor-protection locations and similar equipment |
