Intelligent Temperature Controller XMT Series


Description

XMT Series intelligent temperature controllers cover a broad set of panel formats for heating equipment such as ovens, drying boxes and plastic-processing machines. The series includes analog-style and digital PID controllers, with each model selected by display format, control method, sensor input and panel cutout.

Common Parameters

ParameterSpecification
Installation MethodPanel mounting
Typical UseTemperature control for drying boxes, ovens, plastic machinery and similar heating equipment
Sensor TypesThermocouple and RTD input options, depending on model
Control OutputsRelay on/off, PID relay control or PID SSR drive control depending on model

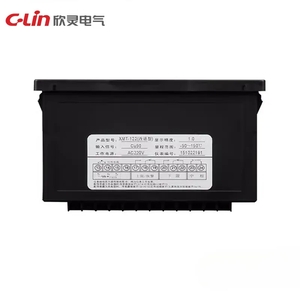

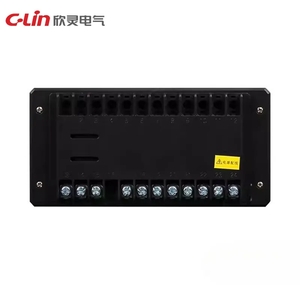

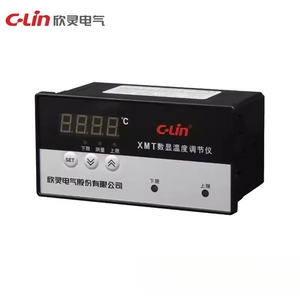

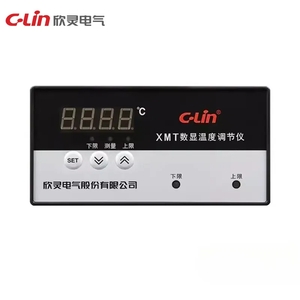

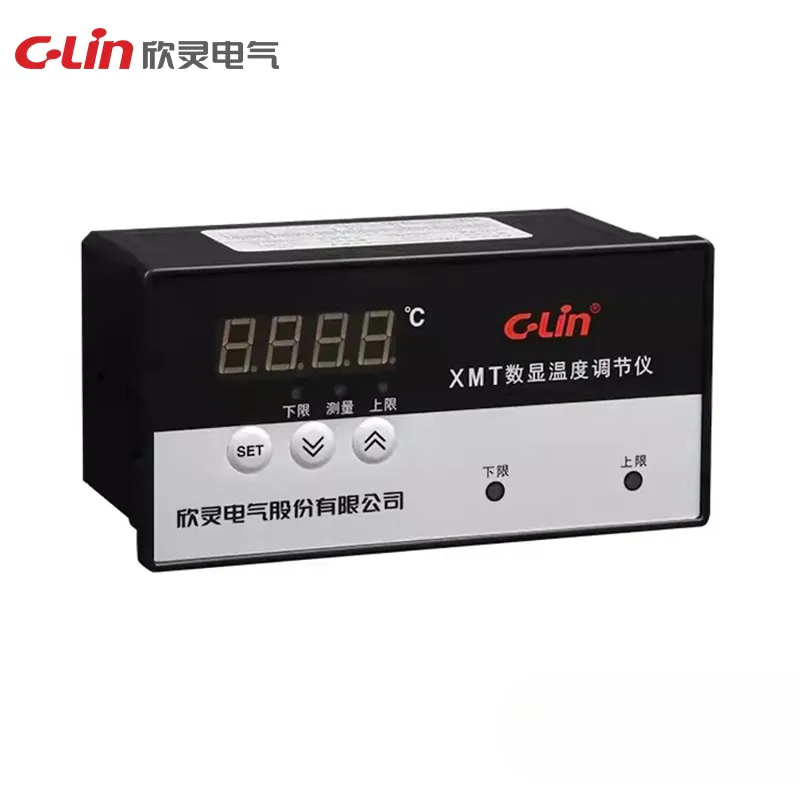

XMT-121

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeThree-position relay contact on/off control; hysteresis heating or cooling control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions160 x 80 x 92 mm
Panel Cutout151 x 75 mm

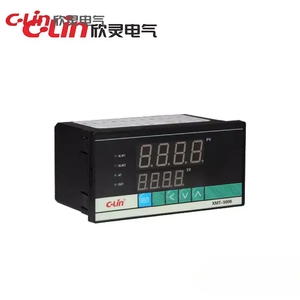

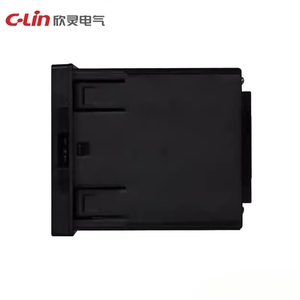

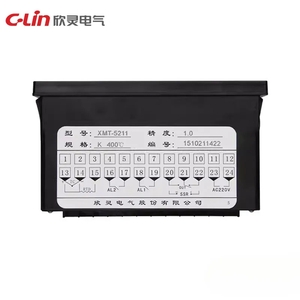

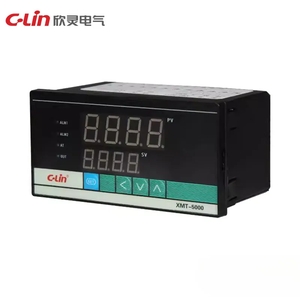

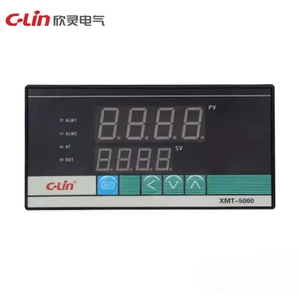

XMT-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne or two alarm relay contact outputs
Power SupplyAC220V
Additional FunctionRS485 communication option
Dimensions160 x 80 x 94 mm
Panel Cutout152 x 76 mm

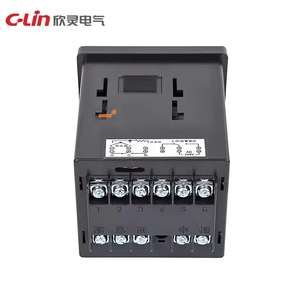

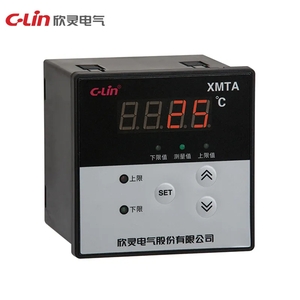

XMTA-2201

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeThree-position relay contact on/off control; hysteresis heating or cooling control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions96 x 96 x 97 mm
Panel Cutout92 x 92 mm

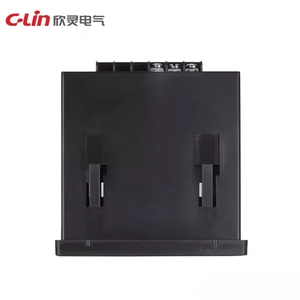

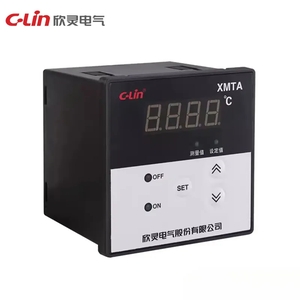

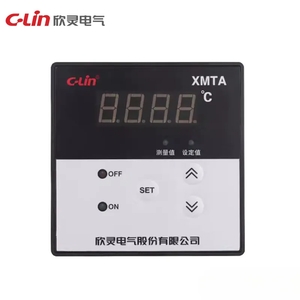

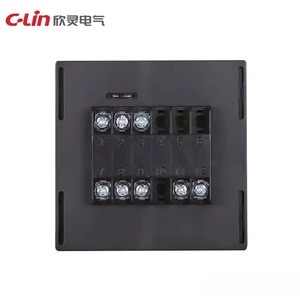

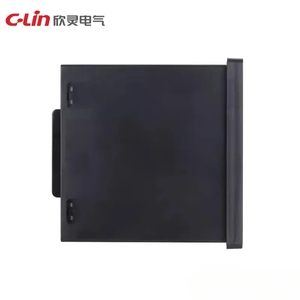

XMTA-3001

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeTwo-position relay contact on/off control; time-proportional relay contact on/off control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions96 x 96 x 99 mm
Panel Cutout92 x 92 mm

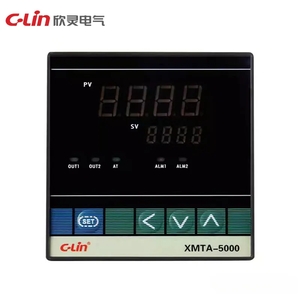

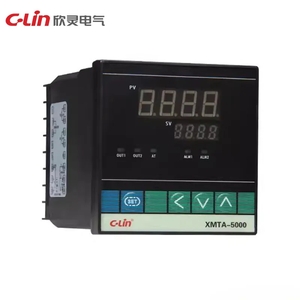

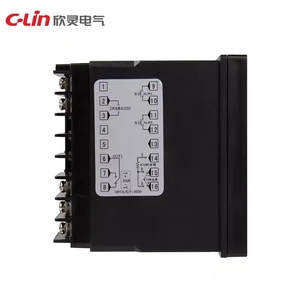

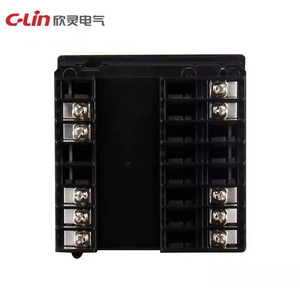

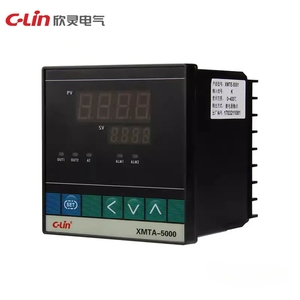

XMTA-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne or two alarm relay contact outputs
Power SupplyAC220V
Dimensions96 x 96 x 91 mm
Panel Cutout92 x 92 mm

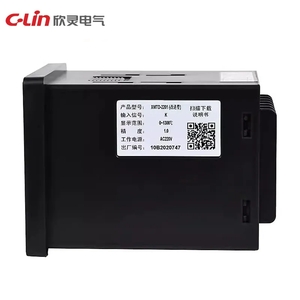

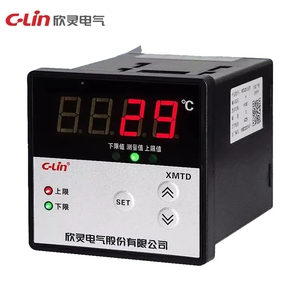

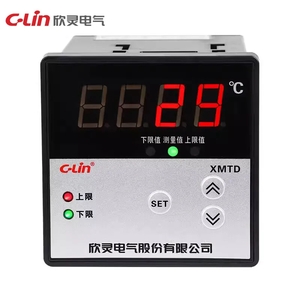

XMTD-2201

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeThree-position relay contact on/off control; hysteresis heating or cooling control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions72 x 72 x 90 mm
Panel Cutout68 x 68 mm

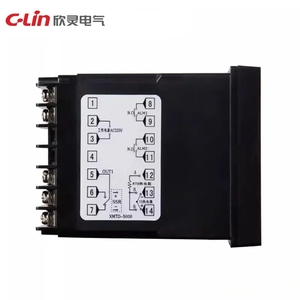

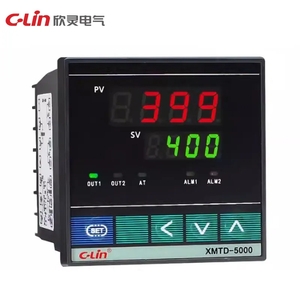

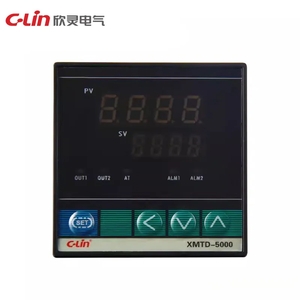

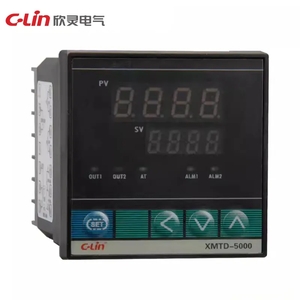

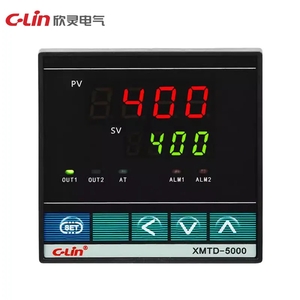

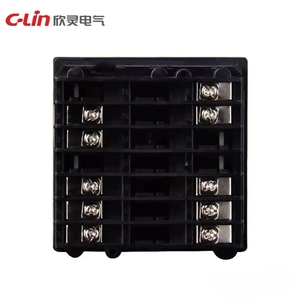

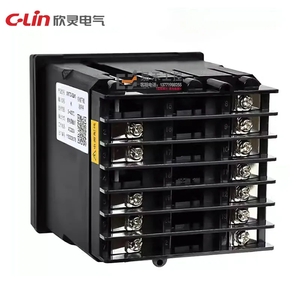

XMTD-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne or two alarm relay contact outputs
Power SupplyAC220V
Dimensions72 x 72 x 91 mm
Panel Cutout68 x 68 mm

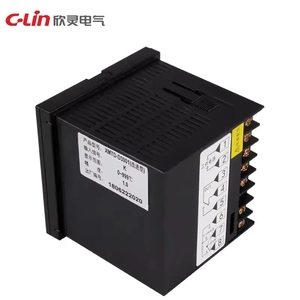

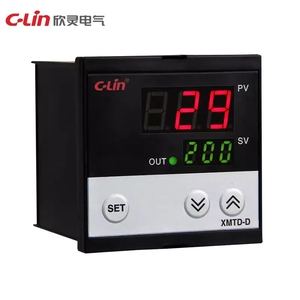

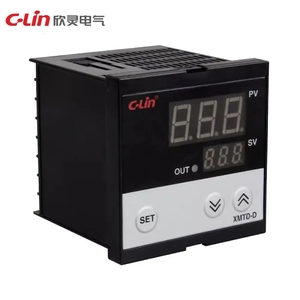

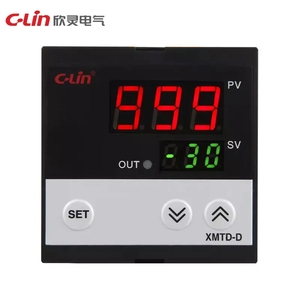

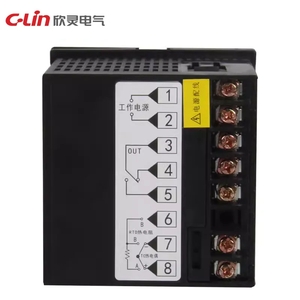

XMTD-D

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeTwo-position relay contact on/off control; time-proportional relay contact on/off control
Power SupplyAC220V or AC380V
Dimensions72 x 72 x 72 mm
Panel Cutout68 x 68 mm

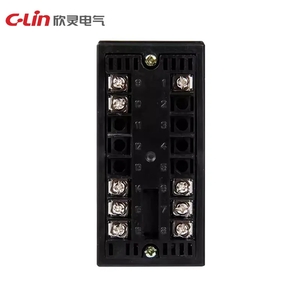

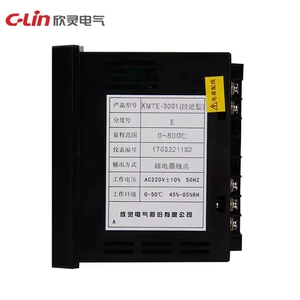

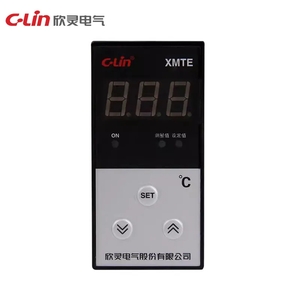

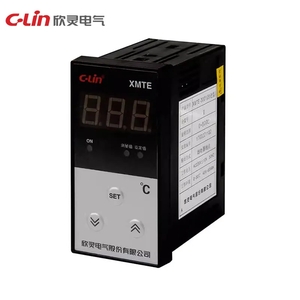

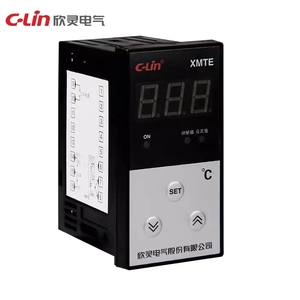

XMTE-3001

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeTwo-position relay contact on/off control; time-proportional relay contact on/off control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions48 x 96 x 82 mm
Panel Cutout45 x 92 mm

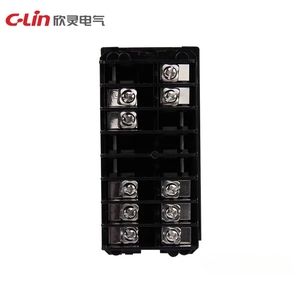

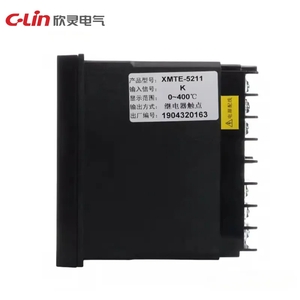

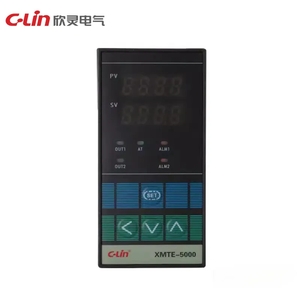

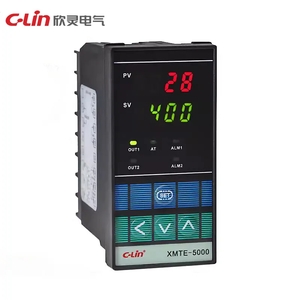

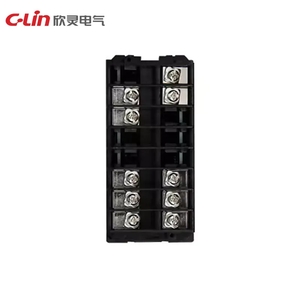

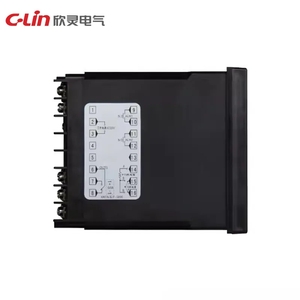

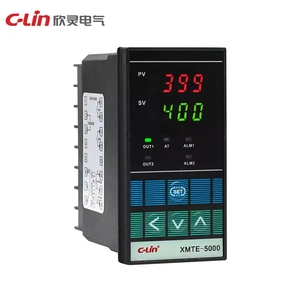

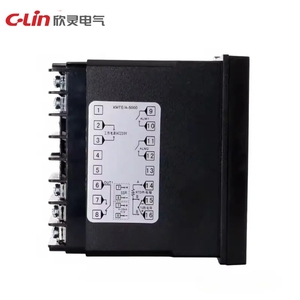

XMTE-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne or two alarm relay contact outputs
Power SupplyAC220V
Dimensions48 x 96 x 91 mm
Panel Cutout45 x 92 mm

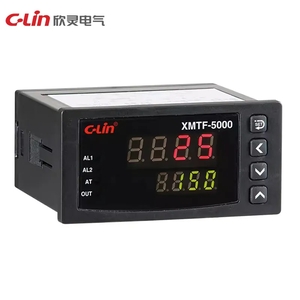

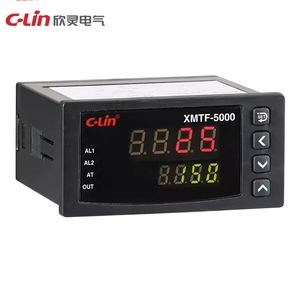

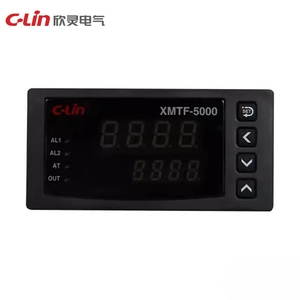

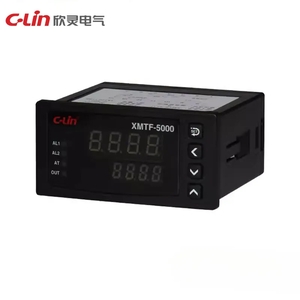

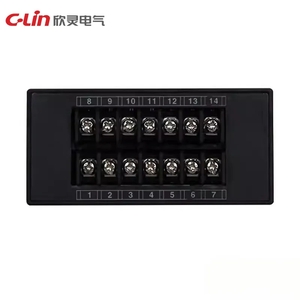

XMTF-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne or two alarm relay contact outputs
Power SupplyAC220V
Dimensions96 x 48 x 90 mm
Panel Cutout92 x 44 mm

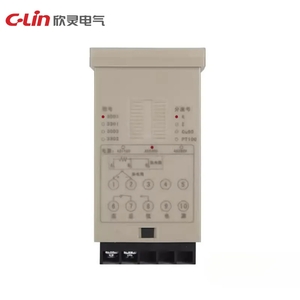

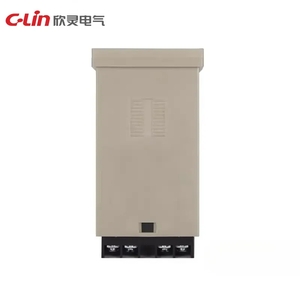

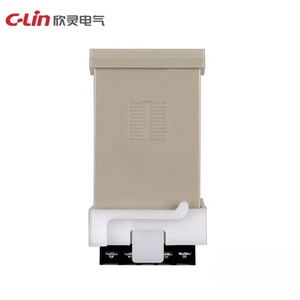

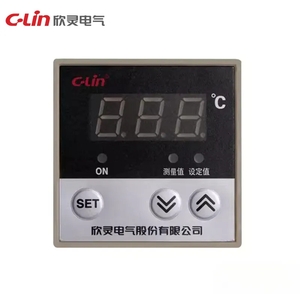

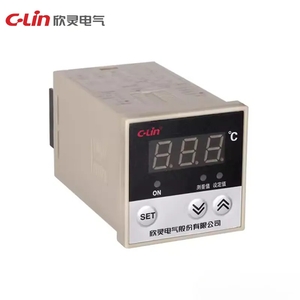

XMTG-3000

ParameterSpecification
Input SignalThermocouple K, E; RTD Pt100, Cu50
Measurement AccuracyClass 1.0 or better
Control ModeTwo-position relay contact on/off control; time-proportional relay contact on/off control
Setting MethodTouch switch setting
Power SupplyAC220V or AC380V
Dimensions48 x 48 x 90 mm
Panel Cutout45 x 45 mm

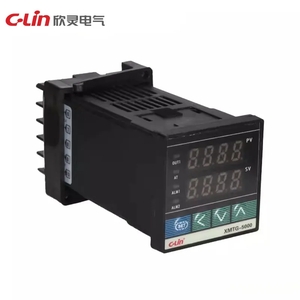

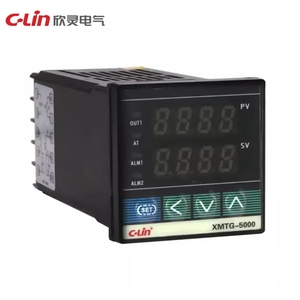

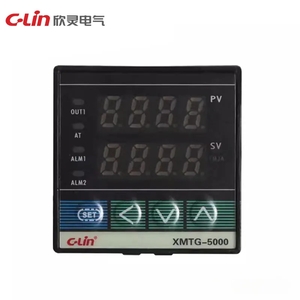

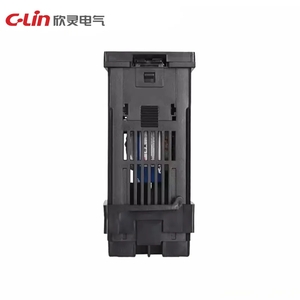

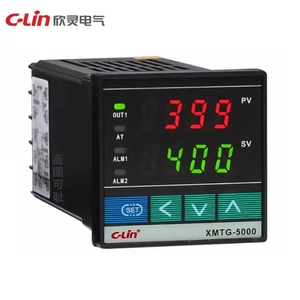

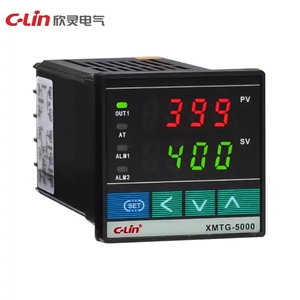

XMTG-5000

ParameterSpecification
Input SignalThermocouple K, E, J; RTD Pt100, Cu50
Control ModeTwo-position relay on/off control, PID relay on/off control or PID SSR drive voltage control
Alarm OutputOne alarm relay contact output
Power SupplyAC220V
Dimensions48 x 48 x 107 mm
Panel Cutout45 x 45 mm
