HY Series intelligent temperature controllers provide panel-mounted temperature measurement and control for heating equipment and process machines. The models share the same sensor and control platform, and differ mainly by front size, cutout size and alarm-output configuration.
Common Parameters
| Parameter | Specification |
|---|
| Input Signal | Thermocouple K, E, J; RTD Pt100, Cu50 |
| Control Mode | Two-position relay on/off control, PID relay on/off control or PID SSR drive voltage control |
| Power Supply | AC100-240V |
| Typical Use | Temperature control for extruders, reflow soldering machines, shoe machines and similar equipment |

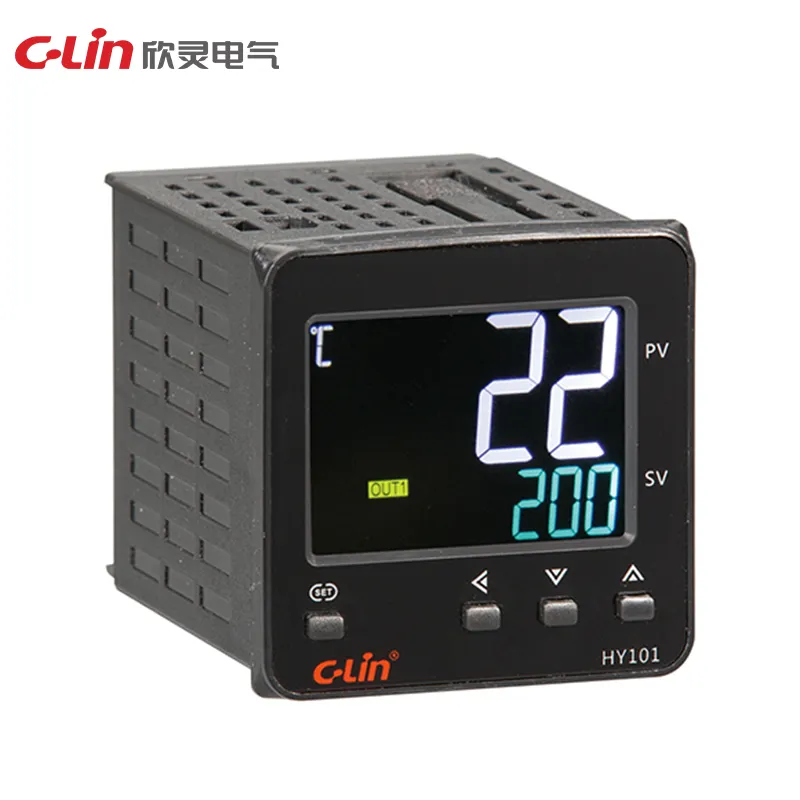

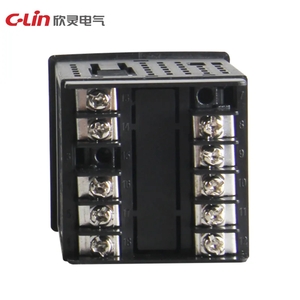

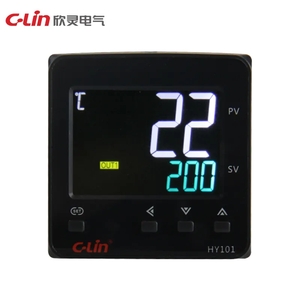

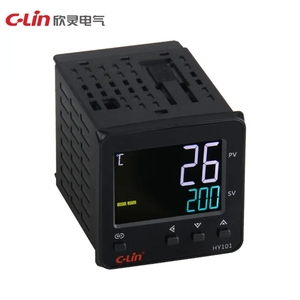

HY101
| Parameter | Specification |
|---|
| Alarm Output | One alarm relay contact output |
| Dimensions | 48 x 48 x 78 mm |
| Panel Cutout | 45 x 45 mm |

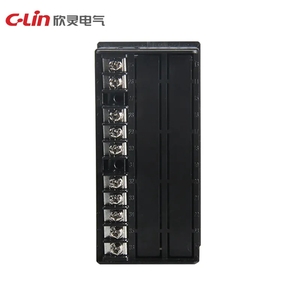

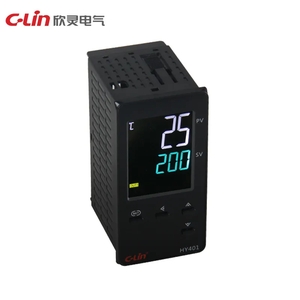

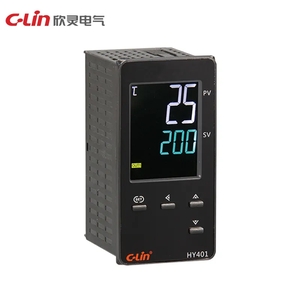

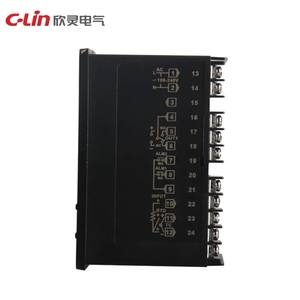

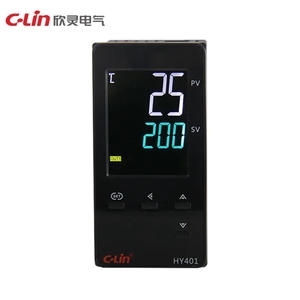

HY401
| Parameter | Specification |
|---|
| Alarm Output | One or two alarm relay contact outputs |
| Dimensions | 48 x 96 x 78 mm |
| Panel Cutout | 45 x 92 mm |

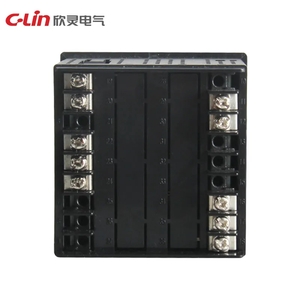

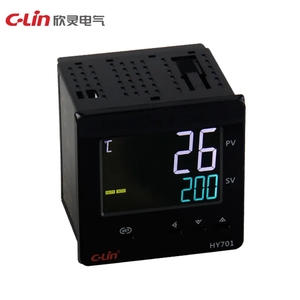

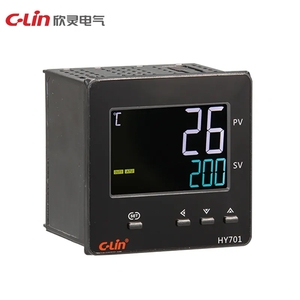

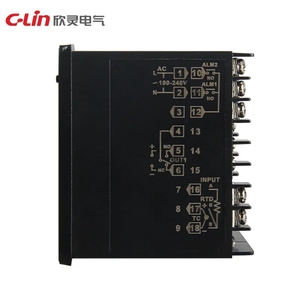

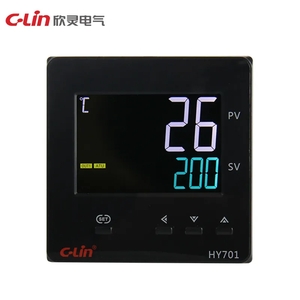

HY701
| Parameter | Specification |
|---|
| Alarm Output | One or two alarm relay contact outputs |
| Dimensions | 72 x 72 x 78 mm |
| Panel Cutout | 68 x 68 mm |
