HR Series intelligent temperature controllers are used for panel temperature control in heating equipment and processing machines. The series uses AC100-240V supply, relay alarm outputs and configurable control modes, with each model selected mainly by panel size and sensor input range.
Common Parameters
| Parameter | Specification |
|---|
| Power Supply | AC100-240V |
| Control Mode | Two-position relay on/off control, PID relay on/off control or PID SSR drive voltage control |
| Alarm Output | ALM1 and ALM2 relay outputs |
| Installation Method | Panel mounting |
| Typical Use | Temperature control for extruders, reflow soldering machines, shoe machines and similar equipment |

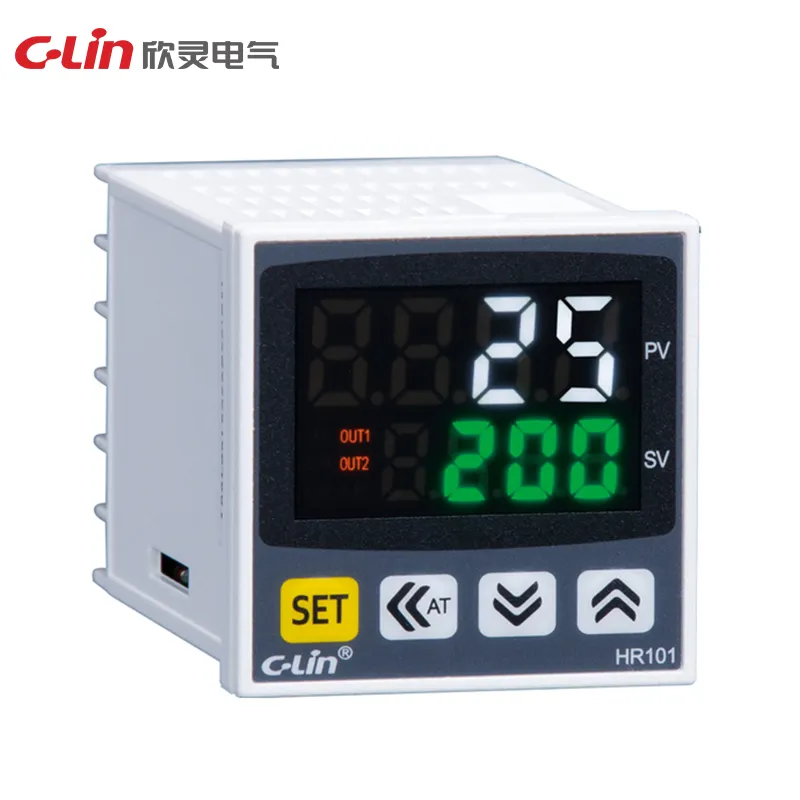

HR101
| Parameter | Specification |
|---|
| Input Signal | Thermocouple K, E, J; RTD Pt100 |
| Dimensions | 48 x 48 x 78 mm |
| Panel Cutout | 45 x 45 mm |

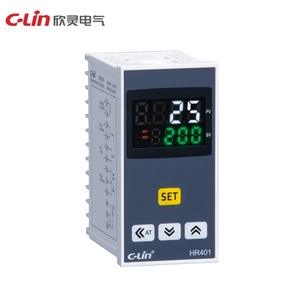

HR401
| Parameter | Specification |
|---|
| Input Signal | Thermocouple K, E, J; RTD Pt100, Cu50 |
| Dimensions | 48 x 96 x 78 mm |
| Panel Cutout | 45 x 92 mm |

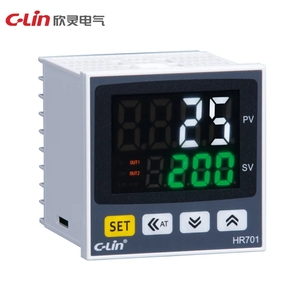

HR701
| Parameter | Specification |
|---|
| Input Signal | Thermocouple K, E, J; RTD Pt100 |
| Dimensions | 72 x 72 x 78 mm |
| Panel Cutout | 68 x 68 mm |
