HB Series intelligent temperature controllers are panel instruments for heating equipment and machine temperature-control loops. The series shares configurable thermocouple/RTD input and relay/PID/SSR drive control, while the individual models differ by panel size, alarm configuration and optional communication or transmission functions.
Common Parameters
| Parameter | Specification |
|---|
| Power Supply | AC100-240V |
| Input Signal | Thermocouple K, E, J; RTD Pt100, Cu50 |
| Control Mode | Two-position relay on/off control, PID relay on/off control or PID SSR drive voltage control |
| Typical Use | Temperature control for extruders, reflow soldering machines, shoe machines and similar heating equipment |

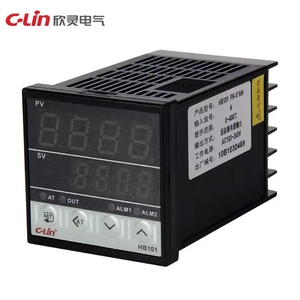

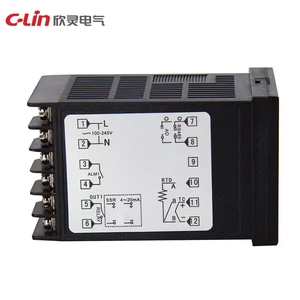

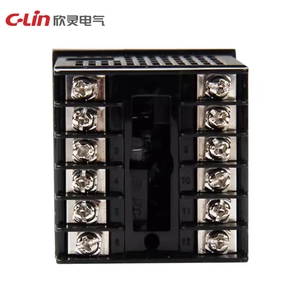

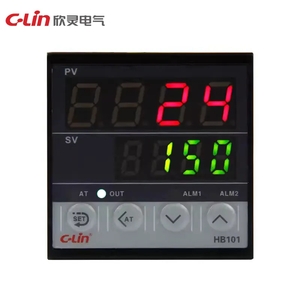

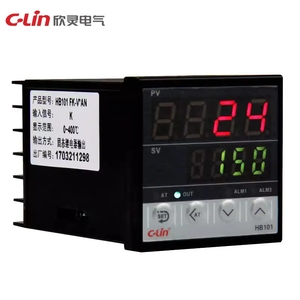

HB101
| Parameter | Specification |
|---|
| Alarm Output | One alarm relay contact output |
| Additional Function | RS485 communication option |
| Dimensions | 48 x 48 x 78 mm |
| Panel Cutout | 45 x 45 mm |

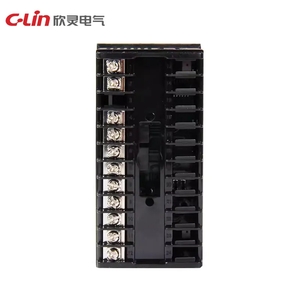

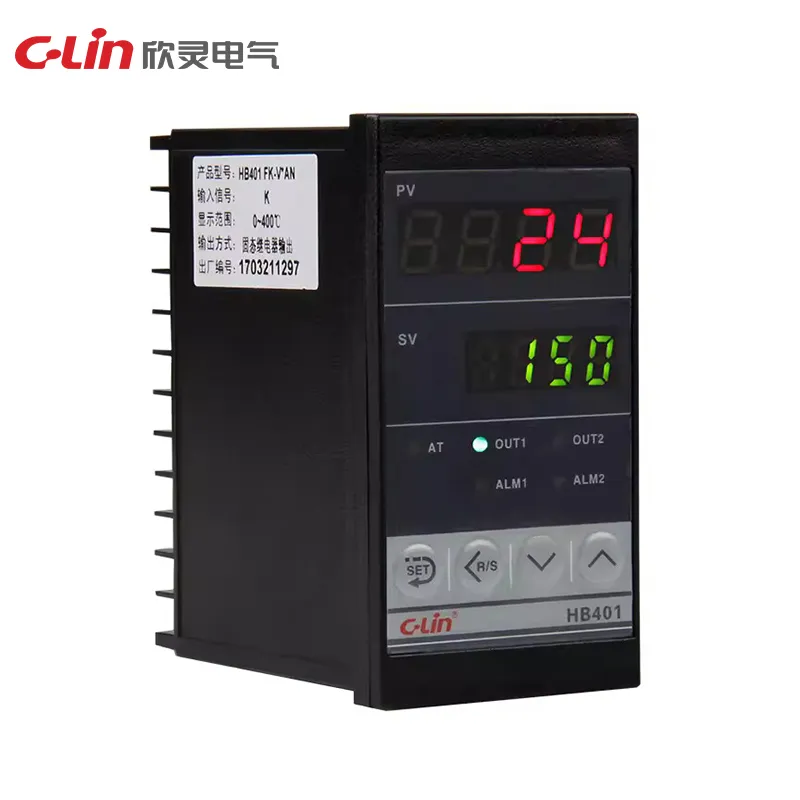

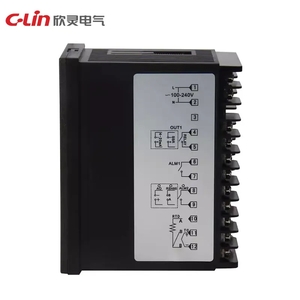

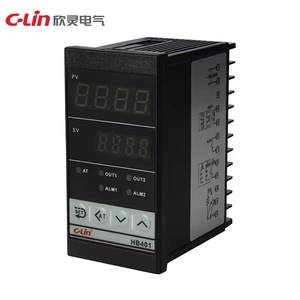

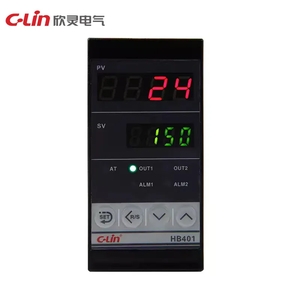

HB401
| Parameter | Specification |
|---|
| Alarm Output | One or two alarm relay contact outputs |
| Additional Function | Communication and transmission functions |
| Dimensions | 48 x 96 x 78 mm |
| Panel Cutout | 45 x 92 mm |

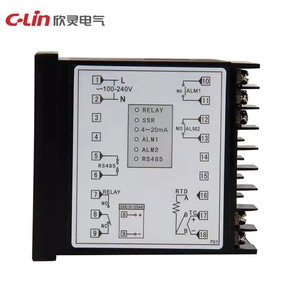

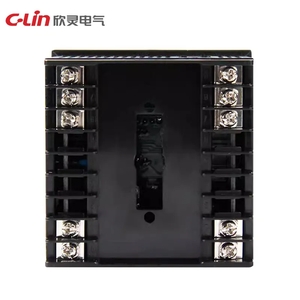

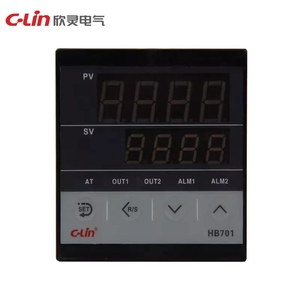

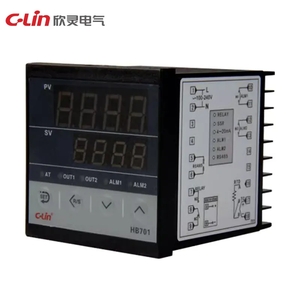

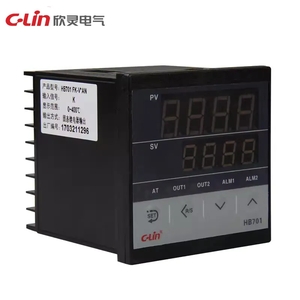

HB701
| Parameter | Specification |
|---|
| Alarm Output | One or two alarm relay contact outputs |
| Additional Function | Communication and transmission functions |
| Dimensions | 72 x 72 x 78 mm |
| Panel Cutout | 68 x 68 mm |

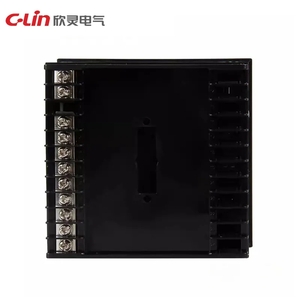

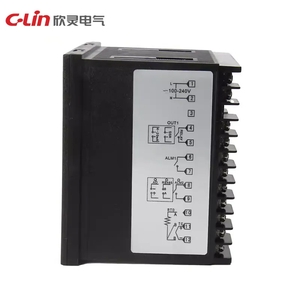

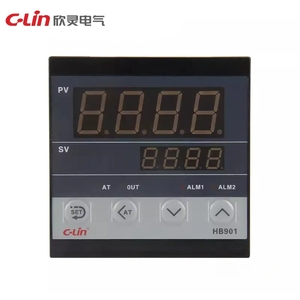

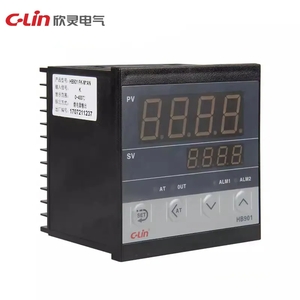

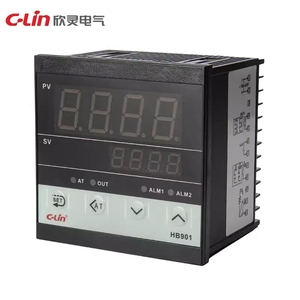

HB901
| Parameter | Specification |
|---|
| Alarm Output | One or two alarm relay contact outputs |
| Additional Function | Communication and transmission functions |
| Dimensions | 96 x 96 x 78 mm |
| Panel Cutout | 92 x 92 mm |
