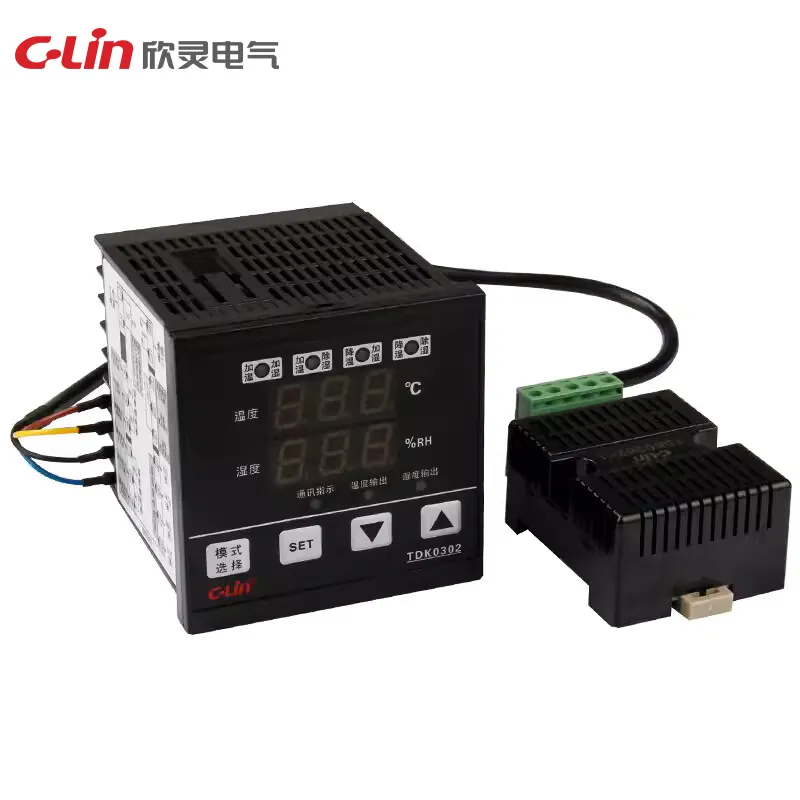

TDK Series intelligent temperature and humidity controllers are used in panels that need coordinated temperature and humidity monitoring. The controller supports heating, cooling, humidifying and dehumidifying modes, with relay outputs for both temperature and humidity control.
| Parameter | Specification |
|---|---|
| Model | TDK |
| Temperature Measurement | -40.0 to 99.9 deg C |
| Humidity Measurement | 0 to 99.9%RH |
| Measurement Error | Temperature: +/-0.5% FS or less; humidity: +/-4.5% FS or less |
| Control Modes | Heating and humidifying, heating and dehumidifying, cooling and humidifying, cooling and dehumidifying |
| Control Output | One temperature relay contact and one humidity relay contact |
| Contact Capacity | 3A AC250V resistive load |
| Power Supply | AC/DC100-240V |
| Additional Functions | C4 RS485 module option; B 4-20mA transmission output option |
| Dimensions | 72 x 72 x 78 mm |
| Panel Cutout | 68 x 68 mm |
| Installation Method | Panel mounting |
