Intelligent Pump Controller

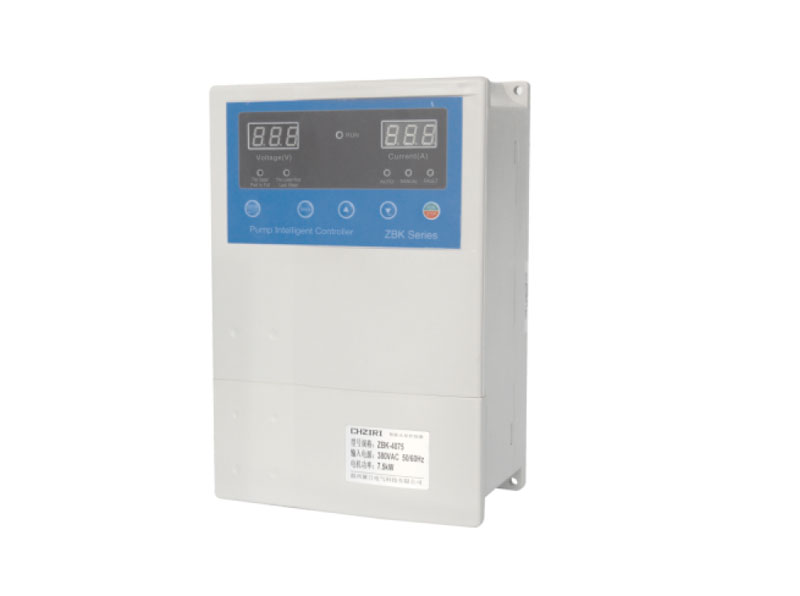

ZBK Intelligent Pump Controller

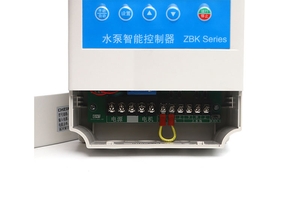

ZBK Controller Terminal Compartment

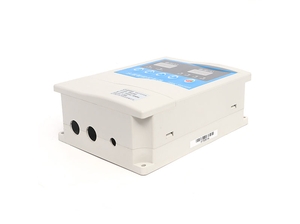

ZBK Controller Side View

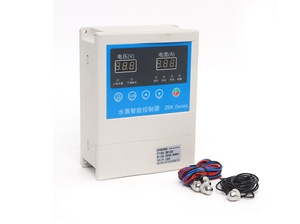

ZBK Controller with Level Probes

Description

Overview

The ZBK intelligent pump controller combines upper- and lower-water-level sensing with automatic and manual control. The models cover single-phase 220V and three-phase 380V pump motors from 0.37kW to 15kW.

Control and protection

  • Automatic or manual operating mode with upper- and lower-level inputs.
  • Phase-loss, overload, no-load, overvoltage and undervoltage protection.
  • Adjustable no-load restart time from 1-999 minutes, fault memory and anti-rust cycling.
  • AC digital probe detection for upper-pool, lower-pool and constant-pressure connection arrangements.

Selection and installation

Choose the controller by motor power and supply voltage, then use the applicable connection diagram for the water source, storage tank and pressure-switch arrangement.

Technical data

Model selection and dimensions

Model

Applicable power（kW）

Voltage（V）

Dimension(Unit: mm)

Figure

H

H1

W

W1

D

d

ZBK-2022

0.37-2.2 kW

220V

200

188

150

138

73

Ф5

Fig.1

ZBK-4055

0.75-5.5 kW

380V

300

286

200

186

125

Ф6.5

Fig.2

ZBK-4075

7.5 kW

ZBK-4110

11 kW

ZBK-4150

15 kW

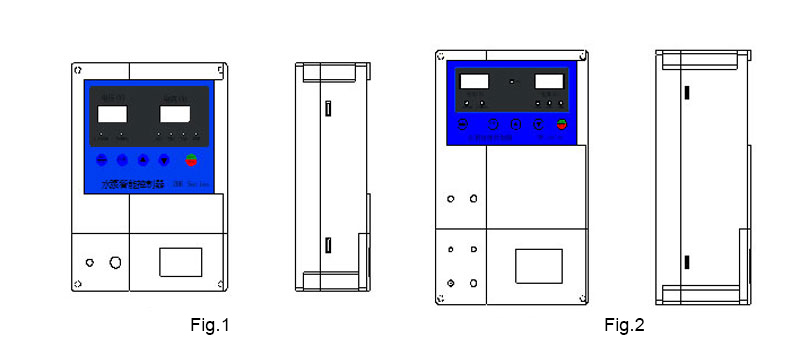

ZBK controller outline and mounting dimensions for the listed enclosure sizes.
ZBK controller outline and mounting dimensions for the listed enclosure sizes.

Drawings and connection details

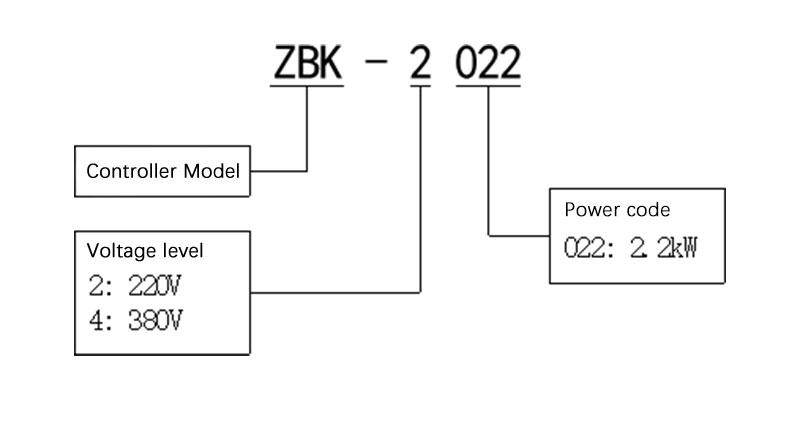

ZBK model-code structure for voltage class and motor power.
ZBK model-code structure for voltage class and motor power.

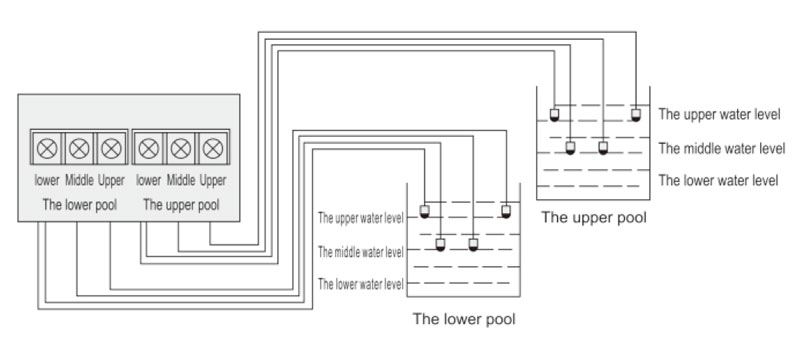

Upper- and lower-pool water-supply connection with level probes.
Upper- and lower-pool water-supply connection with level probes.

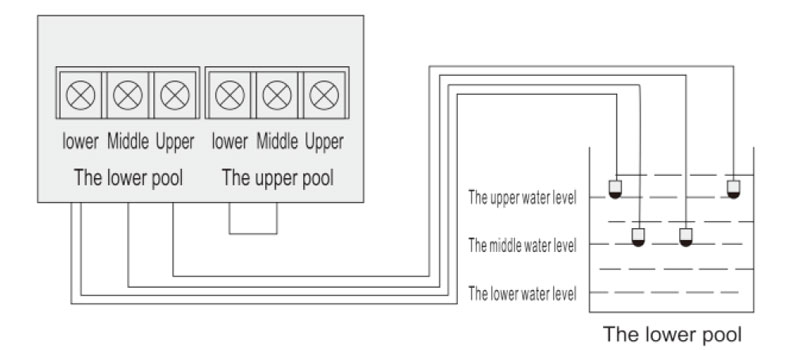

Lower-pool drainage connection with high, middle and low level probes.
Lower-pool drainage connection with high, middle and low level probes.

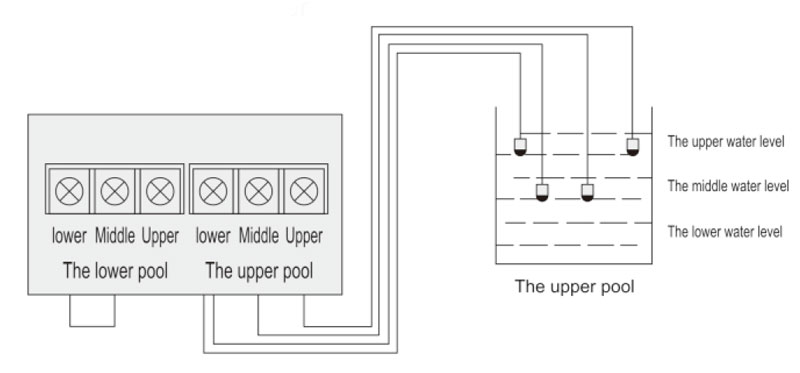

Upper-pool water-supply connection with high, middle and low level probes.
Upper-pool water-supply connection with high, middle and low level probes.

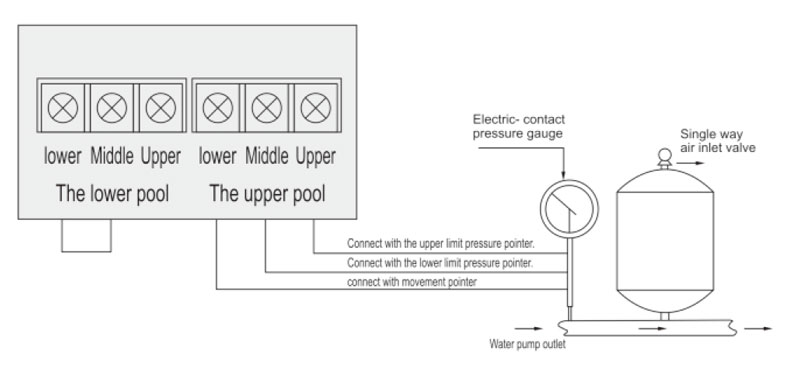

Constant-pressure pump connection using an electric contact pressure gauge.
Constant-pressure pump connection using an electric contact pressure gauge.
