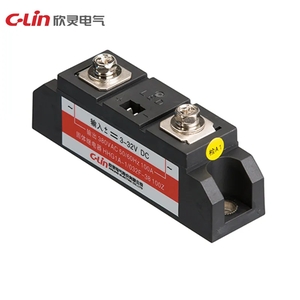

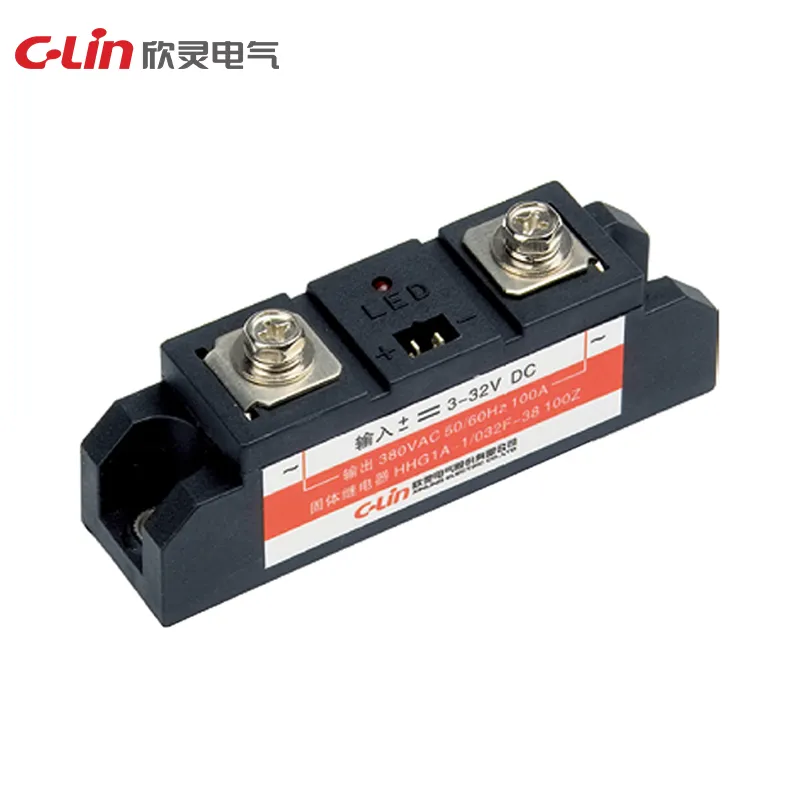

The HHG1C Series is an industrial high-voltage solid-state relay for AC load switching up to the 1200VAC class. It uses a DC control input and a bolt-mounted power module, with current-rating options covering medium to high-current control cabinets.
| Model / specification | HHG1C |
|---|---|
| Control voltage | 3-32VDC |
| Control current | 5-25mA |
| Load voltage code | 120: 60-1200VAC |
| Load current | 60A, 80A, 100A, 120A, 150A, 200A, 250A, 300A, 350A, 400A |
| On-state voltage drop | AC ≤1.6VAC |
| On-off time | AC ≤10ms |
| Off-state leakage current | AC ≤10mA |
| Dielectric withstand voltage | ≥2500VAC |
| Ambient temperature | -30°C to 80°C |
| Dimensions | 60A-150A: 94×25×38mm; 200A-350A: 94×34×43mm; 400A: 95×39×43mm |
| Installation | Bolt installation |

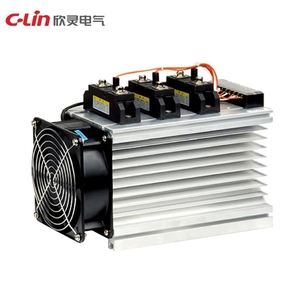

| Thermal instruction | Use a heat sink above 5A; use forced-air or water cooling above 80A |
