Inductive Sensor LJE/LJE-W I Series for Proximity Sensors

Description

The LJE / LJE-W I Series is an inductive sensor range for detecting metal targets in position and machine-control applications. It combines cylindrical LJE body sizes with LJE-W wide-body versions, sharing the same output and environmental platform while differing by sensing distance and target size.

Common Parameters

Detection type	Inductive metal detection
Supply voltage	DC10-30V for DC NPN, PNP and DC 2-wire versions; AC90-250V for AC 2-wire versions where listed
Operating current	≤200mA
Residual voltage	≤1.5V for NPN; ≤2.5V for PNP; ≤4V for DC 2-wire; 7V for AC 2-wire
Protection circuit	DC polarity and overcurrent protection; AC surge absorption protection
Indicator	Green action indicator
Operating temperature	-25°C to 70°C, no icing or condensation
Storage temperature	-40°C to 85°C, no icing or condensation
Humidity	35-95%, no condensation

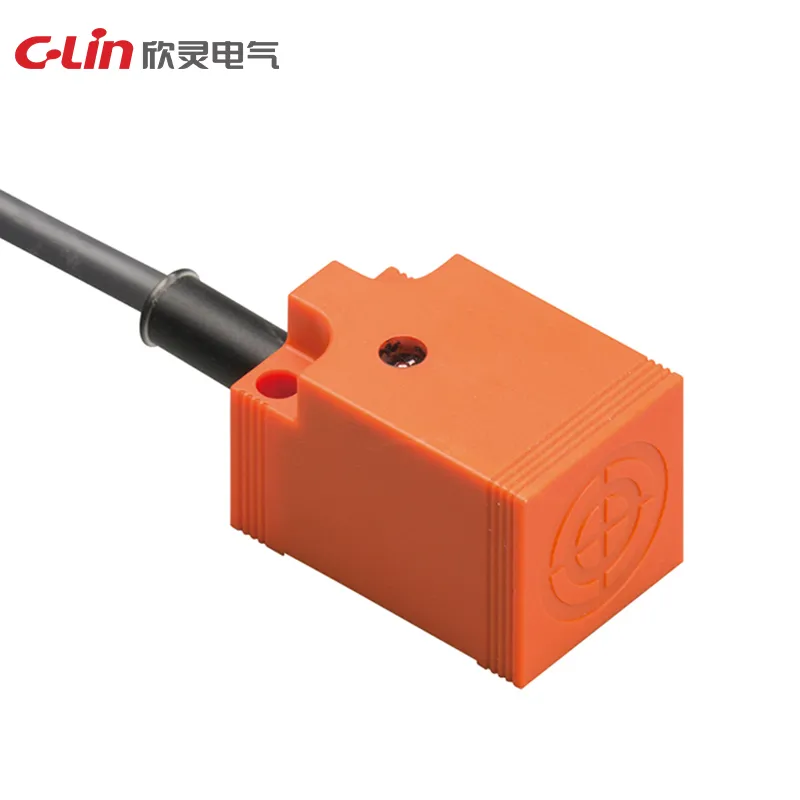

LJE

Detection distance	5mm, 8mm, 10mm or 15mm depending on body version
Setting distance	0-4.25mm, 0-6.8mm, 0-8.5mm or 0-12.75mm
Standard test object	20×20×1mm, 25×25×1mm, 30×30×1mm or 45×45×1mm iron target

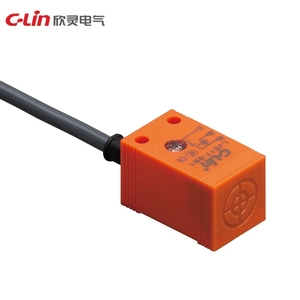

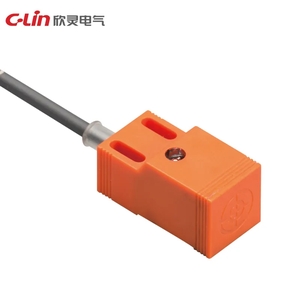

LJE17

Detection distance	5mm
Setting distance	0-4.25mm
Standard test object	20×20×1mm iron target

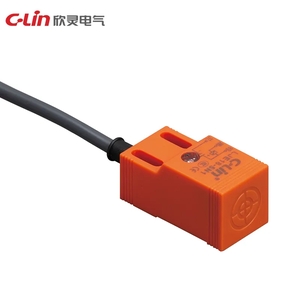

LJE18

Detection distance	5mm or 8mm
Setting distance	0-4.25mm or 0-6.8mm
Standard test object	20×20×1mm or 25×25×1mm iron target

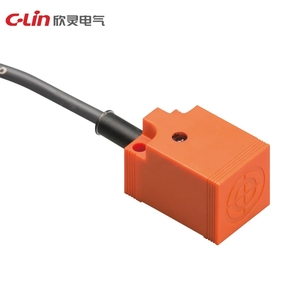

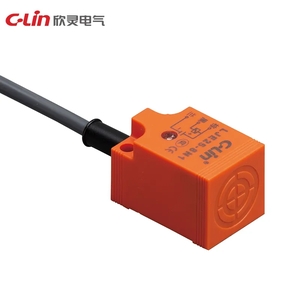

LJE25

Detection distance	8mm or 10mm
Setting distance	0-6.8mm or 0-8.5mm
Standard test object	25×25×1mm or 30×30×1mm iron target

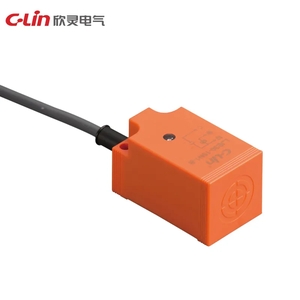

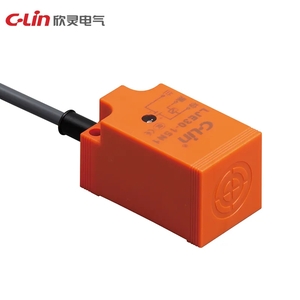

LJE30

Detection distance	15mm
Setting distance	0-12.75mm
Standard test object	45×45×1mm iron target

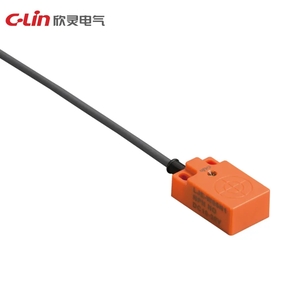

LJE-W5

Detection distance	5mm
Setting distance	0-4.25mm
Standard test object	20×20×1mm iron target
Response frequency	500Hz for N-type / P-type versions

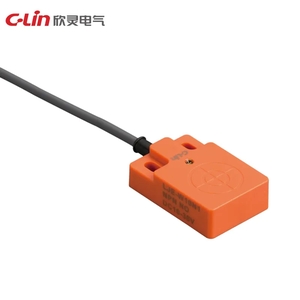

LJE-W10

Detection distance	8mm
Setting distance	0-6.8mm
Standard test object	25×25×1mm iron target
Response frequency	500Hz for N-type / P-type versions

Documents

Inductive Sensor LJE LJE-W I Series Datasheet.pdf
