Independently Operated Piezo Switch

Series Part Number

Part Number:	OCP	16	A0	R1	F	A	NO		B	S
Explanation:	Series OCP - Independently operated piezo switch	Switch Size 16 - 16mm 19 - 19mm 22 - 22mm 25 - 25mm	Colours / Materials A0 - Natural anodized aluminum A1 - Blue anodized aluminum A2 - Black anodized aluminum A3 - Green anodized aluminum A5 - Gold anodized aluminum A6 - Red anodized aluminum B - Stainless steel 316L	Operator R1 - Flat operator, height 4.5mm; available with illuminated ring on 16mm only R2 - Flat operator, height 3.00mm; available with illuminated ring on 19mm only RY - With chamfer, operator height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only RZ - Flat operator, height 4.5mm (.177in); available with thin or large illuminated ring on 22mm and 25mm only Blank - Chamfer, operator height: 16mm=2.00mm; 19mm=3.00mm The operator can be customized.	Terminals F - Flying leads X - Cable C - Connector The terminals can be customized.	Type of Illumination / Voltage Blank - Non-illuminated A - 13.5 large ring 5VDC N - 13.5 large ring 12VDC K - 13.5 large ring 24VDC P - 16.5 thin ring 5VDC J - 16.5 thin ring 12VDC Y - 16.5 thin ring 24VDC P, J and Y are for 22mm and 25mm only.	Switch Status NO - Normally open NC - Normally closed	Switch Function Blank - Latching or request	LED Colours Blank - Non-illuminated B - Blue G - Green R - Red Y - Yellow W - White RG - Red/green RY - Red/yellow RB - Red/blue RW - Red/white GB - Green/blue GY - Green/yellow GW - Green/white BY - Blue/yellow BW - Blue/white YW - Yellow/white	LED Function S - Independent C - Output indicator

Description

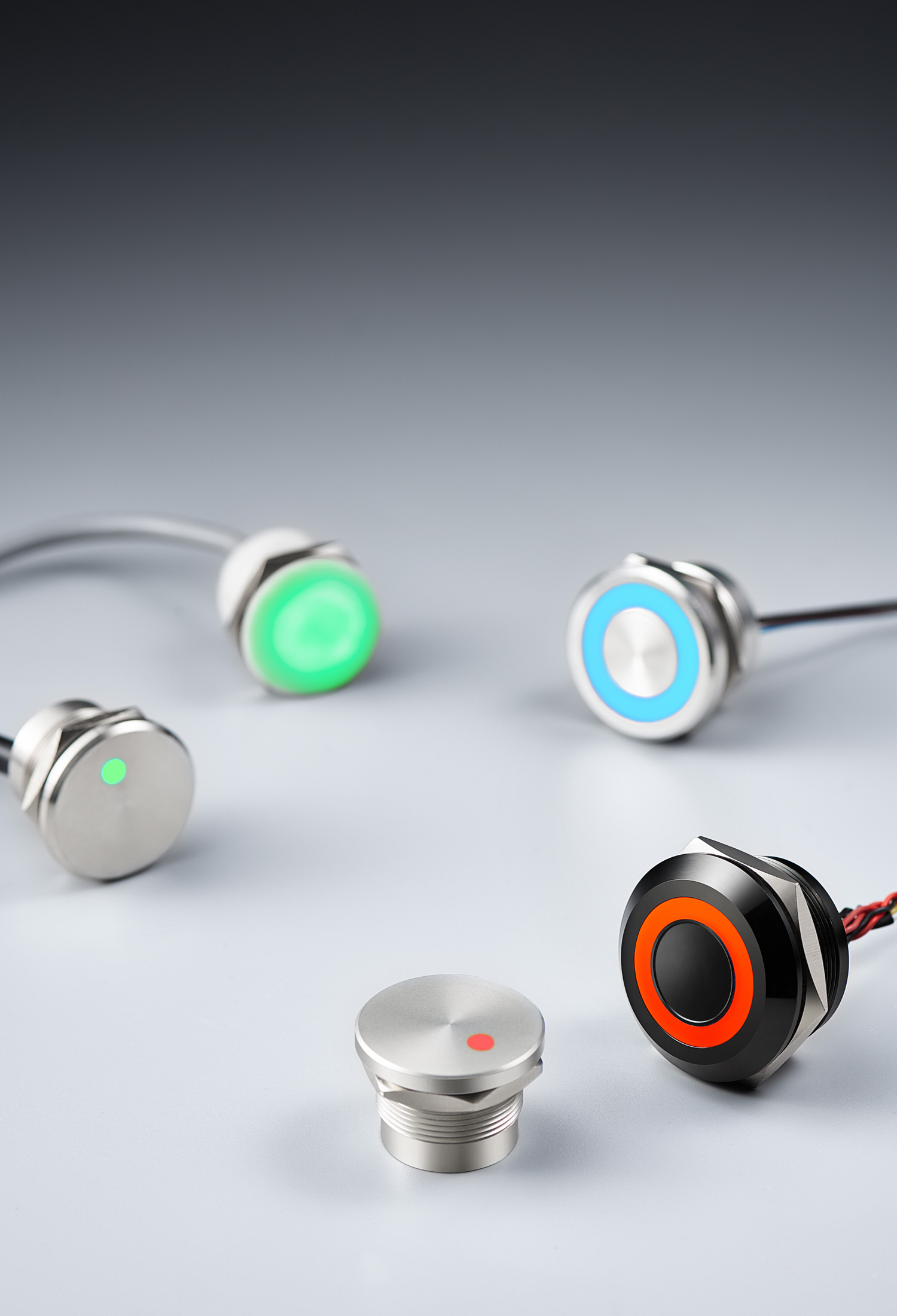

The Independently Operated Piezo Switch is a sealed solid-state switch designed for reliable integration where the output circuit needs independent operation. It combines a flat piezo actuator, long service life, and robust environmental sealing for demanding equipment interfaces.

Key Features

Momentary or latching function options
SPST N.O. or SPST N.C. contact arrangement
5-60V DC operating voltage range
400mA switching current
More than 50 million operating cycles
IP69K sealing at the front and back
Aluminium 6061 T651 or stainless steel 316L housing options
Non-illuminated or illuminated versions available

Technical Data

Voltage	5-60V DC
Switching current	400mA
Pulse duration	125-300ms
Rated breaking capacity	1W
Actuating force	3-5N
Connection	Wires
Operating temperature	-40°C to 75°C standard
IP protection	IP69K front and back
Impact protection	IK06

Wiring Diagrams

Independently operated piezo switch wiring diagrams
