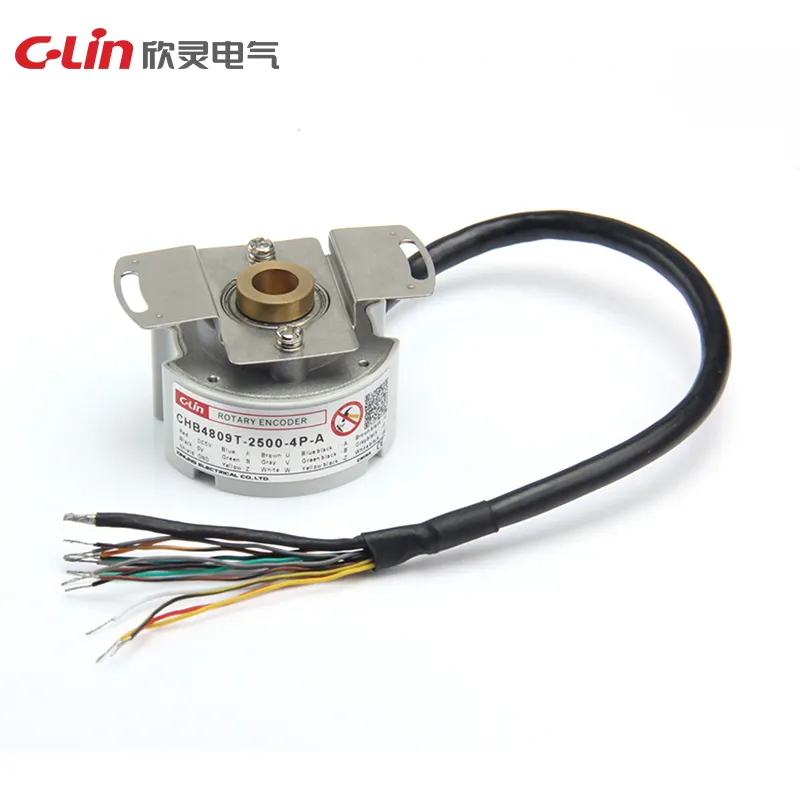

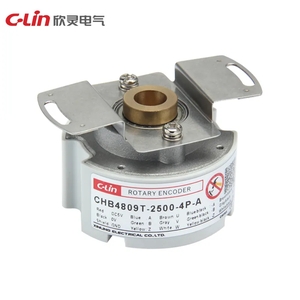

CHB48T is an incremental encoder for speed, position, angle and length feedback in servo motors, robots and automation equipment. It uses a 48mm body, 9mm taper hole and ABZUVW output phases for motor feedback applications.
| Parameter | Specification |
|---|---|
| Model | CHB48T |
| Example Specification | CHB4809T-2500-4P-A |
| Main Dimensions | 48mm outer diameter; 9mm taper hole |
| Power Supply | DC5V +/-10%; 5V +/-0.25V listing also provided |
| Magnetic Pole Pairs | 2P, 3P, 4P, 5P |
| Pulse Options | 500, 1000, 2000, 2500, 5000 |
| Output Phase | A, B, Z, U, V, W and inverse phases |
| Output Method | AM26C31I drive output |
| Current Consumption | 60mA or less |
| Output Voltage | VH greater than 3.4V; VL less than 3.4V |
| Termination Mode | G side-entry cable |
| Response Frequency | 0-300kHz |
| Typical Use | Servo motors, robots, automation and semi-automation equipment |
