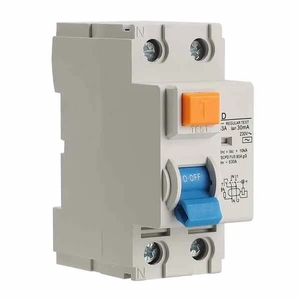

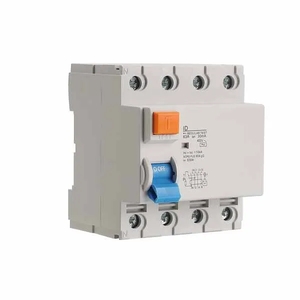

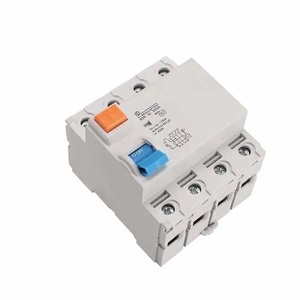

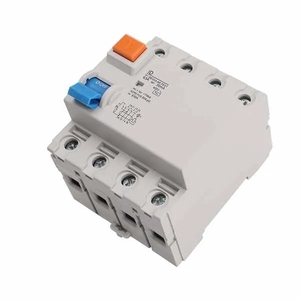

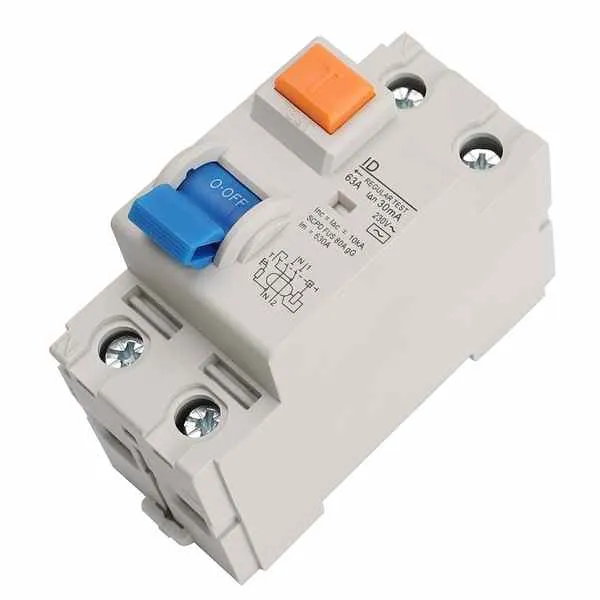

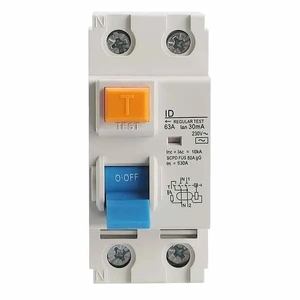

ID RCCB devices are DIN rail residual current circuit breakers for leakage-current protection in AC distribution circuits. The range includes 2P and 4P product versions for single-phase and three-phase distribution arrangements.
| Number of poles | 2P, 4P |
|---|---|
| Breaking capacity | 6kA |
| Rated current | 16A, 25A, 40A, 63A, 80A, 100A |
| Rated voltage | AC 230/240V for 2P, AC 400/415V for 4P |
| Rated residual operating current | 30mA, 100mA, 300mA, 500mA |
| Residual current trip characteristics | Type A, Type AC |
| Connection capacity | Up to 25mm2 |
| Degree of protection | IP20 |
