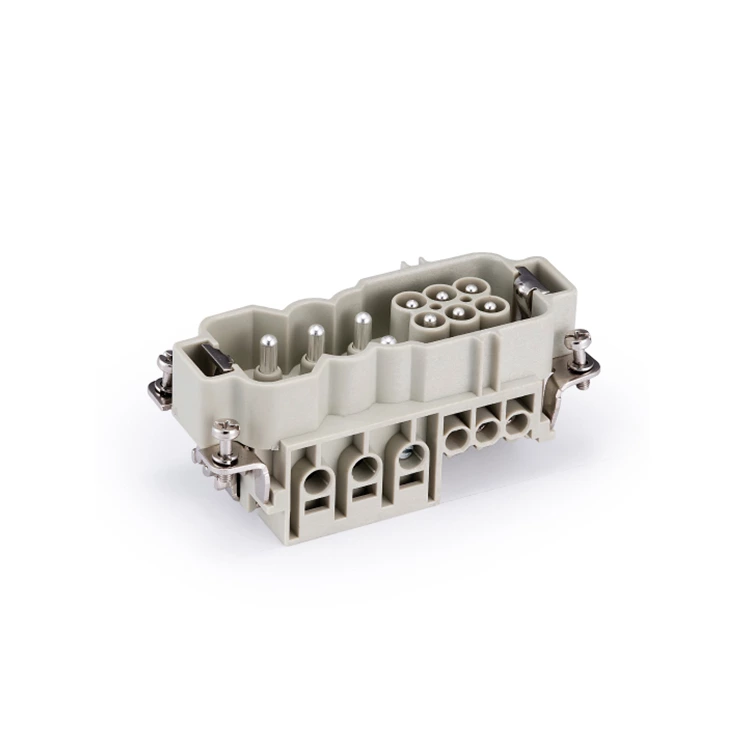

HWK-006/6 hybrid inserts combine six power contacts, six signal contacts and protective earth for H16B hoods and housings. Both circuit groups use screw terminals. Male M and female F versions have separate outline and contact-arrangement drawings.
Models and contact combination
| Male insert | Female insert | Contacts | Enclosure platform |
|---|
| SO-HWK-006/6-M | SO-HWK-006/6-F | 6 power + 6 signal + PE | H16B |
Power and signal ratings
| Property | Power contacts | Signal contacts |
|---|
| Contact count | 6 | 6 |
|---|
| Rated current | 40A | 16A |
|---|
| Rated voltage | 690V | 400V |
|---|
| Rated impulse voltage | 8kV | 6kV |
|---|
| Pollution degree | 3 | 3 |
|---|
| Rated voltage according to UL/CSA | 600V | 600V |
|---|
| Contact resistance | ≤0.3mΩ | ≤1mΩ |
|---|
Conductor ranges and tightening
| Circuit | Termination | Conductor cross-section | Wire size | Tightening torque |
|---|
| Power | Screw | 4-10mm² | 12-8AWG | 3N·m for 4mm², 6mm² and 10mm² |
| Signal | Screw | 1-2.5mm² | 18-14AWG | 0.5N·m |
Materials and operating limits
| Property | Specification |
|---|
| Contact material | Copper alloy |
|---|
| Contact finish | Hard-silver plated |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Contact layout and installation drawings
The drawings distinguish the six larger power positions from the six smaller signal positions and identify PE and mounting geometry. Check the male or female contact numbering before arranging the two circuit groups.
