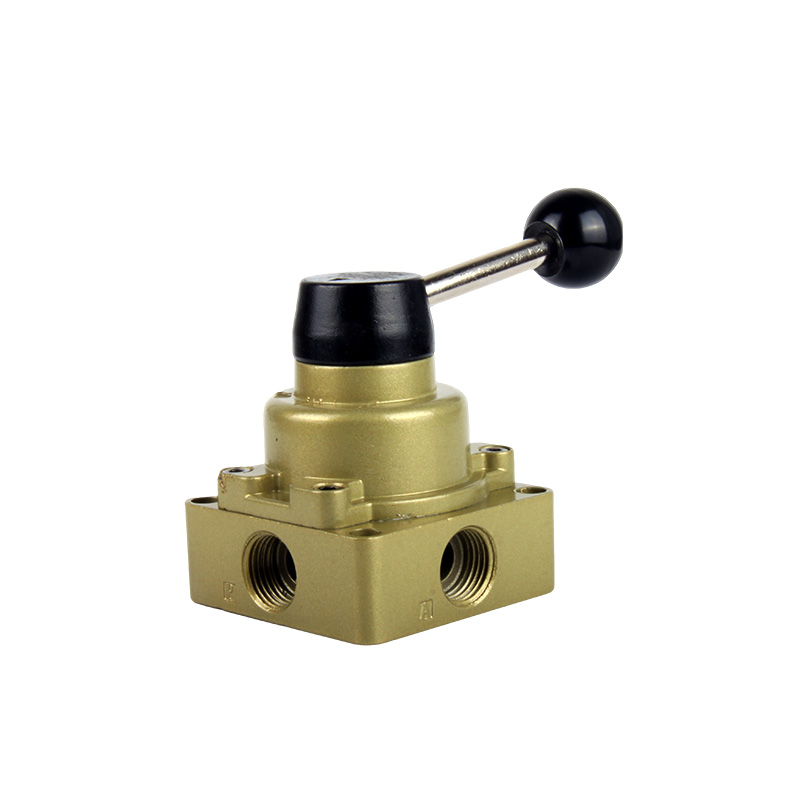

HV-02, HV-03 and HV-04 Hand Rotary Air Valves

Series Part Number

Part Number: HV - 02
Explanation:

Series

HV - Hand rotary pneumatic valve

Port Size

02 - 1/4in
03 - 3/8in
04 - 1/2in

Description

HV hand rotary valves switch compressed-air flow with a direct-acting lever mechanism. The HV-02, HV-03 and HV-04 share an aluminum alloy body and NBR seals, with three port sizes for matching the valve to the pneumatic circuit.

Model selection and ordering

Order by the HV prefix and connection code, for example HV-02 for the 1/4″ version.

ModelPort codePort size
HV-02021/4″
HV-03033/8″
HV-04041/2″

Operating specifications

ParameterHV-02 / HV-03 / HV-04
Working mediumAir
ActuationDirect-acting hand rotary mechanism
Working pressure0-0.8MPa
Working temperature0-60°C
LubricationNot required
BodyAluminum alloy
O-ringNBR

Valve function

The valve symbol identifies the pressure port P, exhaust port R and working ports A and B. Use the indicated flow paths when arranging the pneumatic connections.

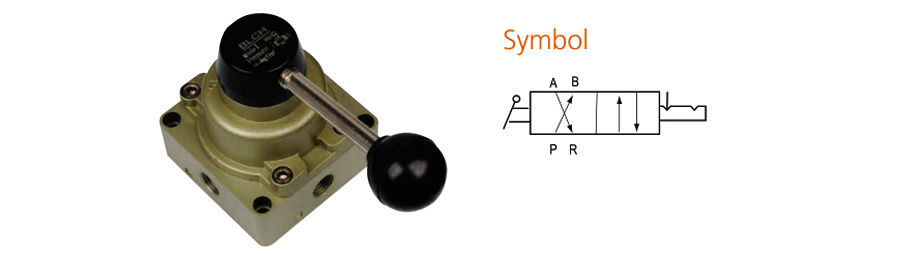

HV hand rotary valve and directional flow symbol with ports A, B, P and R
HV rotary lever configuration and directional valve symbol.
