| Part Number: | HSV | - | 06 | SF |
|---|---|---|---|---|
| Explanation: |
Series and Body Material HSV - Aluminum-body hand slide valve |
Port Size 06 - 1/8in |
Thread Connections SS - Male threads at both ends |
HSV and BHSV slide valves provide manual switching of compressed-air lines through an external sliding sleeve. Choose aluminum alloy or brass construction, then match the connection size and male/female thread arrangement to the installation.
| Size code | HSV model variants | Port size |
|---|---|---|
| 06 | HSV-06SF / HSV-06SS / HSV-06FF | 1/8″ |
| 08 | HSV-08SF / HSV-08SS / HSV-08FF | 1/4″ |
| 10 | HSV-10SF / HSV-10SS / HSV-10FF | 3/8″ |
| 15 | HSV-15SF / HSV-15SS / HSV-15FF | 1/2″ |
| Code | Meaning |
|---|---|
| HSV | Aluminum alloy body |
| BHSV | Brass body |
| SS | Male thread at both ends |
| SF | One male and one female threaded connection |
| FF | Female thread at both ends |

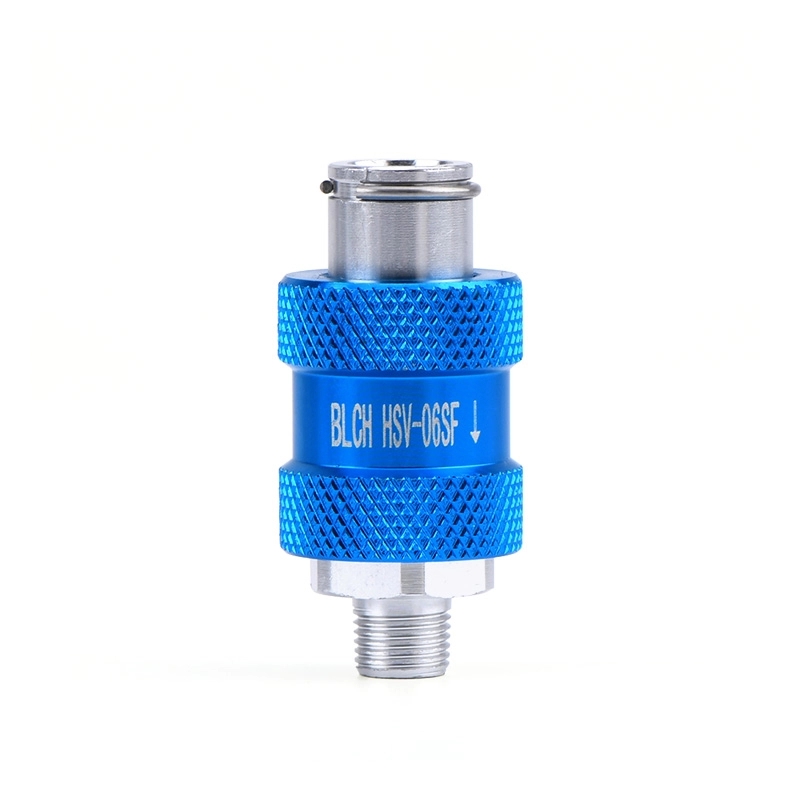

For example, HSV-06SF identifies an aluminum alloy valve with 1/8″ male and female connections.
| Parameter | Specification |
|---|---|
| Working medium | Air |
| Operating pressure range | 0-0.8MPa |
| Working temperature | 0-70°C |
| Body options | HSV: aluminum alloy; BHSV: brass |
| O-ring material | NBR |
