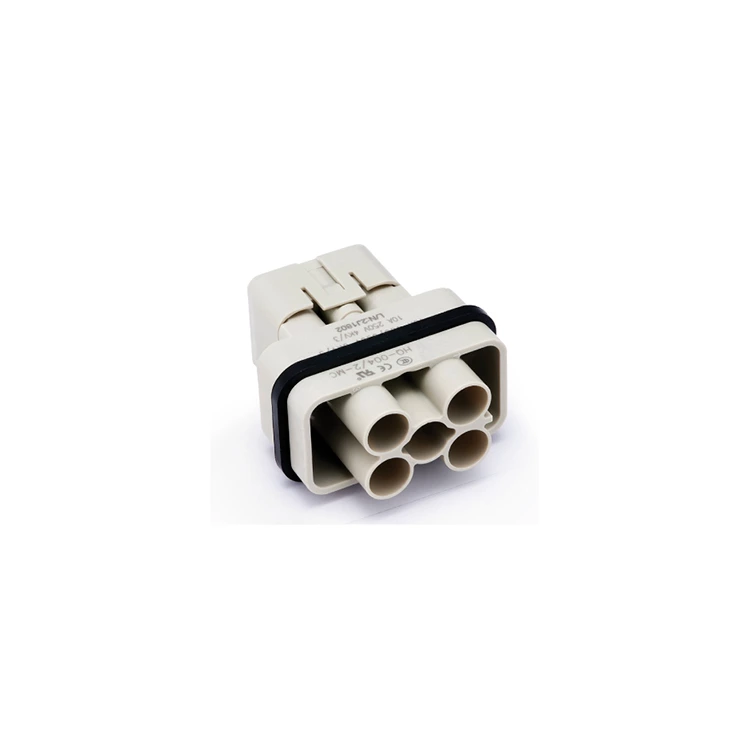

HQ-004/2 hybrid inserts combine four power contacts, two signal contacts and protective earth in the HC enclosure platform. Male MC and female FC versions use crimp connections for power and signal conductors. Select contacts and wires separately for the two circuit types.
Models and contact arrangement
| Male insert | Female insert | Contact combination | Enclosure platform |
|---|
| SO-HQ-004/2-MC | SO-HQ-004/2-FC | 4 power + 2 signal + PE | HC |
Power and signal ratings
| Property | Power contacts | Signal contacts |
|---|
| Contact count and numbering | 4, positions 1-4 | 2, positions 11 and 12 |
|---|
| Rated current | 40A | 10A |
|---|
| Rated voltage | 400V conductor-to-earth / 690V conductor-to-conductor | 250V |
|---|
| Rated impulse voltage | 6kV | 4kV |
|---|
| Pollution degree | 3 | 3 |
|---|
| Rated voltage according to UL/CSA | 600V | 250V |
|---|
Conductor connections
| Circuit | Termination | Conductor cross-section | Wire size |
|---|
| Power | Crimp | 1.5-6mm² | 16-10AWG |
| Signal | Crimp | 0.14-2.5mm² | 26-14AWG |
| Protective earth | Screw | 2.5mm² | 14AWG |
Contact and insert materials
| Property | Specification |
|---|
| Contact material | Copper alloy |
|---|
| Contact finish options | Hard-silver plated or hard-gold plated |
|---|
| Contact resistance | ≤0.3mΩ |
|---|
| Insulation resistance | ≥1010Ω |
|---|
| Insert material and colour | Polycarbonate, RAL 7032 light grey |
|---|
| Temperature range | -40°C to +125°C |
|---|
| Flammability according to UL 94 | V0 |
|---|
| Mechanical life | ≥500 mating cycles |
|---|
Contact layout and outline drawings
The individual male and female drawings identify power positions 1-4, signal positions 11 and 12, and the central PE contact. Use the drawing for the selected gender when checking the mating face and wiring orientation. Crimping and contact-removal tools are required for the removable power and signal contacts.
