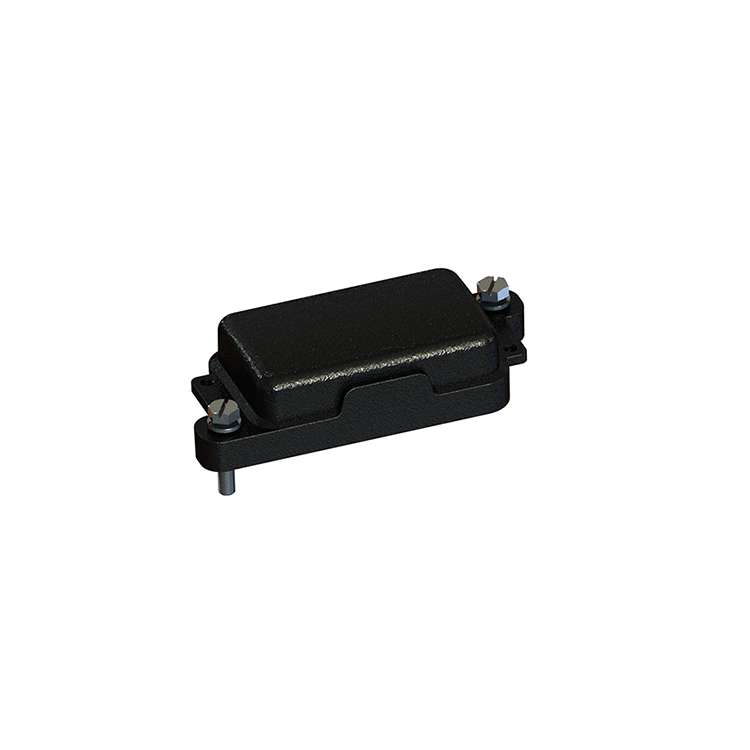

MCV-2S covers close the matching HP/H housing interface using two locking screws. The range includes 6B, 10B, 16B and 24B sizes. Select the cover by housing size and verify the screw arrangement and sealing interface.
| Property | Specification |
|---|---|
| Cover material | Die-cast aluminium |
| Colour | RAL 9005 black |
| Locking method | Two screw locks |
| Locking screw material | Stainless steel |
| Seal | NBR |
| Limiting temperature | -40°C to +125°C |
| Flammability | UL 94 V0 for applicable non-metallic components |
| Protection | IP68/IP69K when correctly sealed and screw-locked to the matching housing |
| Retention | Securing tether with an 18mm loop diameter |
| Model | Housing size | Overall length | Overall width | Body height |
|---|---|---|---|---|
| HP6B/H-MCV-2S | 6B | 133mm | 58mm | 31mm |
| HP10B/H-MCV-2S | 10B | 146mm | 58mm | 31mm |
| HP16B/H-MCV-2S | 16B | 166mm | 58mm | 31mm |
| HP24B/H-MCV-2S | 24B | 193mm | 57.50mm | 31mm |
Outline dimensions exclude the tether. The height excludes projecting screw shanks. Allow additional clearance for the tether, screw access and removal of the cover.
Keep the NBR sealing face clean, position the cover evenly and engage both locking screws with the matching housing. Route the tether clear of the seal and screw mechanism. Use the individual dimensional drawing to check the surrounding installation space.
